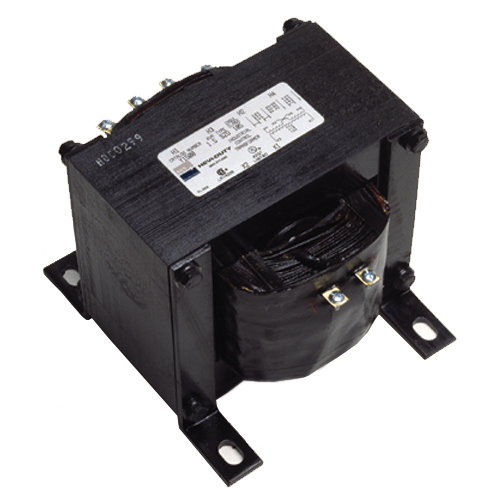

SolaHD SBE Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1.5 kVA, 50/60 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD SBE Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1.5 kVA, 50/60 Hz, 1 Phase
SKU59147
MFGR #Y1500
$/ea
The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load componets are electromagnetic devices.
The open style SBE Series provides voltage regulation in excess of NEMA recommendations without exceeding 55o crise. These higher power capacity transformers are the best choice when 80% or more of the load componets are electromagnetic devices.
Application SCR Variable Speed Drives ARRA Compliant Y Buy American Compliant Y Catalog Number Y1500 Connection Type Screw Country of Origin US Currency USD Dimensions 10 in L x 20 in W x 17 in H Enclosure Nema 3R with weather shield Enclosure Type NEMA 3R/Open EU RoHS Indicator Y Gross Weight Per Pack 42.0500 lb Gross Weight per Pack Metric 19.07 Gross Weight UOM Metric kg Height 17 in Height [Metric] 18.7960 cm KVA Rating 1.5 kVA Length 10 in Length [Metric] 19.5580 cm Mounting Mtg Width 5.75, Mtg Depth 6.38, Slot Size .44 x .69IN Mounting Type Panel Number Of Phases 1 Series SBE Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506/1561 File No. E25872CSA C22.2 No. 66 Temperature Rating 55 °C Type Open Style UNSPSC 39121026 UPC 11 78347256126 UPC 12 783472561261 Wattage 1,500 W Width 12.10 in Width [Metric] 30.7340 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 pH Power Rating 1.5 kVA Primary Voltage 240 480 V Secondary Voltage 120 VAC SCR Variable Speed Drives Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. Interleaved copper windings reduce I2R losses and maximize efficiency Copper wound Isolation minimizes load disturbances caused by the SCR drive Full capacity secondary neutral as required by the national electric code Full capacity secondary neutral as required by the NEC High quality silicon steel core 0.44 x 0.69 in slot 240x480, 230x460, 220x440 VAC primary volt 120/115/110 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SCR Variable Speed Drives |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | Y1500 |
| Connection Type | Screw |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 10 in L x 20 in W x 17 in H |
| Enclosure | Nema 3R with weather shield |
| Enclosure Type | NEMA 3R/Open |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 42.0500 lb |
| Gross Weight per Pack Metric | 19.07 |
| Gross Weight UOM Metric | kg |
| Height | 17 in |
| Height [Metric] | 18.7960 cm |
| KVA Rating | 1.5 kVA |
| Length | 10 in |
| Length [Metric] | 19.5580 cm |
| Mounting | Mtg Width 5.75, Mtg Depth 6.38, Slot Size .44 x .69IN |
| Mounting Type | Panel |
| Number Of Phases | 1 |
| Series | SBE |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506/1561 File No. E25872CSA C22.2 No. 66 |
| Temperature Rating | 55 °C |
| Type | Open Style |
| UNSPSC | 39121026 |
| UPC 11 | 78347256126 |
| UPC 12 | 783472561261 |
| Wattage | 1,500 W |
| Width | 12.10 in |
| Width [Metric] | 30.7340 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 pH |
| Power Rating | 1.5 kVA |
| Primary Voltage | 240 480 V |
| Secondary Voltage | 120 VAC |
| SCR Variable Speed Drives |
| Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| Copper wound |
| Isolation minimizes load disturbances caused by the SCR drive |
| Full capacity secondary neutral as required by the national electric code |
| Full capacity secondary neutral as required by the NEC |
| High quality silicon steel core |
| 0.44 x 0.69 in slot |
| 240x480, 230x460, 220x440 VAC primary volt |
| 120/115/110 VAC secondary volt |
