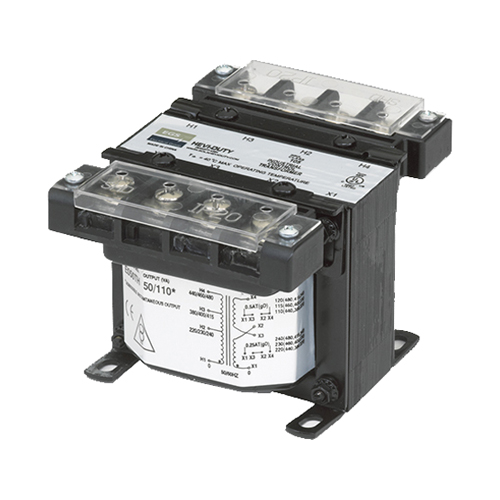

SolaHD International Industrial Control Transformer, 240/415/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD International Industrial Control Transformer, 240/415/480 VAC Primary, 120/240 VAC Secondary, 0.1 kVA, 50/60 Hz
SKU344522
MFGR #E100TH
Your Cost: $122.85/ea
List: Electromagnetic control componets demand inrush currents up to 10 times the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The International series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
Electromagnetic control componets demand inrush currents up to 10 times the transformers nominal rating without sacrificing secondary voltage stability beyond practical limits. The International series transformers fully comply with IEC and NEMA standards and are available with IEC touchproof covers (IP20).
Application Industrial ARRA Compliant N Buy American Compliant N Catalog Number E100TH Connection Type Screw Country of Origin VN Currency USD Dimensions 4.36 in L x 3.39 in W x 2.96 in H Enclosure IP20 Enclosure Type IP20 EU RoHS Indicator Y Gross Weight Per Pack 4.0500 lb Gross Weight per Pack Metric 1.84 Gross Weight UOM Metric kg Height 5.30 in Height [Metric] 13.4620 cm KVA Rating 0.1 Length 9.10 in Length [Metric] 23.1140 cm Mounting Heavy Gauge Steel Mounting Plate Mounting Type Surface Number Of Phases 1 Power Factor 50.00 PCT Series International Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant, CE IEC 61558-1, IEC 61558-2-2 Standards RoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66CE MarkedIEC 61558-1IEC 61558-2-2ANSI SpecifiedNMTBA/JIC Standard Temperature Rating 55 °C Type International Series Control: 50-750 VA. UNSPSC 39121026 UPC 11 78347200217 UPC 12 783472002177 Wattage 50 W Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 pH Power Rating 0.1 kVA Primary Voltage 240/415/480 Volt Primary VAC Secondary Voltage 120/240 Volt Secondar VAC Industrial Epoxy encapsulated for cooler operation. Interleaved copper windings to reduce impedance. 50/60 Hz. 55 DEG C Rise, 105 DEG C insulation system for harsh, heavy duty applications. Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards Epoxy encapsulated for cooler operation Interleaved copper windings to reduce impedance 55 deg C rise, 105 deg C insulation system for harsh, heavy duty applications Interleaved copper windings reduce I2R losses and maximize efficiency 55 deg C rise, 105 deg C insulation system to minimize heat Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity Mounting dimensions are compatible with similar control transformers Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) Heavy gauge steel mounting plate 240/415/480, 230/400/460, 220/380/440 VAC primary volt 120/240, 115/230, 110/220 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | E100TH |
| Connection Type | Screw |
| Country of Origin | VN |
| Currency | USD |
| Dimensions | 4.36 in L x 3.39 in W x 2.96 in H |
| Enclosure | IP20 |
| Enclosure Type | IP20 |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 4.0500 lb |
| Gross Weight per Pack Metric | 1.84 |
| Gross Weight UOM Metric | kg |
| Height | 5.30 in |
| Height [Metric] | 13.4620 cm |
| KVA Rating | 0.1 |
| Length | 9.10 in |
| Length [Metric] | 23.1140 cm |
| Mounting | Heavy Gauge Steel Mounting Plate |
| Mounting Type | Surface |
| Number Of Phases | 1 |
| Power Factor | 50.00 PCT |
| Series | International |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant, CE IEC 61558-1, IEC 61558-2-2 |
| Standards | RoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66CE MarkedIEC 61558-1IEC 61558-2-2ANSI SpecifiedNMTBA/JIC Standard |
| Temperature Rating | 55 °C |
| Type | International Series Control: 50-750 VA. |
| UNSPSC | 39121026 |
| UPC 11 | 78347200217 |
| UPC 12 | 783472002177 |
| Wattage | 50 W |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 0.1 kVA |
| Primary Voltage | 240/415/480 Volt Primary VAC |
| Secondary Voltage | 120/240 Volt Secondar VAC |
| Industrial |
| Epoxy encapsulated for cooler operation. Interleaved copper windings to reduce impedance. 50/60 Hz. 55 DEG C Rise, 105 DEG C insulation system for harsh, heavy duty applications. Exceeds IEC, NEMA, ANSI, NMTBA, JIC and automotive standards |
| Epoxy encapsulated for cooler operation |
| Interleaved copper windings to reduce impedance |
| 55 deg C rise, 105 deg C insulation system for harsh, heavy duty applications |
| Interleaved copper windings reduce I2R losses and maximize efficiency |
| 55 deg C rise, 105 deg C insulation system to minimize heat |
| Epoxy encapsulated to protect cores and coils against moisture, dirt and other contaminants |
| Meets or exceeds NEMA standard ST 1 and ANSI C89.1 for load inrush capability |
| Integrally molded, flame retardant (IEC 707/ISO class 1210) terminal blocks provide greater terminal contact area and improved conductivity |
| Mounting dimensions are compatible with similar control transformers |
| Secondary fuse holders (FB2X) included for 13/32 x 1-1/2 cartridges (fuses not included) |
| Heavy gauge steel mounting plate |
| 240/415/480, 230/400/460, 220/380/440 VAC primary volt |
| 120/240, 115/230, 110/220 VAC secondary volt |
