SolaHD™

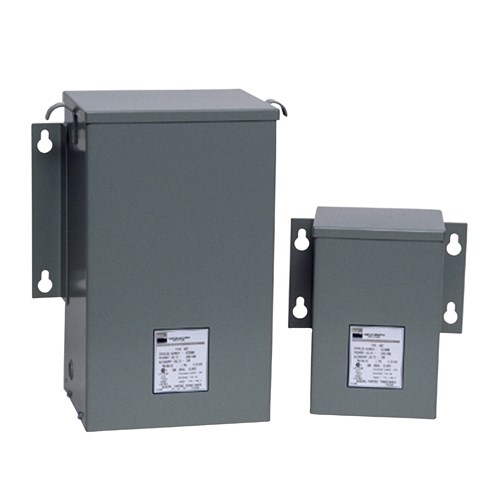

SolaHD HZ5000 HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 5 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HZ5000 HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 5 kVA, 50/60 Hz
SKU63855
MFGR #HZ5000
Your Cost: $2,016.46/ea
List: The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
Application The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. ARRA Compliant Y Buy American Compliant Y Catalog Number HZ5000 Connection Type Screw Country of Origin US Currency USD Dimensions 9 in L x 14 in W x 17 in H Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 133.0000 lb Gross Weight per Pack Metric 60.33 Gross Weight UOM Metric kg Height 13.50 in Height [Metric] 34.2900 cm KVA Rating 5 Length 17.00 in Length [Metric] 43.1800 cm Number Of Phases 1 Series HSZ Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 Temperature Rating 80 DEG Temperature Rise under full load °C Type HSZ Series Industrial Control Transformers UNSPSC 39121026 UPC 11 78347257075 UPC 12 783472570751 Wattage 3 kW Width 10.50 in Width [Metric] 26.6700 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 pH Power Rating 5 kVA Primary Voltage 240/480, 230/460, 220/440 Volt Primary VAC Secondary Voltage 120/115/110 Volt Secondary VAC The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) 80 deg C temperature rise under full load Copper windings Meets or exceeds NEMA regulation standards 240/480, 230/460, 220/440 VAC primary volt 120/115/110 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HZ5000 |
| Connection Type | Screw |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 9 in L x 14 in W x 17 in H |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 133.0000 lb |
| Gross Weight per Pack Metric | 60.33 |
| Gross Weight UOM Metric | kg |
| Height | 13.50 in |
| Height [Metric] | 34.2900 cm |
| KVA Rating | 5 |
| Length | 17.00 in |
| Length [Metric] | 43.1800 cm |
| Number Of Phases | 1 |
| Series | HSZ |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 |
| Temperature Rating | 80 DEG Temperature Rise under full load °C |
| Type | HSZ Series Industrial Control Transformers |
| UNSPSC | 39121026 |
| UPC 11 | 78347257075 |
| UPC 12 | 783472570751 |
| Wattage | 3 kW |
| Width | 10.50 in |
| Width [Metric] | 26.6700 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 5 kVA |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary VAC |
| Secondary Voltage | 120/115/110 Volt Secondary VAC |
| The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| 80 deg C temperature rise under full load |
| Copper windings |
| Meets or exceeds NEMA regulation standards |
| 240/480, 230/460, 220/440 VAC primary volt |
| 120/115/110 VAC secondary volt |
