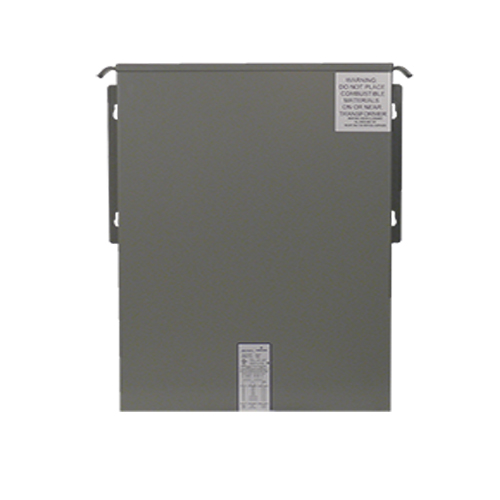

SolaHD HT79F3AS Non-Ventilated Encapsulated Automation Transformer, 480 VAC Delta Primary, 380Y/220 VAC Secondary, 3 kVA
Custom_Product_Images_Illustration
SolaHD HT79F3AS Non-Ventilated Encapsulated Automation Transformer, 480 VAC Delta Primary, 380Y/220 VAC Secondary, 3 kVA
SKU721412
MFGR #HT79F3AS
Your Cost: $1,206.76/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
ARRA Compliant Y Buy American Compliant Y Catalog Number HT79F3AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 13 in H x 16 in W x 9 in D Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 1 lb Housing Material Rolled Steel Maximum Amperage Rating 3.6/4.6 A Mounting Type Wall Series HT79 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 Temperature Rating 115 °C Type Non-Ventilated Encapsulated UNSPSC 39121027 UPC 11 78347200452 UPC 12 783472004522 Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 Power Rating 3 kVA Primary Voltage 480 VAC Secondary Voltage 380Y/220 VAC Conduit knockouts for side entry into wiring compartment Copper lead wire terminations Electro statically shielded for quality power on sizes 1 kVA and larger 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications Encapsulated enclosure for indoor and outdoor service Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) 3.6 A primary, 4.6 A secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HT79F3AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 13 in H x 16 in W x 9 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1 lb |
| Housing Material | Rolled Steel |
| Maximum Amperage Rating | 3.6/4.6 A |
| Mounting Type | Wall |
| Series | HT79 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 |
| Temperature Rating | 115 °C |
| Type | Non-Ventilated Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 78347200452 |
| UPC 12 | 783472004522 |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 3 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 380Y/220 VAC |
| Conduit knockouts for side entry into wiring compartment |
| Copper lead wire terminations |
| Electro statically shielded for quality power on sizes 1 kVA and larger |
| 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications |
| Encapsulated enclosure for indoor and outdoor service |
| Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) |
| 3.6 A primary, 4.6 A secondary |
