SolaHD™

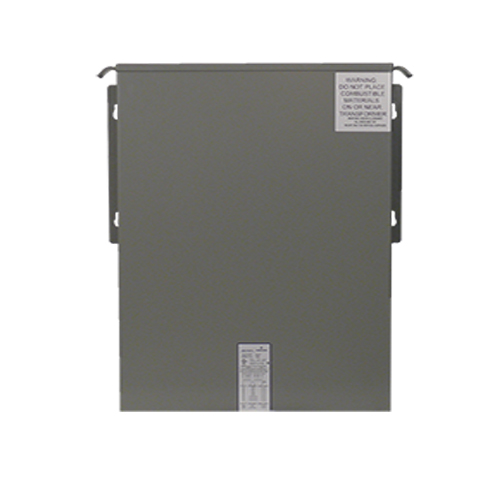

SolaHD HT5F45AS Non-Ventilated Automation Transformer, 480 VAC Delta Primary, 240Y/120 VAC Secondary, 45 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HT5F45AS Non-Ventilated Automation Transformer, 480 VAC Delta Primary, 240Y/120 VAC Secondary, 45 kVA, 60 Hz
SKU456846
MFGR #HT5F45AS
Your Cost: $5,700.78/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
ARRA Compliant Y Buy American Compliant Y Catalog Number HT5F45AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 29 in H x 25 in W x 12 in D Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 0.0920 lb Housing Material Rolled Steel Maximum Amperage Rating 54.2/108.3 A Mounting Type Floor Series HT5 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 Temperature Rating 115 °C Type Non-Ventilated UNSPSC 39121027 UPC 11 78347200040 UPC 12 783472000401 Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 Power Rating 45 kVA Primary Voltage 480 VAC Secondary Voltage 240/120 VAC Conduit knockouts for side entry into wiring compartment Copper lead wire terminations Electro statically shielded for quality power on sizes 1 kVA and larger 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications Encapsulated enclosure for indoor and outdoor service Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) With reduced capacity center tap 54.2 A primary, 108.3 A secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HT5F45AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29 in H x 25 in W x 12 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.0920 lb |
| Housing Material | Rolled Steel |
| Maximum Amperage Rating | 54.2/108.3 A |
| Mounting Type | Floor |
| Series | HT5 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 |
| Temperature Rating | 115 °C |
| Type | Non-Ventilated |
| UNSPSC | 39121027 |
| UPC 11 | 78347200040 |
| UPC 12 | 783472000401 |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 45 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 240/120 VAC |
| Conduit knockouts for side entry into wiring compartment |
| Copper lead wire terminations |
| Electro statically shielded for quality power on sizes 1 kVA and larger |
| 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications |
| Encapsulated enclosure for indoor and outdoor service |
| Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) |
| With reduced capacity center tap |
| 54.2 A primary, 108.3 A secondary |
