SolaHD™

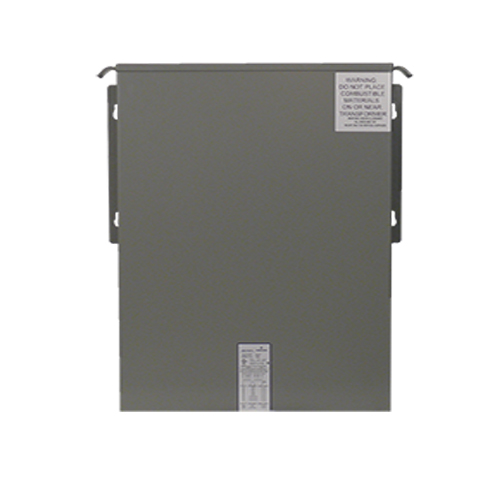

SolaHD HT5F3AS Non-Ventilated Automation Transformer, 480 VAC Delta Primary, 240Y/120 VAC Secondary, 3 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HT5F3AS Non-Ventilated Automation Transformer, 480 VAC Delta Primary, 240Y/120 VAC Secondary, 3 kVA, 60 Hz
SKU24085
MFGR #HT5F3AS
Your Cost: $894.81/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
Application SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments. ARRA Compliant Y Buy American Compliant Y Catalog Number HT5F3AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 11 in L x 20 in W x 13 in H Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 119.0000 lb Gross Weight per Pack Metric 53.98 Gross Weight UOM Metric kg Height 13.00 in Height [Metric] 33.0200 cm Housing Material Rolled Steel Input Voltage 480 Volt Delta Primary VAC KVA Rating 3 Length 19.00 in Length [Metric] 48.2600 cm Maximum Amperage Rating 10.8/25 A Maximum Input Current 10.8 A Maximum Output Current 25 A Mounting Type Wall Number Of Phases 3 Output Voltage 208Y/120 Volt Secondary Series HT5 Standard cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66 Temperature Rating 115 °C Type Encapsulated Non-Ventilated UNSPSC 39121027 UPC 11 78347212528 UPC 12 783472125289 Wattage 9,000 W Width 16.00 in Width [Metric] 40.6400 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 Power Rating 3 kVA Primary Voltage 480 VAC Secondary Voltage 208Y/120 VAC SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments. UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. Conduit knockouts for side entry into wiring compartment 0.500 - 45 kVA units are encapsulated with electrical grade silica and epoxy for industrial applications Electrostatically shielded for quality power on sizes 1 kVA and larger Copper wound designs UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service 10.8 A primary, 25 A secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments. |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HT5F3AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 11 in L x 20 in W x 13 in H |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 119.0000 lb |
| Gross Weight per Pack Metric | 53.98 |
| Gross Weight UOM Metric | kg |
| Height | 13.00 in |
| Height [Metric] | 33.0200 cm |
| Housing Material | Rolled Steel |
| Input Voltage | 480 Volt Delta Primary VAC |
| KVA Rating | 3 |
| Length | 19.00 in |
| Length [Metric] | 48.2600 cm |
| Maximum Amperage Rating | 10.8/25 A |
| Maximum Input Current | 10.8 A |
| Maximum Output Current | 25 A |
| Mounting Type | Wall |
| Number Of Phases | 3 |
| Output Voltage | 208Y/120 Volt Secondary |
| Series | HT5 |
| Standard | cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66 |
| Temperature Rating | 115 °C |
| Type | Encapsulated Non-Ventilated |
| UNSPSC | 39121027 |
| UPC 11 | 78347212528 |
| UPC 12 | 783472125289 |
| Wattage | 9,000 W |
| Width | 16.00 in |
| Width [Metric] | 40.6400 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 |
| Power Rating | 3 kVA |
| Primary Voltage | 480 VAC |
| Secondary Voltage | 208Y/120 VAC |
| SolaHD encapsulated transformers are rated for hazardous locations and harsh industrial environments. |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. |
| Conduit knockouts for side entry into wiring compartment |
| 0.500 - 45 kVA units are encapsulated with electrical grade silica and epoxy for industrial applications |
| Electrostatically shielded for quality power on sizes 1 kVA and larger |
| Copper wound designs |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service |
| 10.8 A primary, 25 A secondary |
