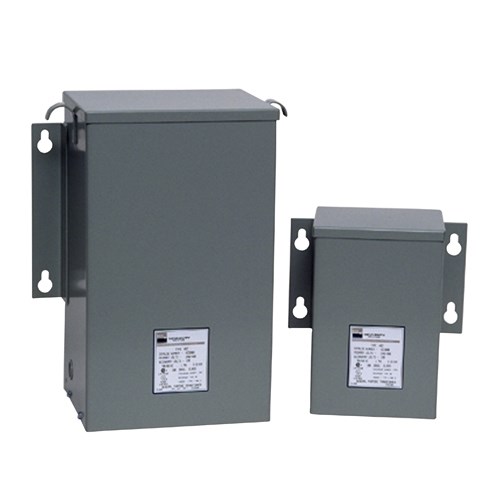

SolaHD HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1 kVA, 50/60 Hz
SKU90023
MFGR #HZ121000
Your Cost: $927.37/ea
List: The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
Application The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. ARRA Compliant Y Buy American Compliant Y Catalog Number HZ121000 Country of Origin US Currency USD Enclosure NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 44.2000 lb Gross Weight per Pack Metric 20.05 Gross Weight UOM Metric kg Height 8.20 in Height [Metric] 20.8280 cm KVA Rating 1 Length 12.50 in Length [Metric] 31.7500 cm Number Of Phases 1 Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards UL 506 Listed, cULus File No E77014 Listed, CSA C22.2 No 66 Certified, NEMA Rated, RoHS Compliant Temperature Rating 80 DEG Temperature Rise under full load in Type HSZ Series Industrial Control Transformers UNSPSC 39121026 UPC 11 78347257090 UPC 12 783472570904 Wattage 7.5 kW Width 13.60 in Width [Metric] 34.5440 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Primary Voltage 240/480, 230/460, 220/440 Volt Primary Secondary Voltage 120/115/110 Volt Secondary Hz The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) 80 deg C temperature rise under full load Copper windings Meets or exceeds NEMA regulation standards 240/480, 230/460, 220/440 VAC primary volt 120/115/110 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HZ121000 |
| Country of Origin | US |
| Currency | USD |
| Enclosure | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 44.2000 lb |
| Gross Weight per Pack Metric | 20.05 |
| Gross Weight UOM Metric | kg |
| Height | 8.20 in |
| Height [Metric] | 20.8280 cm |
| KVA Rating | 1 |
| Length | 12.50 in |
| Length [Metric] | 31.7500 cm |
| Number Of Phases | 1 |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | UL 506 Listed, cULus File No E77014 Listed, CSA C22.2 No 66 Certified, NEMA Rated, RoHS Compliant |
| Temperature Rating | 80 DEG Temperature Rise under full load in |
| Type | HSZ Series Industrial Control Transformers |
| UNSPSC | 39121026 |
| UPC 11 | 78347257090 |
| UPC 12 | 783472570904 |
| Wattage | 7.5 kW |
| Width | 13.60 in |
| Width [Metric] | 34.5440 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Primary Voltage | 240/480, 230/460, 220/440 Volt Primary |
| Secondary Voltage | 120/115/110 Volt Secondary Hz |
| The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| 80 deg C temperature rise under full load |
| Copper windings |
| Meets or exceeds NEMA regulation standards |
| 240/480, 230/460, 220/440 VAC primary volt |
| 120/115/110 VAC secondary volt |
