SolaHD™

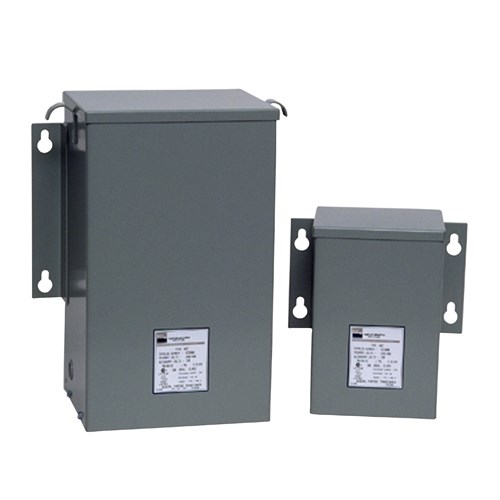

SolaHD HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1.5 kVA, 50/60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HSZ Encapsulated Industrial Control Transformer, 240/480 VAC Primary, 120 VAC Secondary, 1.5 kVA, 50/60 Hz
SKU90022
MFGR #HZ1500
Your Cost: $774.52/ea
List: The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary.
Application The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. ARRA Compliant Y Buy American Compliant Y Catalog Number HZ1500 Connection Type Screw Country of Origin US Currency USD Dimensions 7 in L x 10 in W x 12 in H Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 53.0000 lb Gross Weight per Pack Metric 24.04 Gross Weight UOM Metric kg Height 8.20 in Height [Metric] 20.8280 cm KVA Rating 1.5 Length 12.60 in Length [Metric] 32.0040 cm Number Of Phases 1 Series HSZ Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 Temperature Rating 80 °C Type Encapsulated UNSPSC 39121026 UPC 11 78347257065 UPC 12 783472570652 Wattage 1,000 W Width 13.60 in Width [Metric] 34.5440 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 50/60 Hz Phase 1 pH Power Rating 1.5 kVA Primary Voltage 240/480, 230/460, 220/440 VAC Secondary Voltage 110/115/120 VAC The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) 80 deg C temperature rise under full load Copper windings Meets or exceeds NEMA regulation standards 240/480 VAC primary volt 120 VAC secondary volt
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HZ1500 |
| Connection Type | Screw |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7 in L x 10 in W x 12 in H |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 53.0000 lb |
| Gross Weight per Pack Metric | 24.04 |
| Gross Weight UOM Metric | kg |
| Height | 8.20 in |
| Height [Metric] | 20.8280 cm |
| KVA Rating | 1.5 |
| Length | 12.60 in |
| Length [Metric] | 32.0040 cm |
| Number Of Phases | 1 |
| Series | HSZ |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506CSA C22.2 No. 66 |
| Temperature Rating | 80 °C |
| Type | Encapsulated |
| UNSPSC | 39121026 |
| UPC 11 | 78347257065 |
| UPC 12 | 783472570652 |
| Wattage | 1,000 W |
| Width | 13.60 in |
| Width [Metric] | 34.5440 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 50/60 Hz |
| Phase | 1 pH |
| Power Rating | 1.5 kVA |
| Primary Voltage | 240/480, 230/460, 220/440 VAC |
| Secondary Voltage | 110/115/120 VAC |
| The HSZ series is for applications where cost or heat issues make mounting the transformer outside the control panel necessary. |
| UL Class 180 DEG C insulation system, 80 DEG C temperature rise under full load, Meets or exceeds NEMA regulation standards, Copper windings, Encapsulated, UL Listed/NEMA Type 3R (rain proof) |
| 80 deg C temperature rise under full load |
| Copper windings |
| Meets or exceeds NEMA regulation standards |
| 240/480 VAC primary volt |
| 120 VAC secondary volt |
