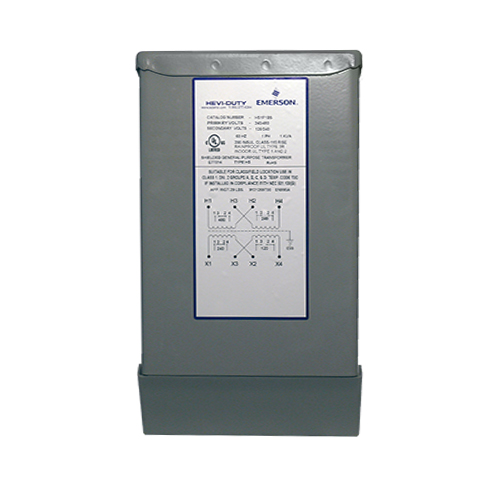

SolaHD HS20F1B 1KVA 120X240-16/32 BB
Custom_Product_Images_Illustration
SolaHD™
SolaHD HS20F1B 1KVA 120X240-16/32 BB
SKU296607
MFGR #HS20F1B
Your Cost: $341.38/ea
List: Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Application Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. ARRA Compliant Y Boost Voltage 95-120 , 240-272 V Buck Voltage 136-120 , 272-240 V Buy American Compliant Y Catalog Number HS20F1B Connection Type Lead Wire Country of Origin US Currency USD Design Encapsulated Dimensions 5 in L x 6 in W x 10 in H Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 29.2000 lb Gross Weight per Pack Metric 13.24 Gross Weight UOM Metric kg Height 6.30 in Height [Metric] 16.0020 cm Length 6.80 in Length [Metric] 17.2720 cm Maximum Amperage Rating 83.3/41.6 A Secondary Maximum Input Current 41.6@24V/83.3@12V A Number Of Phases 1 Series HS20 Standard cULus Listed: UL 506, CSA C22.2 No.66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561CSA C22.2 No. 47/66cULus File No. E25872cULus File No. E77014 Type Buck-Boost Transformer UNSPSC 39121025 UPC 11 78347210088 UPC 12 783472100880 Wattage 1,000 W Width 11.40 in Width [Metric] 28.9560 cm Stock Status NORMALLY STOCKED Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 1 kVA Primary Voltage 120X240 V Secondary Voltage 16/32 V Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. Compact, Lightweight, Can be connected as an autotransformer. Encapsulated, Single Phase, 60HZ Low cost, compact size and lightweight They are more efficient and cost less than equivalent isolation transformers They can handle loads up to 20 times the nameplate rating A buck-boost transformer is the ideal solution for changing line voltage by small amounts It designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12/16/24/32/48 VAC Can be connected as an autotransformer 83.3 A at 12 VAC, 41.6 A at 24 VAC maximum secondary amperage
