SolaHD™

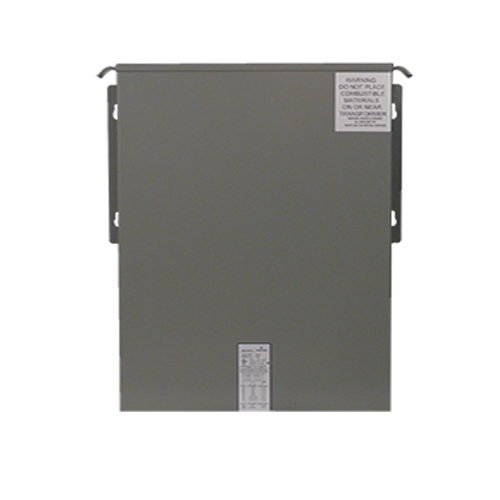

SolaHD HS2 Encapsulated Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 1.5 kVA, 60 Hz, 1 Phase
Custom_Product_Images_Illustration
SolaHD™
SolaHD HS2 Encapsulated Buck Boost Transformer, 240/480 VAC Primary, 24/48 VAC Secondary, 1.5 kVA, 60 Hz, 1 Phase
SKU189897
MFGR #HS22F15A
Your Cost: $517.50/ea
List: Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Application Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. ARRA Compliant Y Boost Voltage 200-240 , 458-480 V Buck Voltage 277-230 , 528-480 V Buy American Compliant Y Catalog Number HS22F15A Connection Type Lead Wire Country of Origin US Currency USD Design Encapsulated Dimensions 7 in L x 10 in W x 12 in H Enclosure Type NEMA 3R EU RoHS Indicator C Gross Weight Per Pack 45.1500 lb Gross Weight per Pack Metric 20.48 Gross Weight UOM Metric kg Height 8.00 in Height [Metric] 20.3200 cm Length 12.60 in Length [Metric] 32.0040 cm Maximum Amperage Rating 62.5/31.2 A Secondary Maximum Input Current 31.2@48V/62.5@24V A Number Of Phases 1 Series HS22 Standard cULus Listed: UL 506, CSA C22.2 No.66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561CSA C22.2 No. 47/66cULus File No. E25872cULus File No. E77014 Type Encapsulated UNSPSC 39121025 UPC 11 78347213245 UPC 12 783472132454 Wattage 1,500 W Width 13.50 in Width [Metric] 34.2900 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 1.5 kVA Primary Voltage 240 X 480 V Secondary Voltage 24/48 V Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. Compact, Lightweight, Can be connected as an autotransformer. Compact, lightweight, can be connected as an autotransformer Buck-boost transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 volts They can handle loads up to 20 times the nameplate rating Conduit knockouts for side entry into wiring compartment It designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12/16/24/32/48 VAC Can be connected as an autotransformer 62.5 A at 24 VAC, 31.2 A at 48 VAC maximum secondary amperage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. |
| ARRA Compliant | Y |
| Boost Voltage | 200-240 , 458-480 V |
| Buck Voltage | 277-230 , 528-480 V |
| Buy American Compliant | Y |
| Catalog Number | HS22F15A |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Design | Encapsulated |
| Dimensions | 7 in L x 10 in W x 12 in H |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 45.1500 lb |
| Gross Weight per Pack Metric | 20.48 |
| Gross Weight UOM Metric | kg |
| Height | 8.00 in |
| Height [Metric] | 20.3200 cm |
| Length | 12.60 in |
| Length [Metric] | 32.0040 cm |
| Maximum Amperage Rating | 62.5/31.2 A Secondary |
| Maximum Input Current | 31.2@48V/62.5@24V A |
| Number Of Phases | 1 |
| Series | HS22 |
| Standard | cULus Listed: UL 506, CSA C22.2 No.66 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561CSA C22.2 No. 47/66cULus File No. E25872cULus File No. E77014 |
| Type | Encapsulated |
| UNSPSC | 39121025 |
| UPC 11 | 78347213245 |
| UPC 12 | 783472132454 |
| Wattage | 1,500 W |
| Width | 13.50 in |
| Width [Metric] | 34.2900 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 1.5 kVA |
| Primary Voltage | 240 X 480 V |
| Secondary Voltage | 24/48 V |
| Buck-Boost Transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 Volts. |
| Compact, Lightweight, Can be connected as an autotransformer. |
| Compact, lightweight, can be connected as an autotransformer |
| Buck-boost transformers are designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12, 16, 24, 32, or 48 volts |
| They can handle loads up to 20 times the nameplate rating |
| Conduit knockouts for side entry into wiring compartment |
| It designed to supply power to low voltage lighting circuits, control panels or other systems requiring 12/16/24/32/48 VAC |
| Can be connected as an autotransformer |
| 62.5 A at 24 VAC, 31.2 A at 48 VAC maximum secondary amperage |
