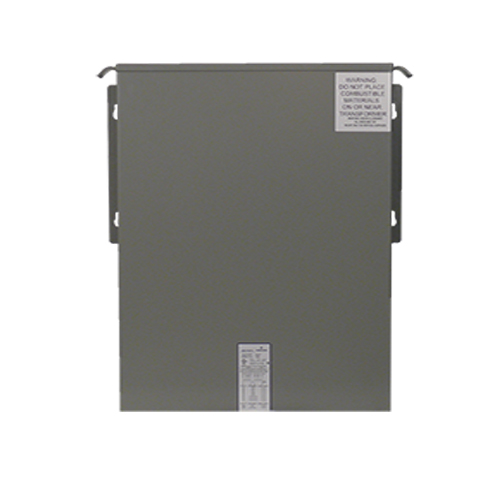

SolaHD HS1F1.5AS Non-Ventilated Automation Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 1.5 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD HS1F1.5AS Non-Ventilated Automation Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 1.5 kVA, 60 Hz
SKU24071
MFGR #HS1F1.5AS
Your Cost: $291.17/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
Application SolaHD encapsulated transformer rated for harsh industrial environments ARRA Compliant Y Buy American Compliant Y Catalog Number HS1F1.5AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 12 in H x 10 in W x 7 in D Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator C Gross Weight Per Pack 45.0000 lb Gross Weight per Pack Metric 20.41 Gross Weight UOM Metric kg Height 8.10 in Height [Metric] 20.5740 cm Housing Material Rolled Steel Length 12.60 in Length [Metric] 32.0040 cm Maximum Amperage Rating 6.25/3.13 A, 12.5/6.25 A Mounting Type Wall Series HS1 Standard UL (CANADA AND US), UL 1561 or 506. CSA Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 Temperature Rating 115 °C Type Non-Ventilated Encapsulated UNSPSC 39121027 UPC 11 78347211124 UPC 12 783472111244 Width 13.40 in Width [Metric] 34.0360 cm Stock Status NORMALLY STOCKED Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 1.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC SolaHD encapsulated transformer rated for harsh industrial environments Rated for Hazardous Locations and Harsh Industrial Environments, Copper Lead Wire Terminations, UL Class 200 DEG C Insulation System Conduit knockouts for side entry into wiring compartment NEMA type 3R non encapsulated enclosure for indoor and outdoor service 80 deg C temperature rise under full load Copper wound designs UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service 12.5/6.25 A primary, 25.0/12.5 A secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SolaHD encapsulated transformer rated for harsh industrial environments |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HS1F1.5AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 12 in H x 10 in W x 7 in D |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 45.0000 lb |
| Gross Weight per Pack Metric | 20.41 |
| Gross Weight UOM Metric | kg |
| Height | 8.10 in |
| Height [Metric] | 20.5740 cm |
| Housing Material | Rolled Steel |
| Length | 12.60 in |
| Length [Metric] | 32.0040 cm |
| Maximum Amperage Rating | 6.25/3.13 A, 12.5/6.25 A |
| Mounting Type | Wall |
| Series | HS1 |
| Standard | UL (CANADA AND US), UL 1561 or 506. CSA |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/66 |
| Temperature Rating | 115 °C |
| Type | Non-Ventilated Encapsulated |
| UNSPSC | 39121027 |
| UPC 11 | 78347211124 |
| UPC 12 | 783472111244 |
| Width | 13.40 in |
| Width [Metric] | 34.0360 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 1.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| SolaHD encapsulated transformer rated for harsh industrial environments |
| Rated for Hazardous Locations and Harsh Industrial Environments, Copper Lead Wire Terminations, UL Class 200 DEG C Insulation System |
| Conduit knockouts for side entry into wiring compartment |
| NEMA type 3R non encapsulated enclosure for indoor and outdoor service |
| 80 deg C temperature rise under full load |
| Copper wound designs |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service |
| 12.5/6.25 A primary, 25.0/12.5 A secondary |
