SolaHD™

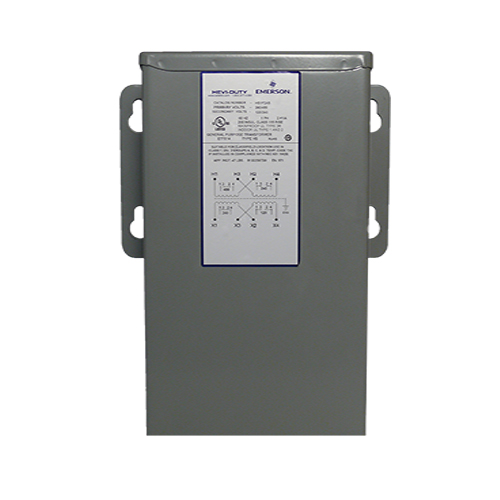

SolaHD HS1B50 Non-Ventilated Non-Encapsulated Automation Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HS1B50 Non-Ventilated Non-Encapsulated Automation Transformer, 240/480 VAC Primary, 120/240 VAC Secondary, 60 Hz
SKU89922
MFGR #HS1B50
Your Cost: $59.54/ea
List: SolaHD Automation Transformer, Non-Ventilated Non-Encapsulated, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA, 60 Hz, 1 Phase, 0.208/1.04/0.416/0.208 A Maximum, Lead Wire, Wall Mount, 130 deg C, NEMA 3R, 80 deg C, Rolled Steel Housing, 6 in H x 4 in W x 3 in D
SolaHD Automation Transformer, Non-Ventilated Non-Encapsulated, 240/480 VAC Primary, 120/240 VAC Secondary, 0.5 kVA, 60 Hz, 1 Phase, 0.208/1.04/0.416/0.208 A Maximum, Lead Wire, Wall Mount, 130 deg C, NEMA 3R, 80 deg C, Rolled Steel Housing, 6 in H x 4 in W x 3 in D
Application SolaHD encapsulated transformer rated for harsh industrial environments ARRA Compliant N Buy American Compliant N Catalog Number HS1B50 Connection Copper lead wire terminations Connection Type Lead Wire Country of Origin VN Currency USD Dimensions 6 in H x 4 in W x 3 in D Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 4.2000 lb Gross Weight per Pack Metric 1.90 Gross Weight UOM Metric kg Height 3.90 in Height [Metric] 9.9060 cm Housing Material Rolled Steel Input Voltage 240x480 Primary, 120/240 Secondary Insulation 130 DEG C Insulation System Length 8.60 in Length [Metric] 21.8440 cm Maximum Amperage Rating 0.208/1.04 A, 0.416/0.208 A Maximum Input Current 0.104/0.208/0.416 A Mounting Type Wall Series HS1 Standard Not Listed Standards RoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/No. 66 Temperature Rating 80 °C Type Primary Fuse Holder Kit UNSPSC 39121027 UPC 11 78347210020 UPC 12 783472100200 Wattage .050 Width 4.60 in Width [Metric] 11.6840 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 0.5 kVA Primary Voltage 240/480 VAC Secondary Voltage 120/240 VAC SolaHD encapsulated transformer rated for harsh industrial environments For (2) Fuses. Primary "CC" rejection Type fuse holder and finger safe cover kit. Conduit knockouts for side entry into wiring compartment Copper lead wire terminations Encapsulated enclosure for indoor and outdoor service Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) 0.208/1.04 A primary, 0.416/0.208 A secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SolaHD encapsulated transformer rated for harsh industrial environments |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | HS1B50 |
| Connection | Copper lead wire terminations |
| Connection Type | Lead Wire |
| Country of Origin | VN |
| Currency | USD |
| Dimensions | 6 in H x 4 in W x 3 in D |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 4.2000 lb |
| Gross Weight per Pack Metric | 1.90 |
| Gross Weight UOM Metric | kg |
| Height | 3.90 in |
| Height [Metric] | 9.9060 cm |
| Housing Material | Rolled Steel |
| Input Voltage | 240x480 Primary, 120/240 Secondary |
| Insulation | 130 DEG C Insulation System |
| Length | 8.60 in |
| Length [Metric] | 21.8440 cm |
| Maximum Amperage Rating | 0.208/1.04 A, 0.416/0.208 A |
| Maximum Input Current | 0.104/0.208/0.416 A |
| Mounting Type | Wall |
| Series | HS1 |
| Standard | Not Listed |
| Standards | RoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47/No. 66 |
| Temperature Rating | 80 °C |
| Type | Primary Fuse Holder Kit |
| UNSPSC | 39121027 |
| UPC 11 | 78347210020 |
| UPC 12 | 783472100200 |
| Wattage | .050 |
| Width | 4.60 in |
| Width [Metric] | 11.6840 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 0.5 kVA |
| Primary Voltage | 240/480 VAC |
| Secondary Voltage | 120/240 VAC |
| SolaHD encapsulated transformer rated for harsh industrial environments |
| For (2) Fuses. Primary "CC" rejection Type fuse holder and finger safe cover kit. |
| Conduit knockouts for side entry into wiring compartment |
| Copper lead wire terminations |
| Encapsulated enclosure for indoor and outdoor service |
| Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) |
| 0.208/1.04 A primary, 0.416/0.208 A secondary |
