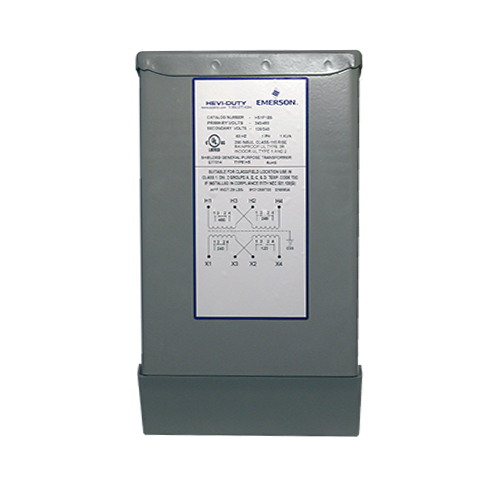

SolaHD HS19F750B 0.750KVA 120X240-12/24 BB
SKU24066
MFGR #HS19F750B
Your Cost: $294.25/ea
List: Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Buck-Boost transformers are small, single phase, dry type distribution transformers designed and shipped as insulating/isolating transformers. They have a dual voltage primary and a dual voltage secondary. These transformers can be connected for a wide range of voltage combinations. The most common use is to buck (lower) or boost (raise) the supply voltage a small amount, usually 5 to 27%. Buck-boost transformers are in compliance with NEC Article 210.9, Exception 1 when field connected as an autotransformer.
Application Encapsulated transformers are rated fro Hazardous locations and harsh inductrial enviromnents. ARRA Compliant Y Boost Voltage 100-120 , 229-240 V Buck Voltage 132-120 , 264-240 V Buy American Compliant Y Catalog Number HS19F750B Connection Copper lead wire terminations Connection Type Copper Lead Wire Country of Origin US Currency USD Design Encapsulated Dimensions 5 in L x 6 in W x 10 in H Enclosure NEMA 3R Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 25.3500 lb Gross Weight per Pack Metric 11.50 Gross Weight UOM Metric kg Height 6.90 in Height [Metric] 17.5260 cm Length 11.50 in Length [Metric] 29.2100 cm Maximum Amperage Rating 3.13/1.56 A Primary, 6.25/3.13 A Secondary Maximum Input Current 1.56/3.13/6.25 A Number Of Phases 1 Series HS19 Standard cULus Listed: E25872, E77014; UL 1561 or UL 506; CSA: C22.2 No. 47 or No. 66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561CSA C22.2 No. 47CSA C22.2 No. 66cULus File No. E25872cULus File No. E77014 Type Encapsulated UNSPSC 39121025 UPC 11 78347210072 UPC 12 783472100729 Wattage 750 W Width 6.30 in Width [Metric] 16.0020 cm Stock Status NORMALLY STOCKED Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 0.75 kVA Primary Voltage 120 X 240 V Secondary Voltage 12/24 V Encapsulated transformers are rated fro Hazardous locations and harsh inductrial enviromnents. Copper Lead Wire Terminations, UL Listed Nema Type 3R,Conduit knockouts for side entry wiring Low cost, compact size and lightweight They are more efficient and cost less than equivalent isolation transformers They can handle loads up to 20 times the nameplate rating A buck-boost transformer is the ideal solution for changing line voltage by small amounts Conduit knockouts for side entry wiring
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Encapsulated transformers are rated fro Hazardous locations and harsh inductrial enviromnents. |
| ARRA Compliant | Y |
| Boost Voltage | 100-120 , 229-240 V |
| Buck Voltage | 132-120 , 264-240 V |
| Buy American Compliant | Y |
| Catalog Number | HS19F750B |
| Connection | Copper lead wire terminations |
| Connection Type | Copper Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Design | Encapsulated |
| Dimensions | 5 in L x 6 in W x 10 in H |
| Enclosure | NEMA 3R |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 25.3500 lb |
| Gross Weight per Pack Metric | 11.50 |
| Gross Weight UOM Metric | kg |
| Height | 6.90 in |
| Height [Metric] | 17.5260 cm |
| Length | 11.50 in |
| Length [Metric] | 29.2100 cm |
| Maximum Amperage Rating | 3.13/1.56 A Primary, 6.25/3.13 A Secondary |
| Maximum Input Current | 1.56/3.13/6.25 A |
| Number Of Phases | 1 |
| Series | HS19 |
| Standard | cULus Listed: E25872, E77014; UL 1561 or UL 506; CSA: C22.2 No. 47 or No. 66 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561CSA C22.2 No. 47CSA C22.2 No. 66cULus File No. E25872cULus File No. E77014 |
| Type | Encapsulated |
| UNSPSC | 39121025 |
| UPC 11 | 78347210072 |
| UPC 12 | 783472100729 |
| Wattage | 750 W |
| Width | 6.30 in |
| Width [Metric] | 16.0020 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 0.75 kVA |
| Primary Voltage | 120 X 240 V |
| Secondary Voltage | 12/24 V |
| Encapsulated transformers are rated fro Hazardous locations and harsh inductrial enviromnents. |
| Copper Lead Wire Terminations, UL Listed Nema Type 3R,Conduit knockouts for side entry wiring |
| Low cost, compact size and lightweight |
| They are more efficient and cost less than equivalent isolation transformers |
| They can handle loads up to 20 times the nameplate rating |
| A buck-boost transformer is the ideal solution for changing line voltage by small amounts |
| Conduit knockouts for side entry wiring |
