SolaHD™

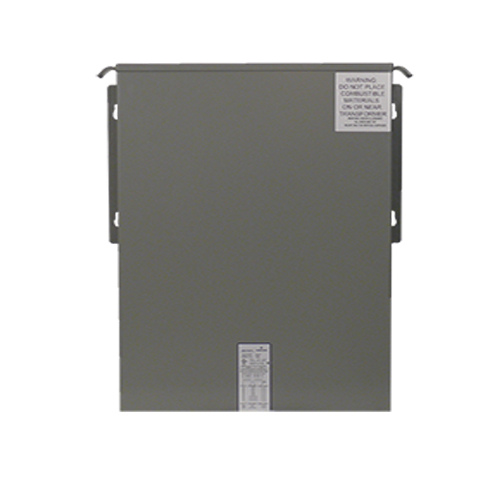

SolaHD HS10F5AS Non-Ventilated Encapsulated Automation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 5 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD™
SolaHD HS10F5AS Non-Ventilated Encapsulated Automation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 5 kVA, 60 Hz
SKU472649
MFGR #HS10F5AS
Your Cost: $875.21/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
Application SolaHD encapsulated transformer rated for harsh industrial environments ARRA Compliant Y Buy American Compliant Y Catalog Number HS10F5AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 7 in L x 10 in W x 17 in H Enclosure NEMA 3R, Class 1 Div 2 Group A,B,C and D Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 163.0000 lb Gross Weight per Pack Metric 73.94 Gross Weight UOM Metric kg Height 16.00 in Height [Metric] 40.6400 cm Housing Material Rolled Steel Input Voltage 600 Volts Primary VAC KVA Rating 5 Length 16.00 in Length [Metric] 40.6400 cm Maximum Amperage Rating 5/25/12.5 A Maximum Input Current 5 A Maximum Output Current 12.5/25 A Mounting Type Wall Number Of Phases 1 Output Voltage 120/240 Volt Secondary Series HS10 Standard cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66Class 1 Div 2 Group A, B, C, D Temperature Rating 115 DEG C Temperature Rise Under Full Load °C Type Automation Transformers - Non-Ventilated 50 VA to 45 kVA UNSPSC 39121027 UPC 11 78347211829 UPC 12 783472118298 Wattage 3 kW Width 33.50 in Width [Metric] 85.0900 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 5 kVA Primary Voltage 600 VAC Secondary Voltage 120/240 VAC SolaHD encapsulated transformer rated for harsh industrial environments UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. Conduit knockouts for side entry into wiring compartment Copper lead wire terminations Electro statically shielded for quality power on sizes 1 kVA and larger 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications Encapsulated enclosure for indoor and outdoor service Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) 8.3 A primary, 4.16/2.08 A secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SolaHD encapsulated transformer rated for harsh industrial environments |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HS10F5AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7 in L x 10 in W x 17 in H |
| Enclosure | NEMA 3R, Class 1 Div 2 Group A,B,C and D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 163.0000 lb |
| Gross Weight per Pack Metric | 73.94 |
| Gross Weight UOM Metric | kg |
| Height | 16.00 in |
| Height [Metric] | 40.6400 cm |
| Housing Material | Rolled Steel |
| Input Voltage | 600 Volts Primary VAC |
| KVA Rating | 5 |
| Length | 16.00 in |
| Length [Metric] | 40.6400 cm |
| Maximum Amperage Rating | 5/25/12.5 A |
| Maximum Input Current | 5 A |
| Maximum Output Current | 12.5/25 A |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Output Voltage | 120/240 Volt Secondary |
| Series | HS10 |
| Standard | cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66Class 1 Div 2 Group A, B, C, D |
| Temperature Rating | 115 DEG C Temperature Rise Under Full Load °C |
| Type | Automation Transformers - Non-Ventilated 50 VA to 45 kVA |
| UNSPSC | 39121027 |
| UPC 11 | 78347211829 |
| UPC 12 | 783472118298 |
| Wattage | 3 kW |
| Width | 33.50 in |
| Width [Metric] | 85.0900 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 5 kVA |
| Primary Voltage | 600 VAC |
| Secondary Voltage | 120/240 VAC |
| SolaHD encapsulated transformer rated for harsh industrial environments |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. |
| Conduit knockouts for side entry into wiring compartment |
| Copper lead wire terminations |
| Electro statically shielded for quality power on sizes 1 kVA and larger |
| 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications |
| Encapsulated enclosure for indoor and outdoor service |
| Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) |
| 8.3 A primary, 4.16/2.08 A secondary |
