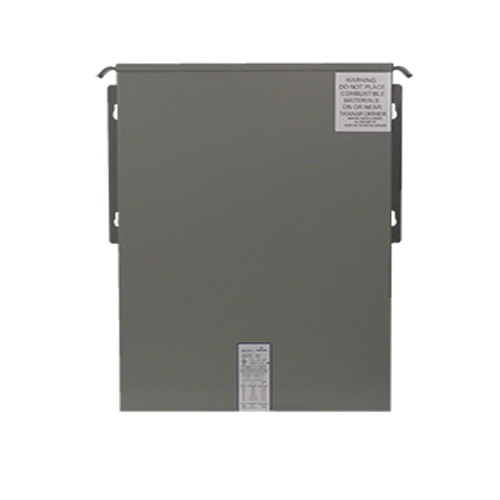

SolaHD HS10F3AS Non-Ventilated Encapsulated Automation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD HS10F3AS Non-Ventilated Encapsulated Automation Transformer, 600 VAC Primary, 120/240 VAC Secondary, 3 kVA, 60 Hz
SKU481435
MFGR #HS10F3AS
Your Cost: $557.76/ea
List: SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
SolaHD encapsulated transformers are rated for Hazardous Locations as well as harsh industrial environments. Encapsulation and rugged UL Listed/NEMA Type 3R enclosures protect the transformer from dust, moisture and provide extra shock and vibration resistance. SolaHD transformers fully comply with the latest addition of the National Electrical Code for Class I, Division 2, Group A, B, C and D locations when installed in compliance with NEC 501.100 (B).
Application SolaHD encapsulated transformer rated for harsh industrial environments ARRA Compliant Y Buy American Compliant Y Catalog Number HS10F3AS Connection Type Lead Wire Country of Origin US Currency USD Dimensions 7 in L x 10 in W x 12 in H Enclosure NEMA 3R, Class 1 Div 2 Group A,B,C and D Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 55.5000 lb Gross Weight per Pack Metric 25.18 Gross Weight UOM Metric kg Height 7.90 in Height [Metric] 20.0660 cm Housing Material Rolled Steel Input Voltage 600 Volts Primary VAC KVA Rating 3 Length 12.50 in Length [Metric] 31.7500 cm Maximum Amperage Rating 3.33/16.7/8.33 A Maximum Input Current 3.33 A Maximum Output Current 16.7/8.33 AMP A Mounting Type Wall Number Of Phases 1 Output Voltage 120/240 Volt Secondary Series HS10 Standard cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66Class 1 Div 2 Group A, B, C, D Temperature Rating 115 °C Type Encapsulated Non-Ventilated UNSPSC 39121027 UPC 11 78347211828 UPC 12 783472118281 Wattage 2,000 W Width 13.50 in Width [Metric] 34.2900 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 1 Power Rating 3 kVA Primary Voltage 600 VAC Secondary Voltage 120/240 VAC SolaHD encapsulated transformer rated for harsh industrial environments UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. Conduit knockouts for side entry into wiring compartment Copper lead wire terminations Electro statically shielded for quality power on sizes 1 kVA and larger 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications Encapsulated enclosure for indoor and outdoor service Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) 5 A primary, 25/12.5 A secondary
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SolaHD encapsulated transformer rated for harsh industrial environments |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | HS10F3AS |
| Connection Type | Lead Wire |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 7 in L x 10 in W x 12 in H |
| Enclosure | NEMA 3R, Class 1 Div 2 Group A,B,C and D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 55.5000 lb |
| Gross Weight per Pack Metric | 25.18 |
| Gross Weight UOM Metric | kg |
| Height | 7.90 in |
| Height [Metric] | 20.0660 cm |
| Housing Material | Rolled Steel |
| Input Voltage | 600 Volts Primary VAC |
| KVA Rating | 3 |
| Length | 12.50 in |
| Length [Metric] | 31.7500 cm |
| Maximum Amperage Rating | 3.33/16.7/8.33 A |
| Maximum Input Current | 3.33 A |
| Maximum Output Current | 16.7/8.33 AMP A |
| Mounting Type | Wall |
| Number Of Phases | 1 |
| Output Voltage | 120/240 Volt Secondary |
| Series | HS10 |
| Standard | cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E25872/E77014UL 1561UL 506CSA C22.2 No. 47CSA C22.2 No. 66Class 1 Div 2 Group A, B, C, D |
| Temperature Rating | 115 °C |
| Type | Encapsulated Non-Ventilated |
| UNSPSC | 39121027 |
| UPC 11 | 78347211828 |
| UPC 12 | 783472118281 |
| Wattage | 2,000 W |
| Width | 13.50 in |
| Width [Metric] | 34.2900 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 1 |
| Power Rating | 3 kVA |
| Primary Voltage | 600 VAC |
| Secondary Voltage | 120/240 VAC |
| SolaHD encapsulated transformer rated for harsh industrial environments |
| UL Listed/NEMA Type 3R encapsulated enclosure for indoor and outdoor service; Electrostatically shielded for quality power on sizes 1 kVA and larger; Copper lead wire terminations; .500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications. Rolled steel enclosure. |
| Conduit knockouts for side entry into wiring compartment |
| Copper lead wire terminations |
| Electro statically shielded for quality power on sizes 1 kVA and larger |
| 0.500 - 45 kVA units are capsulated with electrical grade silica and epoxy for industrial applications |
| Encapsulated enclosure for indoor and outdoor service |
| Class I, division 2, group A, B, C and D locations when installed in compliance with NEC 501.100 (B) |
| 5 A primary, 25/12.5 A secondary |
