SolaHD™

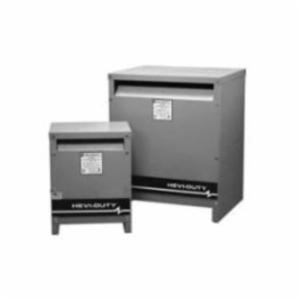

SolaHD ET71H45S General Purpose Ventilated Distribution Transformer, 600 VAC Delta Primary, 480Y/277 VAC Secondary
SolaHD™
SolaHD ET71H45S General Purpose Ventilated Distribution Transformer, 600 VAC Delta Primary, 480Y/277 VAC Secondary
SKU334335
MFGR #ET71H45S
Your Cost: $3,744.84/ea
List: SolaHD Distribution Transformer, General Purpose Ventilated, 600 VAC Delta Primary, 480Y/277 VAC Secondary, 45 kVA, 60 Hz, 3-Phase, 43.4/54.2 A Maximum, Terminal Board, Wall Mount, NEMA 3R, 150 deg C, Stainless Steel Housing, 28 in H x 23 in W x 16 in D
SolaHD Distribution Transformer, General Purpose Ventilated, 600 VAC Delta Primary, 480Y/277 VAC Secondary, 45 kVA, 60 Hz, 3-Phase, 43.4/54.2 A Maximum, Terminal Board, Wall Mount, NEMA 3R, 150 deg C, Stainless Steel Housing, 28 in H x 23 in W x 16 in D
Catalog Number ET71H45S Connection Type Terminal Board Country of Origin US Dimensions 28 in H x 23 in W x 16 in D Enclosure Type NEMA 3R Gross Weight Per Pack 1 lb Housing Material Stainless Steel Maximum Amperage Rating 43.4/54.2 A Mounting Type Wall Standards UL E25872NEMA TP-1 Temperature Rating 150 °C Type General Purpose Ventilated UNSPSC 39121001 UPC 11 78347200383 UPC 12 78347200383 Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Power Rating 45 kVA Primary Voltage 600 Delta VAC Secondary Voltage 480Y/277 VAC Energy efficient Dry type transformer UL listed nema type 3R ventilated outdoor enclosures when used with optional weather shields 150 deg C temperature rise under full load Terminal board connections and spacious wiring compartment Panel enclosure design reduces labor time Wiring diagram on inside front cover High efficiency for low cost operation Fast delivery WS-14 weather shield 43.4 A primary/54.2 A secondary
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | ET71H45S |
| Connection Type | Terminal Board |
| Country of Origin | US |
| Dimensions | 28 in H x 23 in W x 16 in D |
| Enclosure Type | NEMA 3R |
| Gross Weight Per Pack | 1 lb |
| Housing Material | Stainless Steel |
| Maximum Amperage Rating | 43.4/54.2 A |
| Mounting Type | Wall |
| Standards | UL E25872NEMA TP-1 |
| Temperature Rating | 150 °C |
| Type | General Purpose Ventilated |
| UNSPSC | 39121001 |
| UPC 11 | 78347200383 |
| UPC 12 | 78347200383 |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Power Rating | 45 kVA |
| Primary Voltage | 600 Delta VAC |
| Secondary Voltage | 480Y/277 VAC |
| Energy efficient |
| Dry type transformer |
| UL listed nema type 3R ventilated outdoor enclosures when used with optional weather shields |
| 150 deg C temperature rise under full load |
| Terminal board connections and spacious wiring compartment |
| Panel enclosure design reduces labor time |
| Wiring diagram on inside front cover |
| High efficiency for low cost operation |
| Fast delivery |
| WS-14 weather shield |
| 43.4 A primary/54.2 A secondary |
