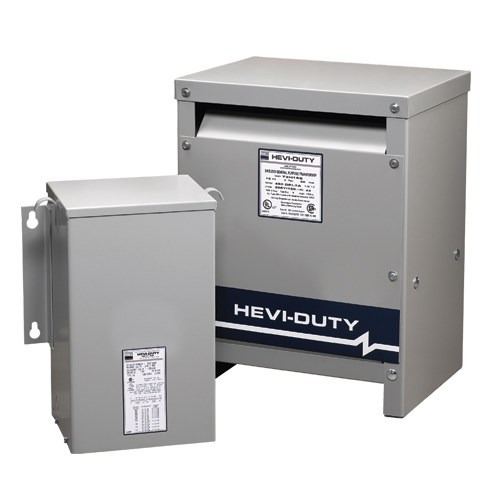

SolaHD DT661H75S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 75 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD DT661H75S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 75 kVA, 60 Hz
SKU318963
MFGR #DT661H75S
Your Cost: $3,727.74/ea
List: SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 75 kVA, 60 Hz, 3 Phase, Floor Mount, NEMA 3R, 34 in H x 28 in W x 22 in D
SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 75 kVA, 60 Hz, 3 Phase, Floor Mount, NEMA 3R, 34 in H x 28 in W x 22 in D
Application SCR Variable Speed Drives ARRA Compliant Y Buy American Compliant Y Catalog Number DT661H75S Country of Origin US Currency USD Dimensions 22 in L x 28 in W x 34 in H Enclosure Nema 3R with weather shield Enclosure Type NEMA 3R EU RoHS Indicator Y Frequency 60 Hz Gross Weight Per Pack 533.0000 lb Gross Weight per Pack Metric 241.77 Gross Weight UOM Metric kg Height 34.00 in Height [Metric] 86.3600 cm KVA Rating 75 Length 22.50 in Length [Metric] 57.1500 cm Mounting Floor Mounting Type Floor NEMA Frame Size NEMA 3R Number Of Phases 3 Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506 File No. E25872UL 1561 File No. E25872CSA C22.2 No. 66 Type Ventilated UNSPSC 39121029 UPC 11 78347240126 UPC 12 783472401260 Width 28.00 in Width [Metric] 71.1200 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 pH Power Rating 75 kVA Primary Voltage 460 Delta VAC Secondary Voltage 460Y/266 VAC SCR Variable Speed Drives Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the national electric code Shielding attenuates line to ground noise Isolation minimizes load disturbances caused by the SCR drive A transformer is needed to magnetically isolate the incoming line from the motor drive The transformer must also provide a voltage change to match the required voltage of the SCR drive Standard designs are delta primary and wye secondary to match the common power sources required in most 3-phase rectifier circuits Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SCR Variable Speed Drives |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | DT661H75S |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 22 in L x 28 in W x 34 in H |
| Enclosure | Nema 3R with weather shield |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 533.0000 lb |
| Gross Weight per Pack Metric | 241.77 |
| Gross Weight UOM Metric | kg |
| Height | 34.00 in |
| Height [Metric] | 86.3600 cm |
| KVA Rating | 75 |
| Length | 22.50 in |
| Length [Metric] | 57.1500 cm |
| Mounting | Floor |
| Mounting Type | Floor |
| NEMA Frame Size | NEMA 3R |
| Number Of Phases | 3 |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506 File No. E25872UL 1561 File No. E25872CSA C22.2 No. 66 |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 78347240126 |
| UPC 12 | 783472401260 |
| Width | 28.00 in |
| Width [Metric] | 71.1200 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 pH |
| Power Rating | 75 kVA |
| Primary Voltage | 460 Delta VAC |
| Secondary Voltage | 460Y/266 VAC |
| SCR Variable Speed Drives |
| Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the national electric code |
| Shielding attenuates line to ground noise |
| Isolation minimizes load disturbances caused by the SCR drive |
| A transformer is needed to magnetically isolate the incoming line from the motor drive |
| The transformer must also provide a voltage change to match the required voltage of the SCR drive |
| Standard designs are delta primary and wye secondary to match the common power sources required in most 3-phase rectifier circuits |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
