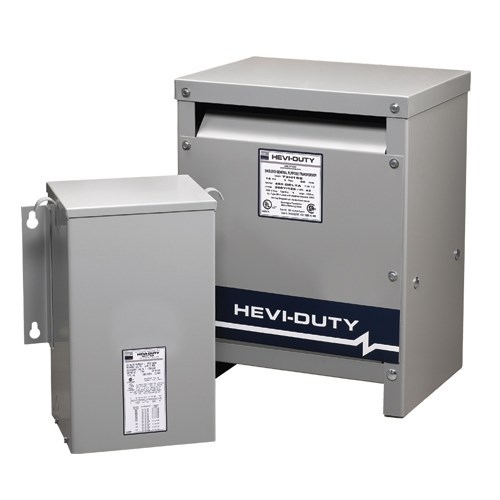

SolaHD DT661F7.5S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 7.5 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD DT661F7.5S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 7.5 kVA, 60 Hz
SKU276568
MFGR #DT661F75S
Your Cost: $1,461.89/ea
List: SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 7.5 kVA, 60 Hz, 3 Phase, Wall Mount, NEMA 3R, 17 in H x 20 in W x 10 in D
SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 230Y/133 VAC Secondary, 7.5 kVA, 60 Hz, 3 Phase, Wall Mount, NEMA 3R, 17 in H x 20 in W x 10 in D
Application SCR Variable Speed Drives ARRA Compliant Y Buy American Compliant Y Catalog Number DT661F75S Country of Origin US Currency USD Dimensions 10 in L x 20 in W x 17 in H Enclosure Nema 3R with weather shield Enclosure Type NEMA 3R EU RoHS Indicator C Frequency 60 Hz Gross Weight Per Pack 260.0000 lb Gross Weight per Pack Metric 117.94 Gross Weight UOM Metric kg Height 16.00 in Height [Metric] 40.6400 cm KVA Rating 7.5 Length 19.00 in Length [Metric] 48.2600 cm Mounting Type Wall NEMA Frame Size NEMA 3R Number Of Phases 3 Standard cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506 File No. E25872UL 1561 File No. E25872CSA C22.2 No. 66 Type Ventilated UNSPSC 39121029 UPC 11 78347254270 UPC 12 783472542703 Width 16.00 in Width [Metric] 40.6400 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 pH Power Rating 7.5 kVA Primary Voltage 460 Delta VAC Secondary Voltage 230Y/133 VAC SCR Variable Speed Drives Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the national electric code Shielding attenuates line to ground noise Isolation minimizes load disturbances caused by the SCR drive A transformer is needed to magnetically isolate the incoming line from the motor drive The transformer must also provide a voltage change to match the required voltage of the SCR drive Standard designs are delta primary and wye secondary to match the common power sources required in most 3-phase rectifier circuits Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | SCR Variable Speed Drives |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | DT661F75S |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 10 in L x 20 in W x 17 in H |
| Enclosure | Nema 3R with weather shield |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | C |
| Frequency | 60 Hz |
| Gross Weight Per Pack | 260.0000 lb |
| Gross Weight per Pack Metric | 117.94 |
| Gross Weight UOM Metric | kg |
| Height | 16.00 in |
| Height [Metric] | 40.6400 cm |
| KVA Rating | 7.5 |
| Length | 19.00 in |
| Length [Metric] | 48.2600 cm |
| Mounting Type | Wall |
| NEMA Frame Size | NEMA 3R |
| Number Of Phases | 3 |
| Standard | cULus Listed: E77014, UL 506, CSA C22.2 No. 66, Listed E25872, UL 1561 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcULus File No. E77014UL 506 File No. E25872UL 1561 File No. E25872CSA C22.2 No. 66 |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 78347254270 |
| UPC 12 | 783472542703 |
| Width | 16.00 in |
| Width [Metric] | 40.6400 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 pH |
| Power Rating | 7.5 kVA |
| Primary Voltage | 460 Delta VAC |
| Secondary Voltage | 230Y/133 VAC |
| SCR Variable Speed Drives |
| Isolation minimizes load disturbances caused by the SCR drive. Taps on all units for adjustments to incoming source voltage. Full capacity secondary neutral as required by the NEC. |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the national electric code |
| Shielding attenuates line to ground noise |
| Isolation minimizes load disturbances caused by the SCR drive |
| A transformer is needed to magnetically isolate the incoming line from the motor drive |
| The transformer must also provide a voltage change to match the required voltage of the SCR drive |
| Standard designs are delta primary and wye secondary to match the common power sources required in most 3-phase rectifier circuits |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
