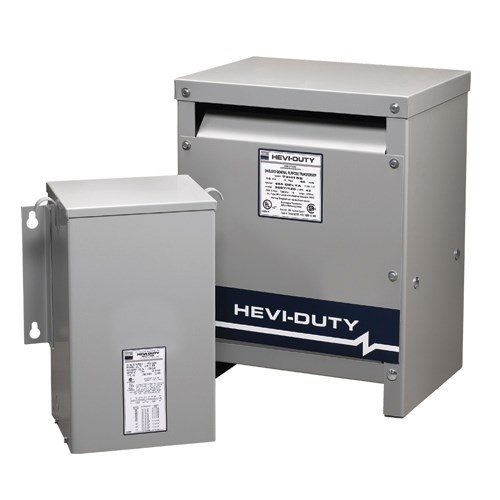

SolaHD DT651H275S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 275 kVA, 60 Hz
Custom_Product_Images_Illustration
SolaHD DT651H275S Ventilated Drive Isolation Transformer, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 275 kVA, 60 Hz
SKU300429
MFGR #DT651H275S
Your Cost: $10,091.13/ea
List: SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 275 kVA, 60 Hz, 3 Phase, Floor Mount, NEMA 3R, 46 in H x 36 in W x 24 in D
SolaHD Drive Isolation Transformer, Ventilated, 460 VAC Delta Primary, 460Y/266 VAC Secondary, 275 kVA, 60 Hz, 3 Phase, Floor Mount, NEMA 3R, 46 in H x 36 in W x 24 in D
ARRA Compliant Y Buy American Compliant Y Catalog Number DT651H275S Country of Origin US Currency USD Dimensions 46 in H x 36 in W x 24 in D Enclosure Type NEMA 3R EU RoHS Indicator Y Gross Weight Per Pack 1423.0000 lb Gross Weight per Pack Metric 645.47 Gross Weight UOM Metric kg Height 52.00 in Height [Metric] 132.0800 cm Length 42.00 in Length [Metric] 106.6800 cm Mounting Type Floor Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561UL File No. E25872cULus File No. E77014CSA C22.2 No. 66 Type Ventilated UNSPSC 39121029 UPC 11 78347254245 UPC 12 783472542451 Width 42.00 in Width [Metric] 106.6800 cm Stock Status NONSTOCK Brand SolaHD™ Manufacturer Emerson Frequency Rating 60 Hz Phase 3 pH Power Rating 275 kVA Primary Voltage 460 VAC Secondary Voltage 266/460 VAC Taps on all units for adjustments to incoming source voltage Full capacity secondary neutral as required by the National Electric Code Shielding attenuates line to ground noise Isolation minimizes load disturbances caused by the SCR drive A transformer is needed to magnetically isolate the incoming line from the motor drive The transformer must also provide a voltage change to match the required voltage of the SCR drive Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | DT651H275S |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 46 in H x 36 in W x 24 in D |
| Enclosure Type | NEMA 3R |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1423.0000 lb |
| Gross Weight per Pack Metric | 645.47 |
| Gross Weight UOM Metric | kg |
| Height | 52.00 in |
| Height [Metric] | 132.0800 cm |
| Length | 42.00 in |
| Length [Metric] | 106.6800 cm |
| Mounting Type | Floor |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506UL 1561UL File No. E25872cULus File No. E77014CSA C22.2 No. 66 |
| Type | Ventilated |
| UNSPSC | 39121029 |
| UPC 11 | 78347254245 |
| UPC 12 | 783472542451 |
| Width | 42.00 in |
| Width [Metric] | 106.6800 cm |
| Stock Status | NONSTOCK |
| Brand | SolaHD™ |
| Manufacturer | Emerson |
| Frequency Rating | 60 Hz |
| Phase | 3 pH |
| Power Rating | 275 kVA |
| Primary Voltage | 460 VAC |
| Secondary Voltage | 266/460 VAC |
| Taps on all units for adjustments to incoming source voltage |
| Full capacity secondary neutral as required by the National Electric Code |
| Shielding attenuates line to ground noise |
| Isolation minimizes load disturbances caused by the SCR drive |
| A transformer is needed to magnetically isolate the incoming line from the motor drive |
| The transformer must also provide a voltage change to match the required voltage of the SCR drive |
| Standard designs are delta primary and wye secondary to match the common power sources required in most three phase rectifier circuits |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
| Designed to handle the mechanical stresses, voltage demands and harmonics associated with SCR applications |
