Leviton®

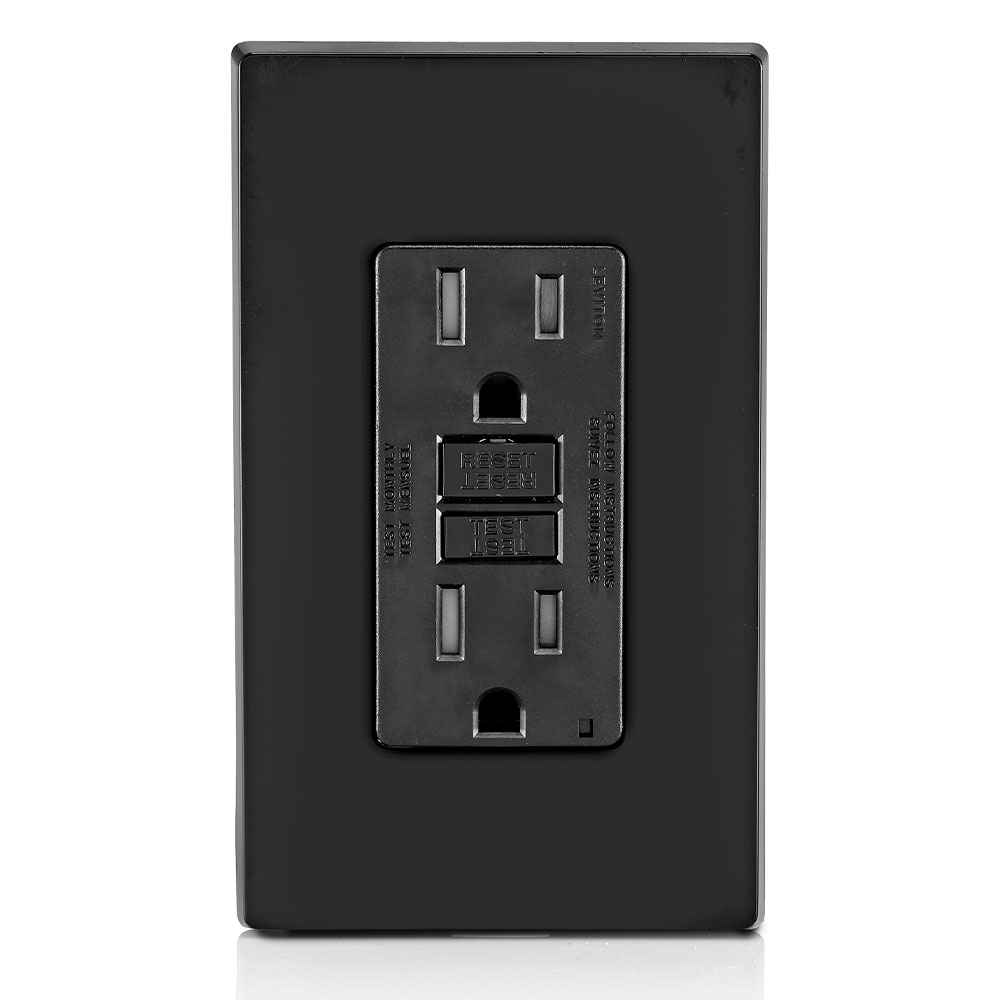

SmartlockPro® GFTR1-E Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Custom_Product_Images_Illustration
Leviton®
SmartlockPro® GFTR1-E Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
SKU888107
MFGR #GFTR1-E
Your Cost: $20.91/ea
List: Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
ARRA Compliant C Buy American Compliant C Catalog Number GFTR1-E Country of Origin CN Currency USD EU RoHS Indicator C Gross Weight Per Pack 0.3700 lb Gross Weight per Pack Metric 0.17 Gross Weight UOM Metric kg Height 6.2500 in Length 9.2500 in Standards ANSI C-73, CSA C22.2 No. 42, 144.1-06 File No. LR-57811 Certified, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NEMA WD-6, NOM Certified, RoHS Complaint, UL 498, 943 File No. E48380 Listed Sub Brand SmartlockPro® Type GFCI UNSPSC 39121406 UPC 11 07847748715 UPC 12 078477487150 Stock Status NORMALLY STOCKED Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 A Color Black Voltage Rating 125 V Tamper-Resistant Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted On initial power up, tests the GFCI within 3 seconds Auto-monitoring exceeds the UL requirement Auto adapts and shifts to more frequent testing if potential problem is detected Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault Electronics are designed to minimize any false triggers. Reduced depth makes it easier to install in any electrical box, even shallow ones Terminals allow for easy wiring options - back and side wire capable External back wire clamps provide visual indication of proper wire seating Withstands high torque and resists wire pullout. Standard brass self-grounding clip Trip threshold meets or exceeds UL requirements for tripping time Improved immunity to high-frequency noise reduces nuisance tripping Advanced electronics design provides superior resistance to electrical surges and over-voltages Compatible with all Decora devices and wallplates; available in select Decora colors Self grounding Tamper resistant 1250 VAC dielectric strength UL 94-V2 flammability Galvanized steel strap. Back and side wire connection 14 to 10 AWG
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | GFTR1-E |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3700 lb |
| Gross Weight per Pack Metric | 0.17 |
| Gross Weight UOM Metric | kg |
| Height | 6.2500 in |
| Length | 9.2500 in |
| Standards | ANSI C-73, CSA C22.2 No. 42, 144.1-06 File No. LR-57811 Certified, Federal Specification WC-596, MIL-SPEC A-A-55459-SB, NEMA WD-6, NOM Certified, RoHS Complaint, UL 498, 943 File No. E48380 Listed |
| Sub Brand | SmartlockPro® |
| Type | GFCI |
| UNSPSC | 39121406 |
| UPC 11 | 07847748715 |
| UPC 12 | 078477487150 |
| Stock Status | NORMALLY STOCKED |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 A |
| Color | Black |
| Voltage Rating | 125 V |
| Tamper-Resistant |
| Provides continuous ground fault protection - detects and trips on actual ground fault even when self-test is being conducted |
| On initial power up, tests the GFCI within 3 seconds |
| Auto-monitoring exceeds the UL requirement |
| Auto adapts and shifts to more frequent testing if potential problem is detected |
| Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal |
| Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault |
| Electronics are designed to minimize any false triggers. Reduced depth makes it easier to install in any electrical box, even shallow ones |
| Terminals allow for easy wiring options - back and side wire capable |
| External back wire clamps provide visual indication of proper wire seating |
| Withstands high torque and resists wire pullout. Standard brass self-grounding clip |
| Trip threshold meets or exceeds UL requirements for tripping time |
| Improved immunity to high-frequency noise reduces nuisance tripping |
| Advanced electronics design provides superior resistance to electrical surges and over-voltages |
| Compatible with all Decora devices and wallplates; available in select Decora colors |
| Self grounding |
| Tamper resistant |
| 1250 VAC dielectric strength |
| UL 94-V2 flammability |
| Galvanized steel strap. Back and side wire connection |
| 14 to 10 AWG |
