LevitonĀ®

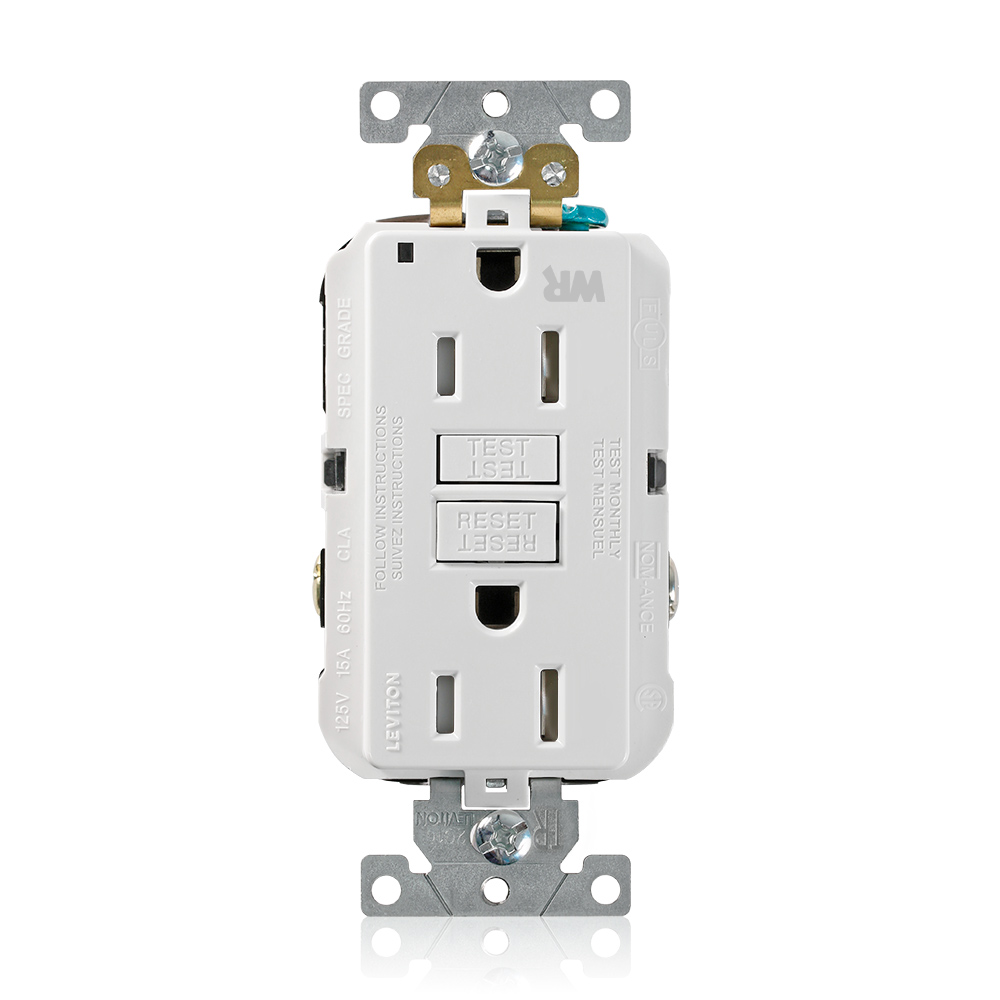

SmartlockProĀ® G5262-WTW Slim Extra Heavy Duty Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
LevitonĀ®
SmartlockProĀ® G5262-WTW Slim Extra Heavy Duty Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
SKU950888
MFGR #G5262-WTW
$/ea
Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Peace of mind, all the time. The SmartlockPro self-test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton's patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro self-test GFCI is the smart choice in ground fault circuit interrupter protection.
Application Industrial ARRA Compliant C Buy American Compliant C Catalog Number G5262-WTW Country of Origin CN Currency USD Dimensions 4.05 in H x 1.74 in W x 1.36 in D EU RoHS Indicator C Grade Extra Heavy Duty Industrial/Specification Gross Weight Per Pack 3.9300 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Height 5.0000 in Height [Metric] 10.7950 cm Horsepower 1 hp Length 9.0000 in Length [Metric] 5.7150 cm Material Polycarbonate / PBT NEMA Rating 5-15R Number Of Poles 2 Standard UL, CSA, NOM-ANCE Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73UL ListedCSA CertifiedNOM-ANCE CertifiedUL 943UL 498CSA C22.2 No. 42/144Federal Specification W-C-596 Temperature Rating -35C to +66C °C Terminal Type Back/Side Wired Type Self-test SmartLock Pro Slim GFCI UNSPSC 39121633 UPC 11 07847773096 UPC 12 078477730966 Width 1.69 in Width [Metric] 4.2875 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Industrial Weather And Tamper-Resistant Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) Improved immunity to high frequency noise reduces nuisance tripping Advanced electronics design provides superior resistance to electrical surges and over voltages Low profile design is easy to install in all electrical boxes Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost 20 A feed-through
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | G5262-WTW |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.05 in H x 1.74 in W x 1.36 in D |
| EU RoHS Indicator | C |
| Grade | Extra Heavy Duty Industrial/Specification |
| Gross Weight Per Pack | 3.9300 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Height | 5.0000 in |
| Height [Metric] | 10.7950 cm |
| Horsepower | 1 hp |
| Length | 9.0000 in |
| Length [Metric] | 5.7150 cm |
| Material | Polycarbonate / PBT |
| NEMA Rating | 5-15R |
| Number Of Poles | 2 |
| Standard | UL, CSA, NOM-ANCE |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI C73UL ListedCSA CertifiedNOM-ANCE CertifiedUL 943UL 498CSA C22.2 No. 42/144Federal Specification W-C-596 |
| Temperature Rating | -35C to +66C °C |
| Terminal Type | Back/Side Wired |
| Type | Self-test SmartLock Pro Slim GFCI |
| UNSPSC | 39121633 |
| UPC 11 | 07847773096 |
| UPC 12 | 078477730966 |
| Width | 1.69 in |
| Width [Metric] | 4.2875 cm |
| Stock Status | NONSTOCK |
| Brand | LevitonĀ® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 15 A |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 V |
| Industrial |
| Weather And Tamper-Resistant |
| Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed) |
| Improved immunity to high frequency noise reduces nuisance tripping |
| Advanced electronics design provides superior resistance to electrical surges and over voltages |
| Low profile design is easy to install in all electrical boxes |
| Patented SmartlockProĀ® protection prevents resetting when ground fault protection has been lost |
| 20 A feed-through |
