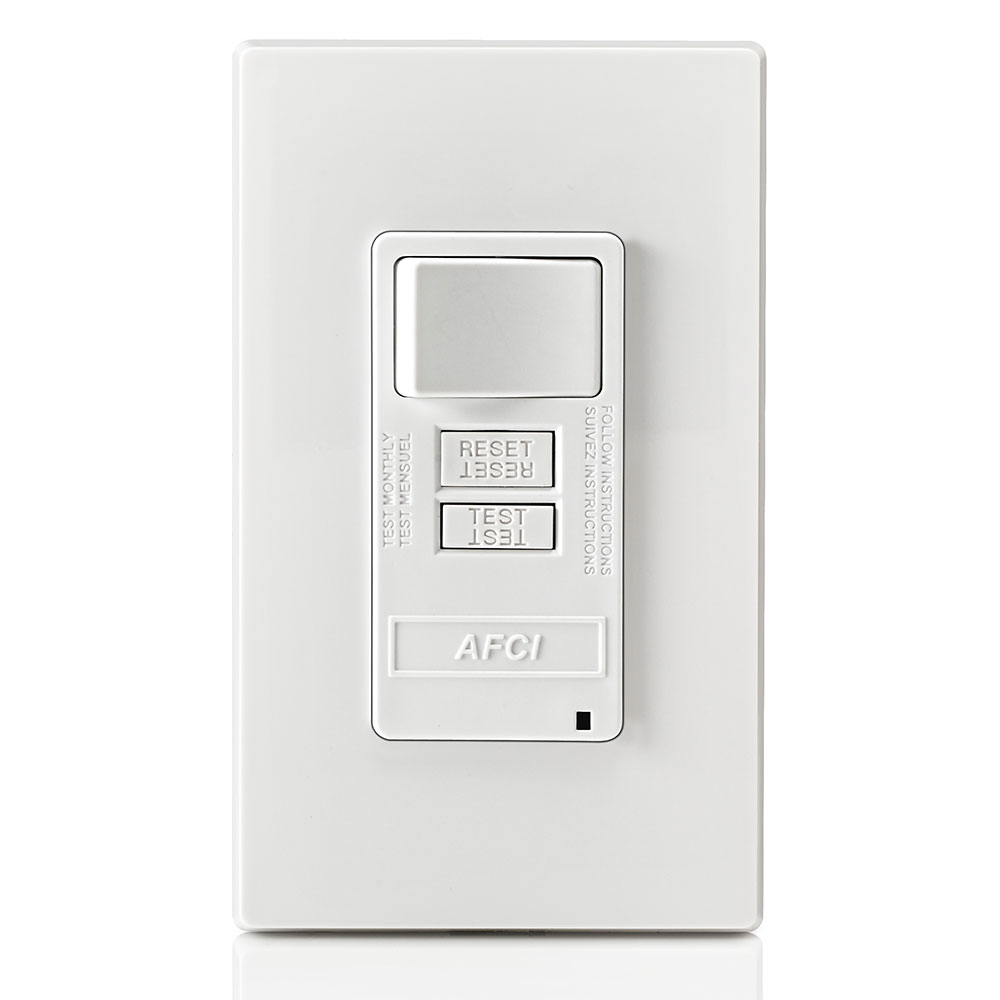

SmartlockPro® AFSW1-W AFSW1 Tamper Resistant Monochromatic Combination AFCI/Switch, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
SmartlockPro® AFSW1-W AFSW1 Tamper Resistant Monochromatic Combination AFCI/Switch, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU971304
MFGR #AFSW1-W
Your Cost: $37.90/ea
List: The SmartLockPro® outlet branch circuit (OBC) combination AFCI/Switch offers advanced technology to help protect against electrical fires resulting from arc-faults plus the convenience of a single-pole switch to control the lights. This combination is ideal for kitchens, family rooms, bedrooms, dining rooms and hallways. The AFCI switch may be used for new circuits or modifications to existing circuits where a switch is the first outlet on a branch circuit. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home's electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National electrical Code® in many areas of the home.
The SmartLockPro® outlet branch circuit (OBC) combination AFCI/Switch offers advanced technology to help protect against electrical fires resulting from arc-faults plus the convenience of a single-pole switch to control the lights. This combination is ideal for kitchens, family rooms, bedrooms, dining rooms and hallways. The AFCI switch may be used for new circuits or modifications to existing circuits where a switch is the first outlet on a branch circuit. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home's electrical system being an ignition source of a fire. Often unseen, arc-faults can occur anywhere in the home's electrical system including within walls, at loose electrical connections or within electrical cords accidently damaged by impinging furniture. AFCIs are now required by the National electrical Code® in many areas of the home.
Application Residential ARRA Compliant C Buy American Compliant C Catalog Number AFSW1-W Country of Origin CN Currency USD Dimensions 4.21 in H x 1.68 in W Electrical Ratings 125 VAC, 15 A, 1 hp, 3-Wire Enclosure NEMA 5-15R Environmental Conditions -35 to 66 deg C Operating Temperature EU RoHS Indicator C Gross Weight Per Pack 0.4000 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Height 6.0000 in Horsepower 1 hp Length 11.7500 in Material Polycarbonate Number Of Poles 2 Series AFSW1 Size 4.21 in H x 1.68 in W Standard UL/CSA Sub Brand SmartlockPro® Temperature Rating -35 to 66 °C Terminal Type Back/Side Wired Type AFCI UNSPSC 39121637 UPC 11 07847768650 UPC 12 078477686508 Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 15 A Color White Number of Wires 3 Voltage Rating 125 V Residential Combination AFCI/Switch Rated V-2 per UL94 flammability, self-grounding Withstands 1250 VAC per UL 1699A Brass-hot, green-ground, silver-neutral terminal ID Self-grounded, 14 to 10 AWG terminal accommodation Max 30 deg C after 250 cycles overload at 200% rated current temperature rise Superior resistance to electrical surges and over-voltages Brass clamp, thermoplastic face, plated-steel grounding and terminal screws, zinc-plated steel yoke, galvanized steel strap Ratings are permanently marked on device Device design reduces nuisance tripping Compatible with all Decora® devices and wallplates Automatically tests the AFCI every time the RESET button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly By blocking reset of the AFCI if protection has been compromised, the SmartLockPro® OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices A green LED indicator on the AFCI's face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state TR symbol indicates the device's compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities Impact-resistant thermoplastic cover and body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
Application | Residential |
ARRA Compliant | C |
Buy American Compliant | C |
Catalog Number | AFSW1-W |
Country of Origin | CN |
Currency | USD |
Dimensions | 4.21 in H x 1.68 in W |
Electrical Ratings | 125 VAC, 15 A, 1 hp, 3-Wire |
Enclosure | NEMA 5-15R |
Environmental Conditions | -35 to 66 deg C Operating Temperature |
EU RoHS Indicator | C |
Gross Weight Per Pack | 0.4000 lb |
Gross Weight per Pack Metric | 0.18 |
Gross Weight UOM Metric | kg |
Height | 6.0000 in |
Horsepower | 1 hp |
Length | 11.7500 in |
Material | Polycarbonate |
Number Of Poles | 2 |
Series | AFSW1 |
Size | 4.21 in H x 1.68 in W |
Standard | UL/CSA |
Sub Brand | SmartlockPro® |
Temperature Rating | -35 to 66 °C |
Terminal Type | Back/Side Wired |
Type | AFCI |
UNSPSC | 39121637 |
UPC 11 | 07847768650 |
UPC 12 | 078477686508 |
Stock Status | NONSTOCK |
Brand | Leviton® |
Manufacturer | Leviton Manufacturing Co., Inc. |
Amperage Rating | 15 A |
Color | White |
Number of Wires | 3 |
Voltage Rating | 125 V |
Residential |
Combination AFCI/Switch |
Rated V-2 per UL94 flammability, self-grounding |
Withstands 1250 VAC per UL 1699A |
Brass-hot, green-ground, silver-neutral terminal ID |
Self-grounded, 14 to 10 AWG terminal accommodation |
Max 30 deg C after 250 cycles overload at 200% rated current temperature rise |
Superior resistance to electrical surges and over-voltages |
Brass clamp, thermoplastic face, plated-steel grounding and terminal screws, zinc-plated steel yoke, galvanized steel strap |
Ratings are permanently marked on device |
Device design reduces nuisance tripping |
Compatible with all Decora® devices and wallplates |
Automatically tests the AFCI every time the RESET button is depressed, the AFCI will not reset if the AFCI circuit is not functioning properly |
By blocking reset of the AFCI if protection has been compromised, the SmartLockPro® OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised |
A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices |
A green LED indicator on the AFCI's face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state |
TR symbol indicates the device's compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities |
Impact-resistant thermoplastic cover and body |
