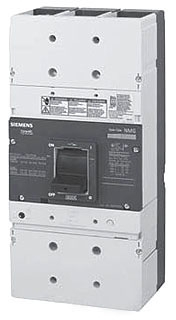

Siemens Speedfax™ VL NMX3B800 Molded Case Circuit Breaker Without Auxiliary/Alarm Switch, 480 VAC, 250 A, 3 Poles
Siemens Speedfax™ VL NMX3B800 Molded Case Circuit Breaker Without Auxiliary/Alarm Switch, 480 VAC, 250 A, 3 Poles
SKU501545
MFGR #NMX3B800
Your Cost: $23,565.04/ea
List: Siemens VL Molded Case Circuit Breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL Circuit Breakers feature N-Class (35 kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL Trip Units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Siemens VL Molded Case Circuit Breakers utilize a compact and modular design which can be configured to suit a wide range of ratings from 30 A up to 1600 A. Designed for global requirements, most breakers include the world's major standards and markings such as UL, CSA, NOM, IEC, CE and CCC. At 480 VAC, VL Circuit Breakers feature N-Class (35 kA), H-Class (65 kA) and L-Class (100 kA) interrupting ratings. They also feature both thermal magnetic and electronic trip units across the entire product line, assuring compatibility for virtually any application. VL Trip Units measure true RMS current. This type of measurement ensures the most accurate means of measuring currents in today's harmonic filled electrical distribution systems.
Alternate Catalog Number US2:NMX3B800 Application GLOBAL NON-INTERCHANGEABLE ARRA Compliant C Buy American Compliant C Catalog Number NMX3B800 Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 19 in L x 10 in W x 7 in H Enclosure Type IP20 EU RoHS Indicator C Frame 800A Frequency Rating 50/60 Hz Gross Volume Per Pack 1330.00 Gross Volume UOM in Gross Weight Per Pack 35.2900 lb Gross Weight per Pack Metric 16.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.0000 in Height [Metric] 17.7800 cm Length 19.0000 in Length [Metric] 48.2600 cm Material MOLDED CASE CIRCUIT BREAKER Mounting Type Fixed Number Of Poles 3 Operating Temperature 40 °C Phase 3 pH Returnable Y Series VL Series Standard UL Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed Sub Brand VL Temperature Rating 40 °C Type Type MG UNSPSC 39121601 UPC 11 78364349687 UPC 12 783643496873 Width 10.0000 in Width [Metric] 25.4000 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 250 A Interrupt Rating 35 kA Trip Type Non-Interchangeable Thermal Magnetic Voltage Rating 480 VAC GLOBAL NON-INTERCHANGEABLE The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory. Just two families of common internal accessories cover the complete range of VL breakers. The accessories are field installable and conveniently located in isolated pockets behind the front cover. No special tools are required Reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs Communication is possible over PROFIBUS DP or Modbus RTU with electronic trip units A wide variety of protection options ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs. Most VL breakers are also available with 100% ratings Most VL components are tested to twice the endurance specified by UL Without auxiliary/alarm switch Non-interchangeable
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | US2:NMX3B800 |
| Application | GLOBAL NON-INTERCHANGEABLE |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | NMX3B800 |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 19 in L x 10 in W x 7 in H |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frame | 800A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 1330.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 35.2900 lb |
| Gross Weight per Pack Metric | 16.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.0000 in |
| Height [Metric] | 17.7800 cm |
| Length | 19.0000 in |
| Length [Metric] | 48.2600 cm |
| Material | MOLDED CASE CIRCUIT BREAKER |
| Mounting Type | Fixed |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 pH |
| Returnable | Y |
| Series | VL Series |
| Standard | UL |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR RatedUL Listed |
| Sub Brand | VL |
| Temperature Rating | 40 °C |
| Type | Type MG |
| UNSPSC | 39121601 |
| UPC 11 | 78364349687 |
| UPC 12 | 783643496873 |
| Width | 10.0000 in |
| Width [Metric] | 25.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 250 A |
| Interrupt Rating | 35 kA |
| Trip Type | Non-Interchangeable Thermal Magnetic |
| Voltage Rating | 480 VAC |
| GLOBAL NON-INTERCHANGEABLE |
| The modularity of the VL allows for last minute adaptation, forgives changes in system design and reduces inventory. Just two families of common internal accessories cover the complete range of VL breakers. The accessories are field installable and conveniently located in isolated pockets behind the front cover. No special tools are required |
| Reduced dimensions save panel space, which can reduce the overall system design requirements and therefore material costs |
| Communication is possible over PROFIBUS DP or Modbus RTU with electronic trip units |
| A wide variety of protection options ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs |
| A wide variety of protection options, ampere ratings as well as a full basket of available accessories ensure that Siemens has the product to suit your needs. Most VL breakers are also available with 100% ratings |
| Most VL components are tested to twice the endurance specified by UL |
| Without auxiliary/alarm switch |
| Non-interchangeable |
