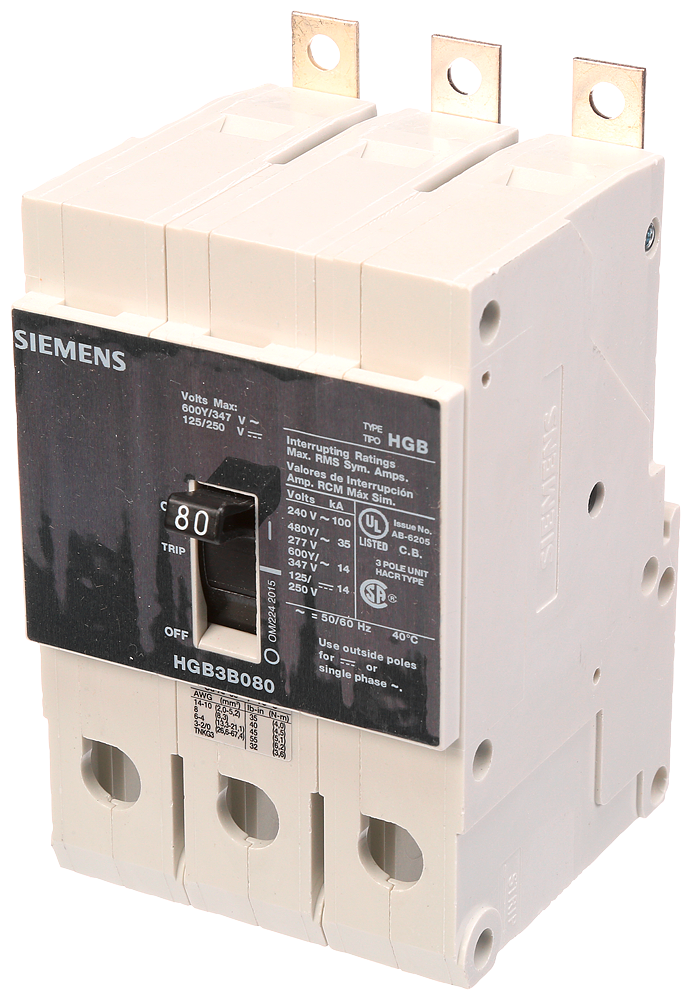

Siemens Speedfax™ VL HGB3B080B Molded Case Circuit Breaker, 480 VAC, 80 A, 35 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ VL HGB3B080B Molded Case Circuit Breaker, 480 VAC, 80 A, 35 kA Interrupt, 3 Poles
SKU880920
MFGR #HGB3B080B
Your Cost: $2,484.66/ea
List: Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 80 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Bolt-On, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 80 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Bolt-On, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Alternate Catalog Number US2:HGB3B080B ARRA Compliant C Buy American Compliant C Catalog Number HGB3B080B Connection Type Bolt-On/Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 2.96 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 42.39 Gross Volume UOM in Gross Weight Per Pack 2.7500 lb Gross Weight per Pack Metric 1.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.9900 in Height [Metric] 12.6746 cm Length 2.8700 in Length [Metric] 7.2898 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 40 °C Type Type HGB Low Voltage UNSPSC 39121601 UPC 11 88762121986 UPC 12 887621219864 Width 2.9600 in Width [Metric] 7.5184 cm Wire Size 8 to 1/0 AWG, 8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 80 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC PANELBOARD MOUNT 8 to 1/0 AWG copper, 8 to 2/0 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:HGB3B080B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HGB3B080B |
| Connection Type | Bolt-On/Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 42.39 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.7500 lb |
| Gross Weight per Pack Metric | 1.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.9900 in |
| Height [Metric] | 12.6746 cm |
| Length | 2.8700 in |
| Length [Metric] | 7.2898 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 40 °C |
| Type | Type HGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762121986 |
| UPC 12 | 887621219864 |
| Width | 2.9600 in |
| Width [Metric] | 7.5184 cm |
| Wire Size | 8 to 1/0 AWG, 8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 80 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| PANELBOARD MOUNT |
| 8 to 1/0 AWG copper, 8 to 2/0 AWG aluminum wire range |
