Siemens

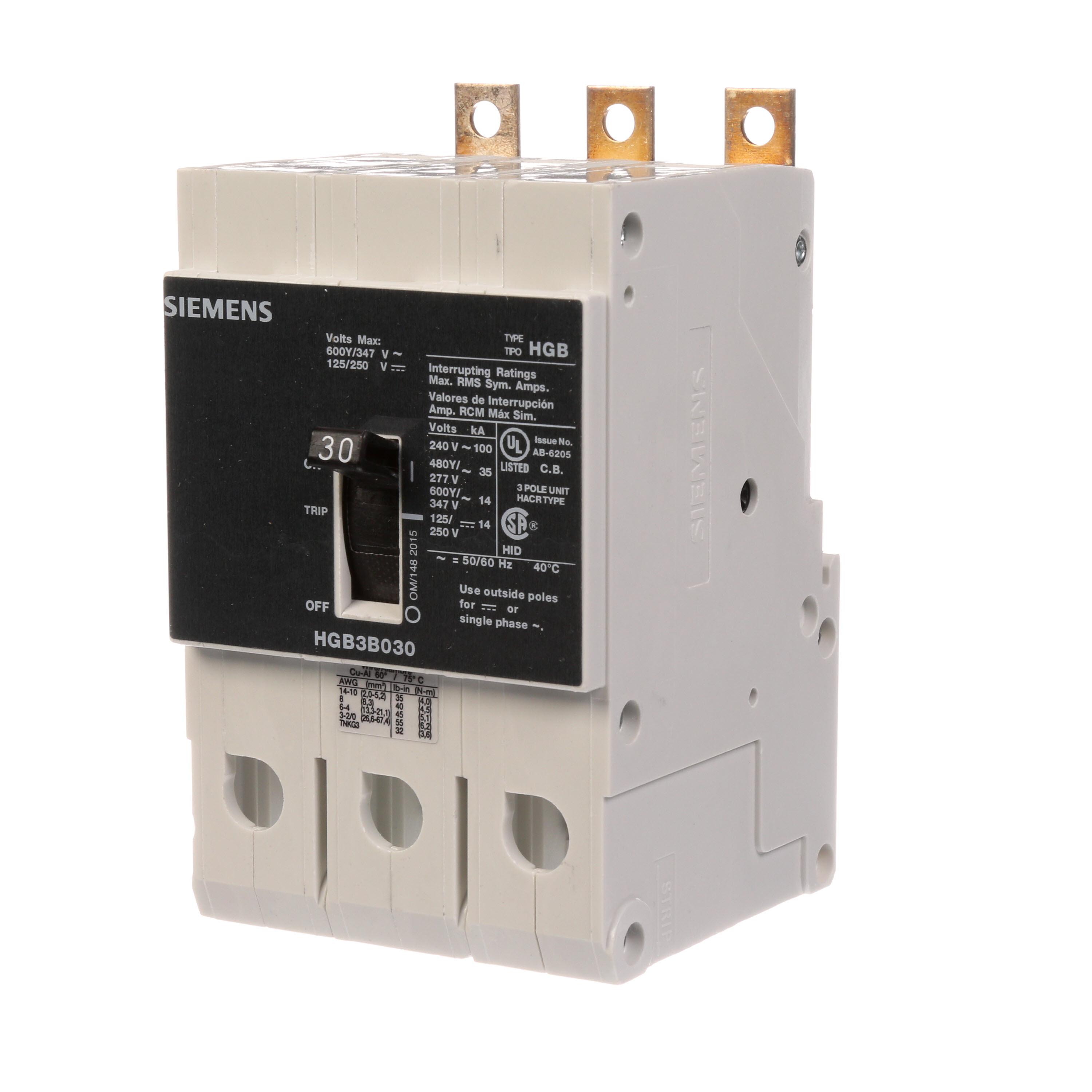

Siemens Speedfax™ VL HGB3B030B Molded Case Circuit Breaker, 480 VAC, 30 A, 35 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ VL HGB3B030B Molded Case Circuit Breaker, 480 VAC, 30 A, 35 kA Interrupt, 3 Poles
SKU880822
MFGR #HGB3B030B
Your Cost: $2,003.83/ea
List: Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 30 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Bolt-On, 14 to 6/12 to 6 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 30 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 3 Poles, 3-Phase, Bolt-On, 14 to 6/12 to 6 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Alternate Catalog Number US2:HGB3B030B ARRA Compliant C Buy American Compliant C Catalog Number HGB3B030B Connection Type Bolt-On/Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 2.96 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 135.08 Gross Volume UOM in Gross Weight Per Pack 2.7500 lb Gross Weight per Pack Metric 1.25 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.0000 in Height [Metric] 17.7800 cm Length 4.1500 in Length [Metric] 10.5410 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 40 °C Type Type HGB Low Voltage UNSPSC 39121601 UPC 11 88762121979 UPC 12 887621219796 Width 4.6500 in Width [Metric] 11.8110 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 30 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC PANELBOARD MOUNT 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:HGB3B030B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HGB3B030B |
| Connection Type | Bolt-On/Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 135.08 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 2.7500 lb |
| Gross Weight per Pack Metric | 1.25 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.0000 in |
| Height [Metric] | 17.7800 cm |
| Length | 4.1500 in |
| Length [Metric] | 10.5410 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 40 °C |
| Type | Type HGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762121979 |
| UPC 12 | 887621219796 |
| Width | 4.6500 in |
| Width [Metric] | 11.8110 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 30 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| PANELBOARD MOUNT |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range |
