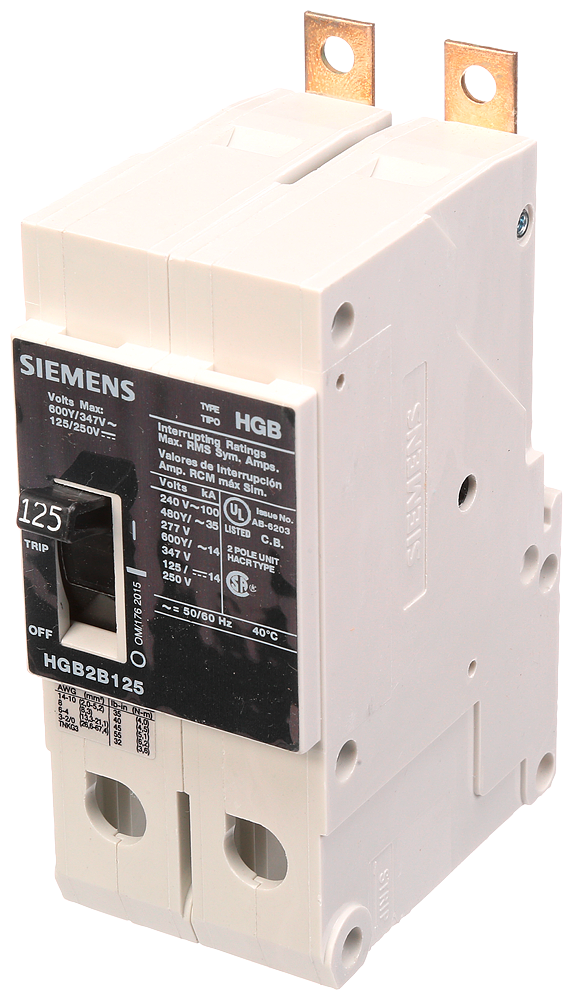

Siemens Speedfax™ VL HGB2B125B Molded Case Circuit Breaker, 480 VAC, 125 A, 35 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ VL HGB2B125B Molded Case Circuit Breaker, 480 VAC, 125 A, 35 kA Interrupt, 2 Poles
SKU880912
MFGR #HGB2B125B
Your Cost: $3,393.84/ea
List: Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 125 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Bolt-On, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Siemens Speedfax™ VL Molded Case Circuit Breaker, 480 VAC, 125 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Bolt-On, 8 to 1/0/8 to 2/0 AWG Wire, Panel Mount, 40 deg C, 2.87 in L x 2.96 in W x 4.99 in H
Alternate Catalog Number US2:HGB2B125B ARRA Compliant C Buy American Compliant C Catalog Number HGB2B125B Connection Type Bolt-On/Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 2.96 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 353.63 Gross Volume UOM in Gross Weight Per Pack 1.8500 lb Gross Weight per Pack Metric 0.84 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.7000 in Height [Metric] 11.9380 cm Length 4.5000 in Length [Metric] 11.4300 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable N Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 40 °C Type Type HGB Low Voltage UNSPSC 39121601 UPC 11 88762121975 UPC 12 887621219758 Width 5.7000 in Width [Metric] 14.4780 cm Wire Size 8 to 1/0 AWG, 8 to 2/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 125 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 480 VAC PANELBOARD MOUNT 8 to 1/0 AWG copper, 8 to 2/0 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:HGB2B125B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HGB2B125B |
| Connection Type | Bolt-On/Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 2.96 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 353.63 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.8500 lb |
| Gross Weight per Pack Metric | 0.84 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.7000 in |
| Height [Metric] | 11.9380 cm |
| Length | 4.5000 in |
| Length [Metric] | 11.4300 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 40 °C |
| Type | Type HGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762121975 |
| UPC 12 | 887621219758 |
| Width | 5.7000 in |
| Width [Metric] | 14.4780 cm |
| Wire Size | 8 to 1/0 AWG, 8 to 2/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 125 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 480 VAC |
| PANELBOARD MOUNT |
| 8 to 1/0 AWG copper, 8 to 2/0 AWG aluminum wire range |
