Siemens

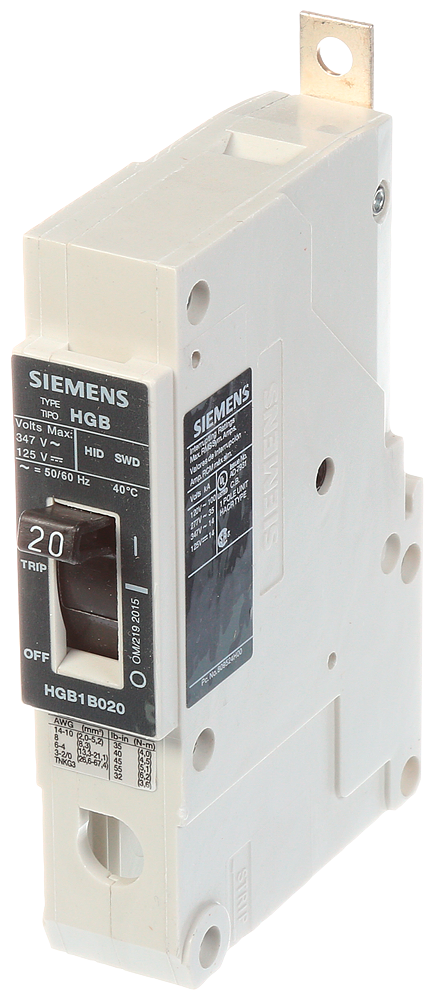

Siemens Speedfax™ VL HGB1B020B Molded Case Circuit Breaker, 277 VAC, 20 A, 35 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ VL HGB1B020B Molded Case Circuit Breaker, 277 VAC, 20 A, 35 kA Interrupt, 1 Pole
SKU880872
MFGR #HGB1B020B
Your Cost: $651.17/ea
List: Siemens Speedfax™ VL Molded Case Circuit Breaker, 277 VAC, 20 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 1 Pole, 1-Phase, 14 to 6/12 to 6 AWG Wire, Panel Mount, 40 deg C, 2.8 in L x 0.97 in W x 4.9 in H
Siemens Speedfax™ VL Molded Case Circuit Breaker, 277 VAC, 20 A, 50/60 Hz, 35 kA Interrupt, HGB/125 A Frame, Thermal Magnetic Trip, 1 Pole, 1-Phase, 14 to 6/12 to 6 AWG Wire, Panel Mount, 40 deg C, 2.8 in L x 0.97 in W x 4.9 in H
Alternate Catalog Number US2:HGB1B020B ARRA Compliant C Buy American Compliant C Catalog Number HGB1B020B Connection Type Low Tab Country of Origin MX Currency USD Dimensions 2.87 in L x 0.97 in W x 4.99 in H EU RoHS Indicator C Frame 125 A Frequency Rating 50/60 Hz Gross Volume Per Pack 57.97 Gross Volume UOM in Gross Weight Per Pack 0.8050 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 1.5500 in Height [Metric] 3.9370 cm Length 6.8000 in Length [Metric] 17.2720 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable Y Standard UL/CSA/IEC/NOM Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Temperature Rating 40 °C Type Type HGB Low Voltage UNSPSC 39121601 UPC 11 88762121847 UPC 12 887621218478 Width 5.5000 in Width [Metric] 13.9700 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 277 VAC PANELBOARD MOUNT 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:HGB1B020B |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HGB1B020B |
| Connection Type | Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.87 in L x 0.97 in W x 4.99 in H |
| EU RoHS Indicator | C |
| Frame | 125 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 57.97 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.8050 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 1.5500 in |
| Height [Metric] | 3.9370 cm |
| Length | 6.8000 in |
| Length [Metric] | 17.2720 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL/CSA/IEC/NOM |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Temperature Rating | 40 °C |
| Type | Type HGB Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 88762121847 |
| UPC 12 | 887621218478 |
| Width | 5.5000 in |
| Width [Metric] | 13.9700 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| PANELBOARD MOUNT |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range |
