Siemens

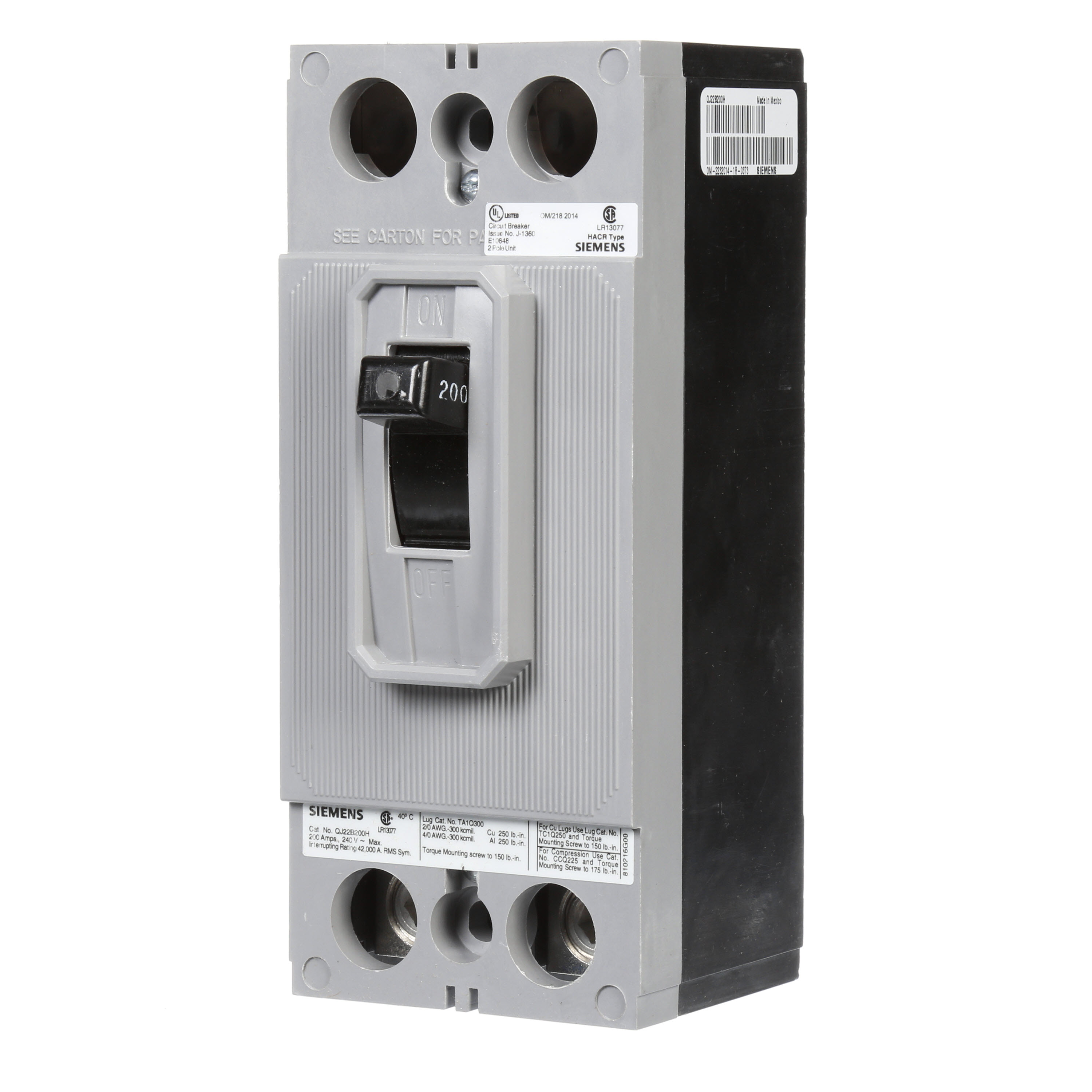

Siemens Speedfax™ QJ22B200H Molded Case Circuit Breaker, 240 VAC, 200 A, 42 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ QJ22B200H Molded Case Circuit Breaker, 240 VAC, 200 A, 42 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU386312
MFGR #QJ22B200H
Your Cost: $864.31/ea
List: Siemens Speedfax™ Molded Case Circuit Breaker, 240 VAC, 200 A, 50/60 Hz, 42 kA Interrupt, QJ/225A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Load Lug, 6 AWG to 300 kcmil/4 AWG to 300 kcmil Wire, NEMA 1/3R, 40 deg C, 4.9 in L x 4.3 in W x 7.4 in H
Siemens Speedfax™ Molded Case Circuit Breaker, 240 VAC, 200 A, 50/60 Hz, 42 kA Interrupt, QJ/225A Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Load Lug, 6 AWG to 300 kcmil/4 AWG to 300 kcmil Wire, NEMA 1/3R, 40 deg C, 4.9 in L x 4.3 in W x 7.4 in H
Application GENERAL APPLICATION ARRA Compliant C Buy American Compliant C Catalog Number QJ22B200H Connection Type Load Lug Country of Origin MX Currency USD Dimensions 4.9 in L x 4.3 in W x 7.4 in H Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QJ2H/225A Frequency Rating 50/60 Hz Gross Weight Per Pack 2.8500 lb Gross Weight per Pack Metric 1.29 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.40 in Height [Metric] 18.7960 cm Length 4.90 in Length [Metric] 12.4460 cm Number Of Poles 2 Phase 1 Returnable N Standards ARRA CompliantBuy American Act CompliantRoHS CompliantHACR Rated Temperature Rating 40 °C Type Type QJ2H Low Voltage UNSPSC 39121601 UPC 11 78364319395 UPC 12 783643193956 Width 4.30 in Width [Metric] 10.9220 cm Wire Size 6 AWG to 300 kcmil, 4 AWG to 300 kcmil Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 42 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC GENERAL APPLICATION Non-interchangeable trip (LI) long-time and instantaneous trip functions 6 AWG to 300 kcmil copper, 4 AWG to 300 kcmil aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | GENERAL APPLICATION |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | QJ22B200H |
| Connection Type | Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.9 in L x 4.3 in W x 7.4 in H |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QJ2H/225A |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 2.8500 lb |
| Gross Weight per Pack Metric | 1.29 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.40 in |
| Height [Metric] | 18.7960 cm |
| Length | 4.90 in |
| Length [Metric] | 12.4460 cm |
| Number Of Poles | 2 |
| Phase | 1 |
| Returnable | N |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantHACR Rated |
| Temperature Rating | 40 °C |
| Type | Type QJ2H Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364319395 |
| UPC 12 | 783643193956 |
| Width | 4.30 in |
| Width [Metric] | 10.9220 cm |
| Wire Size | 6 AWG to 300 kcmil, 4 AWG to 300 kcmil |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 42 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| GENERAL APPLICATION |
| Non-interchangeable trip |
| (LI) long-time and instantaneous trip functions |
| 6 AWG to 300 kcmil copper, 4 AWG to 300 kcmil aluminum |
