Siemens

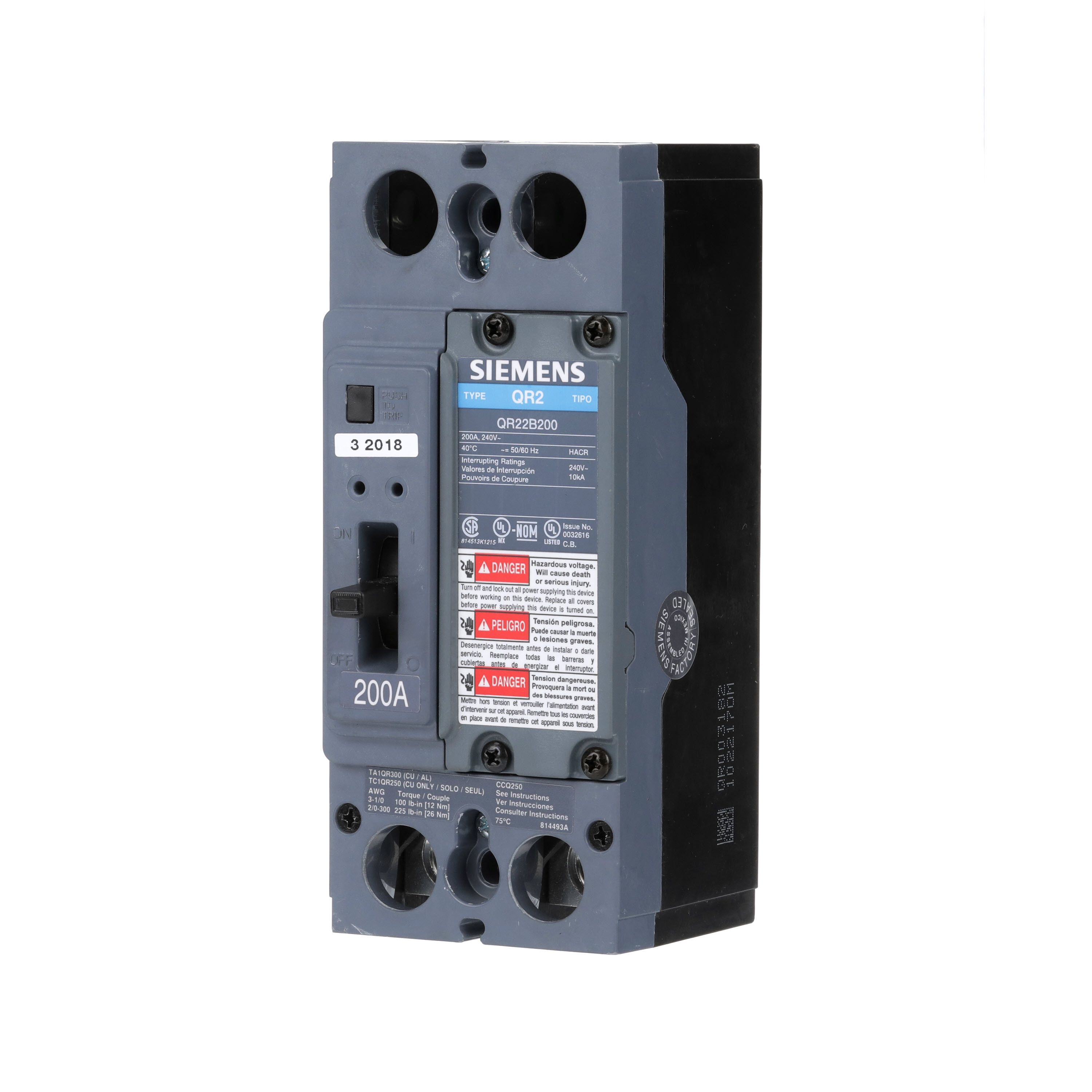

Siemens Speedfax™ HQR22B200L Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 65 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ HQR22B200L Low Voltage Molded Case Circuit Breaker, 240 VAC, 200 A, 65 kA Interrupt, 2 Poles
SKU991906
MFGR #HQR22B200L
Your Cost: $1,139.93/ea
List: Siemens Speedfax™ Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 65 kA Interrupt, QR Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Line/Load Lug, 3 AWG to 300 kcmil Cu/6 AWG to 350 kcmil Al/Cu Wire, NEMA 1/3R, 40 deg C, 7 in H x 3 in W x 2.53 in D
Siemens Speedfax™ Molded Case Circuit Breaker, Low Voltage, 240 VAC, 200 A, 50/60 Hz, 65 kA Interrupt, QR Frame, Thermal Magnetic Trip, 2 Poles, 1-Phase, Line/Load Lug, 3 AWG to 300 kcmil Cu/6 AWG to 350 kcmil Al/Cu Wire, NEMA 1/3R, 40 deg C, 7 in H x 3 in W x 2.53 in D
Alternate Catalog Number US2:HQR22B200L ARRA Compliant C Buy American Compliant C Catalog Number HQR22B200L Connection Type Line/Load Lug Country of Origin MX Currency USD Dimensions 7 in H x 3 in W x 2.53 in D Enclosure Type NEMA 1/3R EU RoHS Indicator C Frame QR Frequency Rating 50/60 Hz Gross Volume Per Pack 2361.19 Gross Volume UOM in Gross Weight Per Pack 3.2000 lb Gross Weight per Pack Metric 1.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 7.3500 in Height [Metric] 18.6690 cm Length 5.0000 in Length [Metric] 12.7000 cm Number Of Poles 2 Phase 1 pH Returnable Y Standard UL489/CSA-C22.2/NOM-003 Standards UL 489CSA 22.2HACR Rated Temperature Rating 40 °C Type Low Voltage UNSPSC 39121601 UPC 11 80476613643 UPC 12 804766136436 Width 4.5000 in Width [Metric] 11.4300 cm Wire Size 3 AWG to 300 kcmil Cu/6 AWG to 350 kcmil Al/Cu Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 200 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC FIELD INSTALLABLE INTERNAL ACCESSORIES
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:HQR22B200L |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HQR22B200L |
| Connection Type | Line/Load Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 7 in H x 3 in W x 2.53 in D |
| Enclosure Type | NEMA 1/3R |
| EU RoHS Indicator | C |
| Frame | QR |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 2361.19 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 3.2000 lb |
| Gross Weight per Pack Metric | 1.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 7.3500 in |
| Height [Metric] | 18.6690 cm |
| Length | 5.0000 in |
| Length [Metric] | 12.7000 cm |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL489/CSA-C22.2/NOM-003 |
| Standards | UL 489CSA 22.2HACR Rated |
| Temperature Rating | 40 °C |
| Type | Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 80476613643 |
| UPC 12 | 804766136436 |
| Width | 4.5000 in |
| Width [Metric] | 11.4300 cm |
| Wire Size | 3 AWG to 300 kcmil Cu/6 AWG to 350 kcmil Al/Cu |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 200 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| FIELD INSTALLABLE INTERNAL ACCESSORIES |
