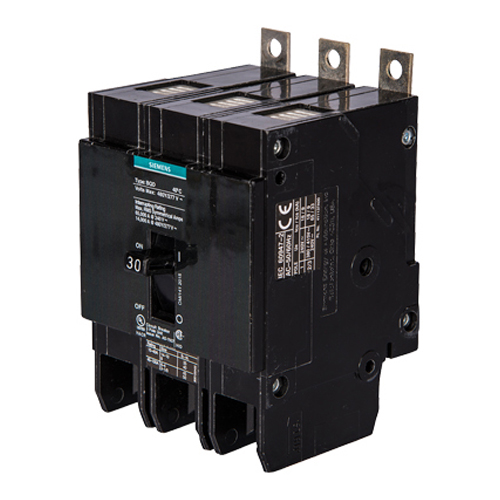

Siemens Speedfax™ BQD6330 Molded Case Circuit Breaker, 347/600 VAC, 30 A, 10 kA Interrupt, 3 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ BQD6330 Molded Case Circuit Breaker, 347/600 VAC, 30 A, 10 kA Interrupt, 3 Poles
SKU383810
MFGR #BQD6330
Your Cost: $543.19/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Alternate Catalog Number US2:BQD6330 ARRA Compliant C Buy American Compliant C Catalog Number BQD6330 Color Black Connection Type Low Tab Country of Origin MX Currency USD Dimensions 3 in L x 3 in W x 5 in H EU RoHS Indicator C Frame 100 A Frequency Rating 50/60 Hz Gross Volume Per Pack 94.63 Gross Volume UOM in Gross Weight Per Pack 1.7300 lb Gross Weight per Pack Metric 0.78 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.6500 in Height [Metric] 9.2710 cm Length 6.1000 in Length [Metric] 15.4940 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Replaced Catalog Number BQD6330BP Returnable Y Standard UL489CSA-C22.2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 Temperature Rating 40 °C Type Type BQD Low Voltage UNSPSC 39121601 UPC 11 78364330456 UPC 12 783643304567 Width 4.2500 in Width [Metric] 10.7950 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 30 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 600/347 VAC PANELBOARD MOUNT 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range Low tab connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | US2:BQD6330 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQD6330 |
| Color | Black |
| Connection Type | Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 3 in W x 5 in H |
| EU RoHS Indicator | C |
| Frame | 100 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 94.63 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.7300 lb |
| Gross Weight per Pack Metric | 0.78 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.6500 in |
| Height [Metric] | 9.2710 cm |
| Length | 6.1000 in |
| Length [Metric] | 15.4940 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Replaced Catalog Number | BQD6330BP |
| Returnable | Y |
| Standard | UL489CSA-C22.2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 |
| Temperature Rating | 40 °C |
| Type | Type BQD Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364330456 |
| UPC 12 | 783643304567 |
| Width | 4.2500 in |
| Width [Metric] | 10.7950 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 30 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 600/347 VAC |
| PANELBOARD MOUNT |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range |
| Low tab connection |
