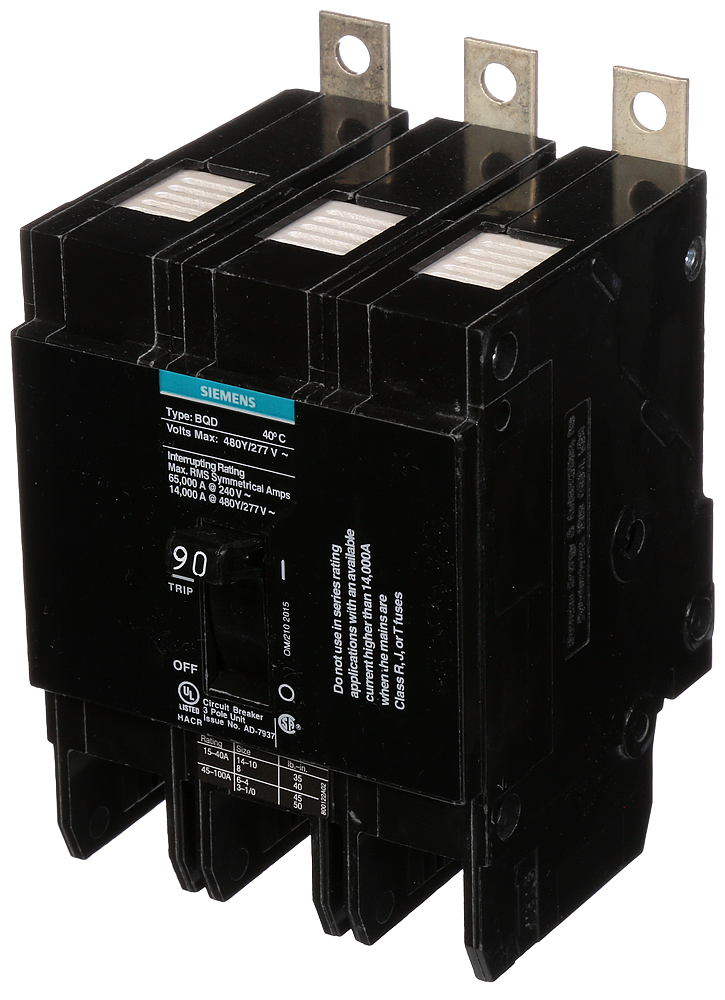

Siemens Speedfax™ BQD390 Molded Case Circuit Breaker, 277/480 VAC, 90 A, 14 kA Interrupt, 3 Poles, Thermal Magnetic Trip

Custom_Product_Images_Illustration

SKU93234

MFGR #BQD390

Your Cost: $656.95/ea

List: ~~$1,825.00~~ /ea

SIEMENS BQD390 3P 90A 277/480V CB

: Actuator Type
Toggle
Alternate Catalog Number
US2:BQD390
ARRA Compliant
C
Buy American Compliant
C
Catalog Number
BQD390
Color
Black
Connection Type
Low Tab
Country of Origin
MX
Currency
USD
Dimensions
5 in L x 3 in W x 3 in H
EU RoHS Indicator
C
Frame
100 A
Frequency Rating
50/60 Hz
Gross Volume Per Pack
45.00
Gross Volume UOM
in
Gross Weight Per Pack
1.7330 lb
Gross Weight per Pack Metric
0.79
Gross Weight UOM Metric
kg
Harmonization Tariff Schedule Code
8536200020
Height
3.0000 in
Height [Metric]
7.6200 cm
Length
5.0000 in
Length [Metric]
12.7000 cm
Mounting Type
Panel
Number Of Poles
3
Phase
3 pH
Returnable
Y
Standard
UL489CSA-C22.2
Standards
ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2
Temperature Rating
40 °C
Type
Type BQD
UNSPSC
39121601
UPC 11
78364327745
UPC 12
783643277458
Width
3.0000 in
Width [Metric]
7.6200 cm
Wire Size
8 to 1 AWG, 6 to 1/0 AWG
Stock Status
NONSTOCK
Brand
Siemens
Manufacturer
Siemens
Amperage Rating
90 A
Interrupt Rating
14 kA
Trip Type
Thermal Magnetic
Voltage Rating
277/480 VAC
: Brochure
Catalog
Seller Home Page
Spec Sheet 1
Spec Sheet
Spec Sheet
User Manual
: PANELBOARD MOUNT

8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire

Non-interchangeable fixed thermal magnetic trip

Low tab connection

Actuator Type	Toggle
Alternate Catalog Number	US2:BQD390
ARRA Compliant	C
Buy American Compliant	C
Catalog Number	BQD390
Color	Black
Connection Type	Low Tab
Country of Origin	MX
Currency	USD
Dimensions	5 in L x 3 in W x 3 in H
EU RoHS Indicator	C
Frame	100 A
Frequency Rating	50/60 Hz
Gross Volume Per Pack	45.00
Gross Volume UOM	in
Gross Weight Per Pack	1.7330 lb
Gross Weight per Pack Metric	0.79
Gross Weight UOM Metric	kg
Harmonization Tariff Schedule Code	8536200020
Height	3.0000 in
Height [Metric]	7.6200 cm
Length	5.0000 in
Length [Metric]	12.7000 cm
Mounting Type	Panel
Number Of Poles	3
Phase	3 pH
Returnable	Y
Standard	UL489CSA-C22.2
Standards	ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2
Temperature Rating	40 °C
Type	Type BQD
UNSPSC	39121601
UPC 11	78364327745
UPC 12	783643277458
Width	3.0000 in
Width [Metric]	7.6200 cm
Wire Size	8 to 1 AWG, 6 to 1/0 AWG
Stock Status	NONSTOCK
Brand	Siemens
Manufacturer	Siemens
Amperage Rating	90 A
Interrupt Rating	14 kA
Trip Type	Thermal Magnetic
Voltage Rating	277/480 VAC
