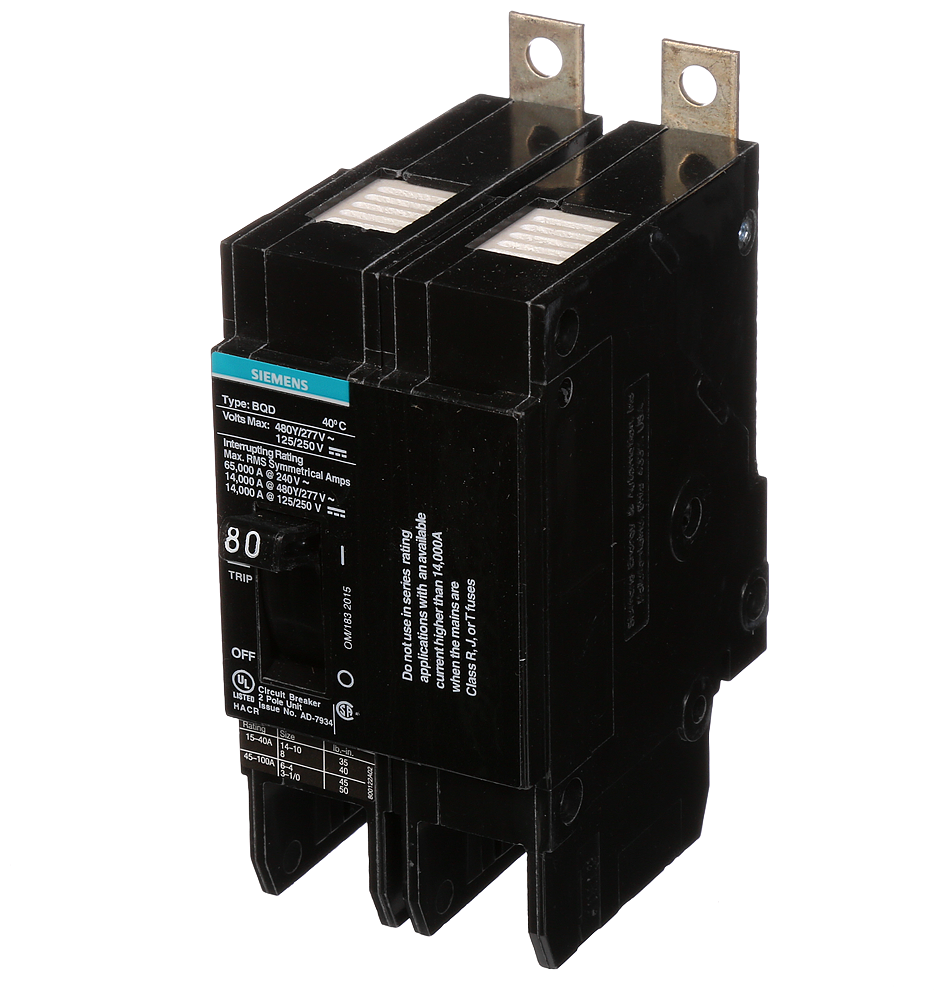

Siemens Speedfax™ BQD280 Molded Case Circuit Breaker, 480 VAC/250 VDC, 80 A, 14 kA Interrupt, 2 Poles
Molded Case Circuit Breakers
93231
MFG #: BQD280
Siemens
553.28000
/ ea
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for onescrew installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
- Brochure URL - Siemens-Molded-Case-Circuit-Breakers-GenApp-Catalog-BQD_CQD_Product_Guide.pdf(Brochure URL)
- Catalog URL - Siemens_B215HHNAV_Brochuer_1.pdf(Catalog URL)
- Spec Sheet 1 URL - ID-SPE-v2-SF17-07-032.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10991_A4VWRZN3FCSBPHL1.pdf(Spec Sheet URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:BQD280&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=US2:BQD280&language=en(Spec Sheet URL)
- Spec Sheet URL - SF17-07-032.pdf(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| PANELBOARD MOUNT |
| 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire |
| Low tab connection |
| 277/480 VAC/125/250 VDC |
