Siemens

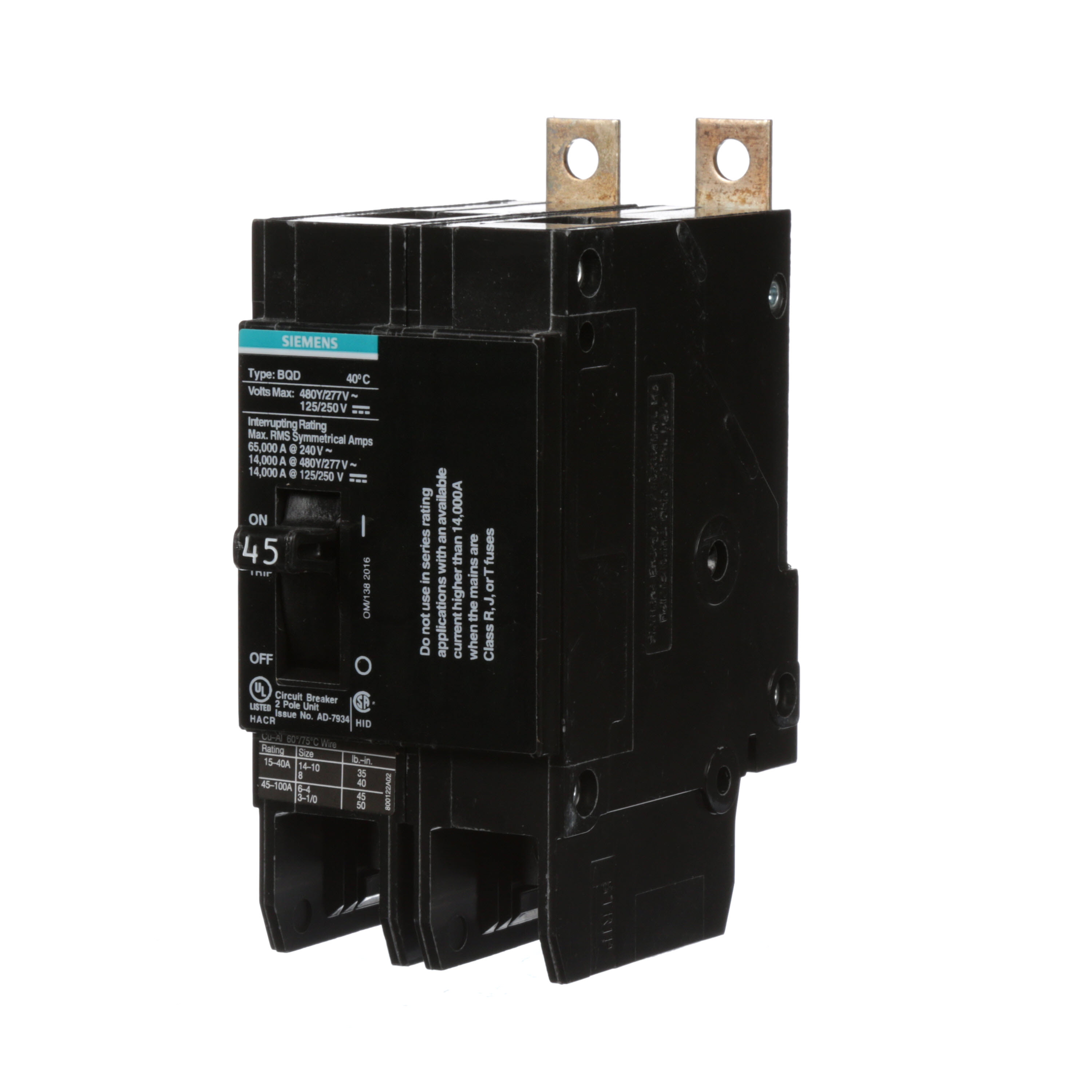

Siemens Speedfax™ BQD245 Molded Case Circuit Breaker, 480 VAC/250 VDC, 45 A, 14 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ BQD245 Molded Case Circuit Breaker, 480 VAC/250 VDC, 45 A, 14 kA Interrupt, 2 Poles
SKU464465
MFGR #BQD245
Your Cost: $294.81/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Actuator Type Toggle Alternate Catalog Number US2:BQD245 ARRA Compliant C Buy American Compliant C Catalog Number BQD245 Color Black Connection Type Low Tab Country of Origin MX Currency USD Dimensions 4 in L x 3 in W x 2 in H EU RoHS Indicator C Frame 100 A Frequency Rating 50/60 Hz Gross Volume Per Pack 88.12 Gross Volume UOM in Gross Weight Per Pack 1.1000 lb Gross Weight per Pack Metric 0.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 5.5500 in Height [Metric] 14.0970 cm Length 4.3500 in Length [Metric] 11.0490 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard UL489CSA-C22.2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 Temperature Rating 40 °C Type Type BQD UNSPSC 39121601 UPC 11 78364327727 UPC 12 783643277274 Width 3.6500 in Width [Metric] 9.2710 cm Wire Size 8 to 1 AWG, 6 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 45 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 277/480 VAC PANELBOARD MOUNT 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire 480Y/277 VAC and 125/250 VDC, HID rated at 480Y/277 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQD245 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQD245 |
| Color | Black |
| Connection Type | Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 3 in W x 2 in H |
| EU RoHS Indicator | C |
| Frame | 100 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 88.12 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.1000 lb |
| Gross Weight per Pack Metric | 0.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 5.5500 in |
| Height [Metric] | 14.0970 cm |
| Length | 4.3500 in |
| Length [Metric] | 11.0490 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL489CSA-C22.2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2 |
| Temperature Rating | 40 °C |
| Type | Type BQD |
| UNSPSC | 39121601 |
| UPC 11 | 78364327727 |
| UPC 12 | 783643277274 |
| Width | 3.6500 in |
| Width [Metric] | 9.2710 cm |
| Wire Size | 8 to 1 AWG, 6 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 45 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480 VAC |
| PANELBOARD MOUNT |
| 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire |
| 480Y/277 VAC and 125/250 VDC, HID rated at 480Y/277 VAC |
