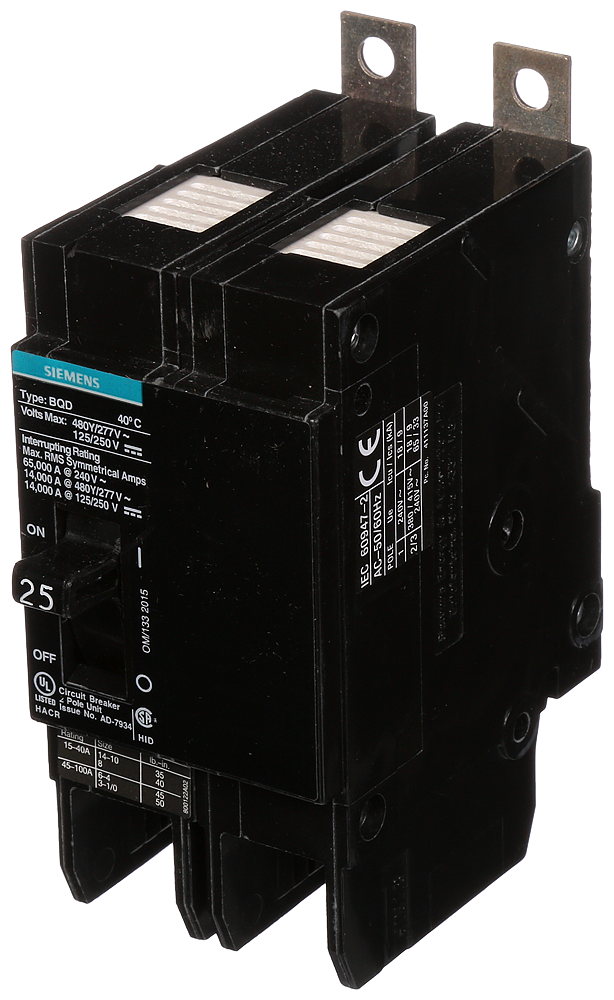

Siemens Speedfax™ BQD225 Molded Case Circuit Breaker, 480 VAC/250 VDC, 25 A, 14 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ BQD225 Molded Case Circuit Breaker, 480 VAC/250 VDC, 25 A, 14 kA Interrupt, 2 Poles
SKU240976
MFGR #BQD225
Your Cost: $275.38/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for onescrew installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for onescrew installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Actuator Type Toggle Alternate Catalog Number US2:BQD225 ARRA Compliant C Buy American Compliant C Catalog Number BQD225 Color Black Connection Type Low Tab Country of Origin MX Currency USD Dimensions 4.1 in L x 2 in W x 2.9 in H EU RoHS Indicator C Frame 100 A Frequency Rating 50/60 Hz Gross Volume Per Pack 56.00 Gross Volume UOM in Gross Weight Per Pack 1.0000 lb Gross Weight per Pack Metric 0.45 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.5000 in Height [Metric] 8.8900 cm Length 4.0000 in Length [Metric] 10.1600 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard UL489CSA-C22.2IEC60947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2IEC 60947-2 Temperature Rating 40 °C Type Type BQD UNSPSC 39121601 UPC 11 78364327723 UPC 12 783643277236 Width 4.0000 in Width [Metric] 10.1600 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 25 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 277/480 VAC/125/250 VDC PANELBOARD MOUNT 14 to 6 AWG copper, 12 to 6 AWG aluminum wire Low tab connection 277/480 VAC/125/250 VDC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQD225 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQD225 |
| Color | Black |
| Connection Type | Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4.1 in L x 2 in W x 2.9 in H |
| EU RoHS Indicator | C |
| Frame | 100 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 56.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0000 lb |
| Gross Weight per Pack Metric | 0.45 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.5000 in |
| Height [Metric] | 8.8900 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL489CSA-C22.2IEC60947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2IEC 60947-2 |
| Temperature Rating | 40 °C |
| Type | Type BQD |
| UNSPSC | 39121601 |
| UPC 11 | 78364327723 |
| UPC 12 | 783643277236 |
| Width | 4.0000 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 25 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480 VAC/125/250 VDC |
| PANELBOARD MOUNT |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire |
| Low tab connection |
| 277/480 VAC/125/250 VDC |
