Siemens

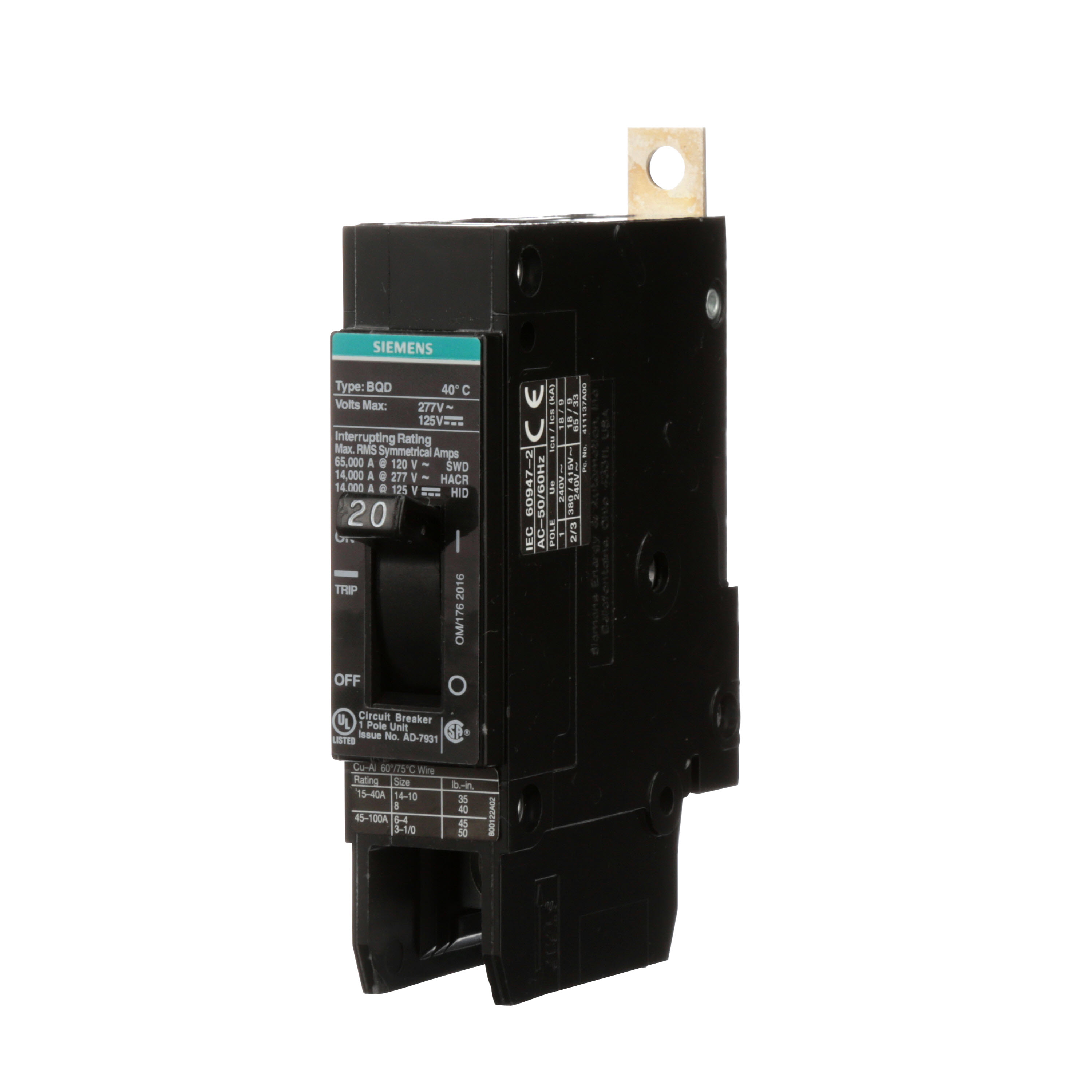

Siemens Speedfax™ BQD120BP Molded Case Circuit Breaker, 277 VAC, 20 A, 14 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens
Siemens Speedfax™ BQD120BP Molded Case Circuit Breaker, 277 VAC, 20 A, 14 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU801304
MFGR #BQD120BP
Your Cost: $113.75/ea
List: Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15A to 20A and HID ratings from 15A to 50A.
Actuator Type Toggle Alternate Catalog Number US2:BQD120BP ARRA Compliant C Buy American Compliant C Catalog Number BQD120BP Color Black Connection Type Low Tab Country of Origin MX Currency USD Dimensions 5 in L x 3 in W x 1 in H EU RoHS Indicator C Frame 100 A Frequency Rating 50/60 Hz Gross Volume Per Pack 15.00 Gross Volume UOM in Gross Weight Per Pack 0.5400 lb Gross Weight per Pack Metric 0.24 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 1.0000 in Height [Metric] 2.5400 cm Length 5.0000 in Length [Metric] 12.7000 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable Y Standard UL489CSA-C22.2IEC60947-2 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2IEC 60 947-2 Temperature Rating 40 °C Type Type BQD UNSPSC 39121601 UPC 11 78364331960 UPC 12 783643319608 Width 3.0000 in Width [Metric] 7.6200 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 14 kA Trip Type Thermal Magnetic Voltage Rating 277 VAC PANELBOARD MOUNT/BULK PACK 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range Bulk pack Low tab connection
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQD120BP |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQD120BP |
| Color | Black |
| Connection Type | Low Tab |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 5 in L x 3 in W x 1 in H |
| EU RoHS Indicator | C |
| Frame | 100 A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 15.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.5400 lb |
| Gross Weight per Pack Metric | 0.24 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 1.0000 in |
| Height [Metric] | 2.5400 cm |
| Length | 5.0000 in |
| Length [Metric] | 12.7000 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL489CSA-C22.2IEC60947-2 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489CSA C22.2IEC 60 947-2 |
| Temperature Rating | 40 °C |
| Type | Type BQD |
| UNSPSC | 39121601 |
| UPC 11 | 78364331960 |
| UPC 12 | 783643319608 |
| Width | 3.0000 in |
| Width [Metric] | 7.6200 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 14 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277 VAC |
| PANELBOARD MOUNT/BULK PACK |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire range |
| Bulk pack |
| Low tab connection |
