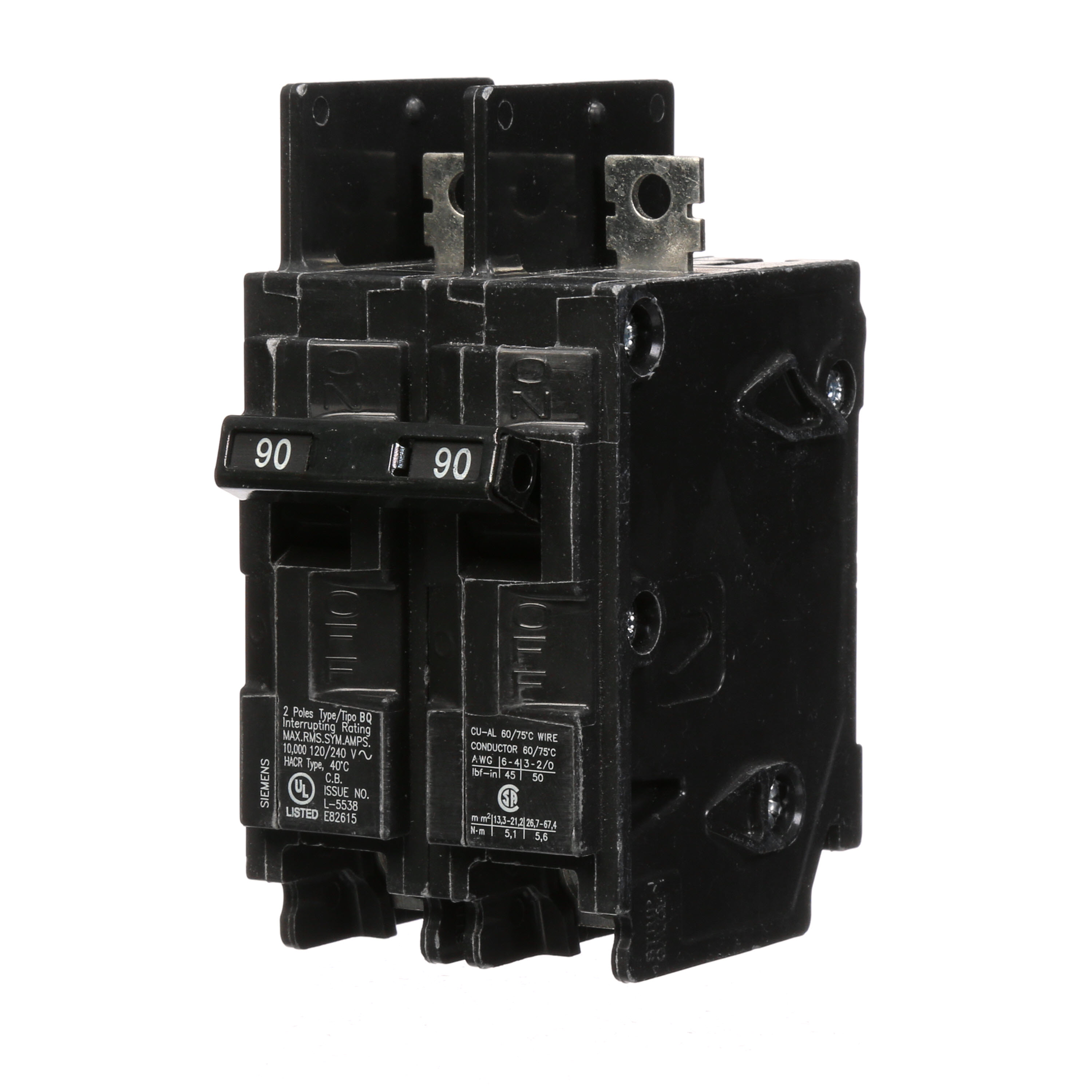

Siemens Speedfax™ BQ2B090 Molded Case Circuit Breaker, 120/240 VAC, 90 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ BQ2B090 Molded Case Circuit Breaker, 120/240 VAC, 90 A, 10 kA Interrupt, 2 Poles
SKU92866
MFGR #BQ2B090
Your Cost: $417.58/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Actuator Type Toggle Alternate Catalog Number US2:BQ2B090 ARRA Compliant C Buy American Compliant C Catalog Number BQ2B090 Color Black Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 3 in L x 2 in W x 4 in H EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 38.25 Gross Volume UOM in Gross Weight Per Pack 0.6150 lb Gross Weight per Pack Metric 0.28 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.9720 in Height [Metric] 10.7950 cm Length 2.5620 in Length [Metric] 11.4300 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364310247 UPC 12 783643102477 Width 2.0000 in Width [Metric] 5.0800 cm Wire Size 4 to 1/0 AWG, 2 to 1/0 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 90 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC N/A Lug in/lug out with insta-wire 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ2B090 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQ2B090 |
| Color | Black |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 2 in W x 4 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 38.25 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6150 lb |
| Gross Weight per Pack Metric | 0.28 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.9720 in |
| Height [Metric] | 10.7950 cm |
| Length | 2.5620 in |
| Length [Metric] | 11.4300 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364310247 |
| UPC 12 | 783643102477 |
| Width | 2.0000 in |
| Width [Metric] | 5.0800 cm |
| Wire Size | 4 to 1/0 AWG, 2 to 1/0 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 90 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| N/A |
| Lug in/lug out with insta-wire |
| 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum wire |
