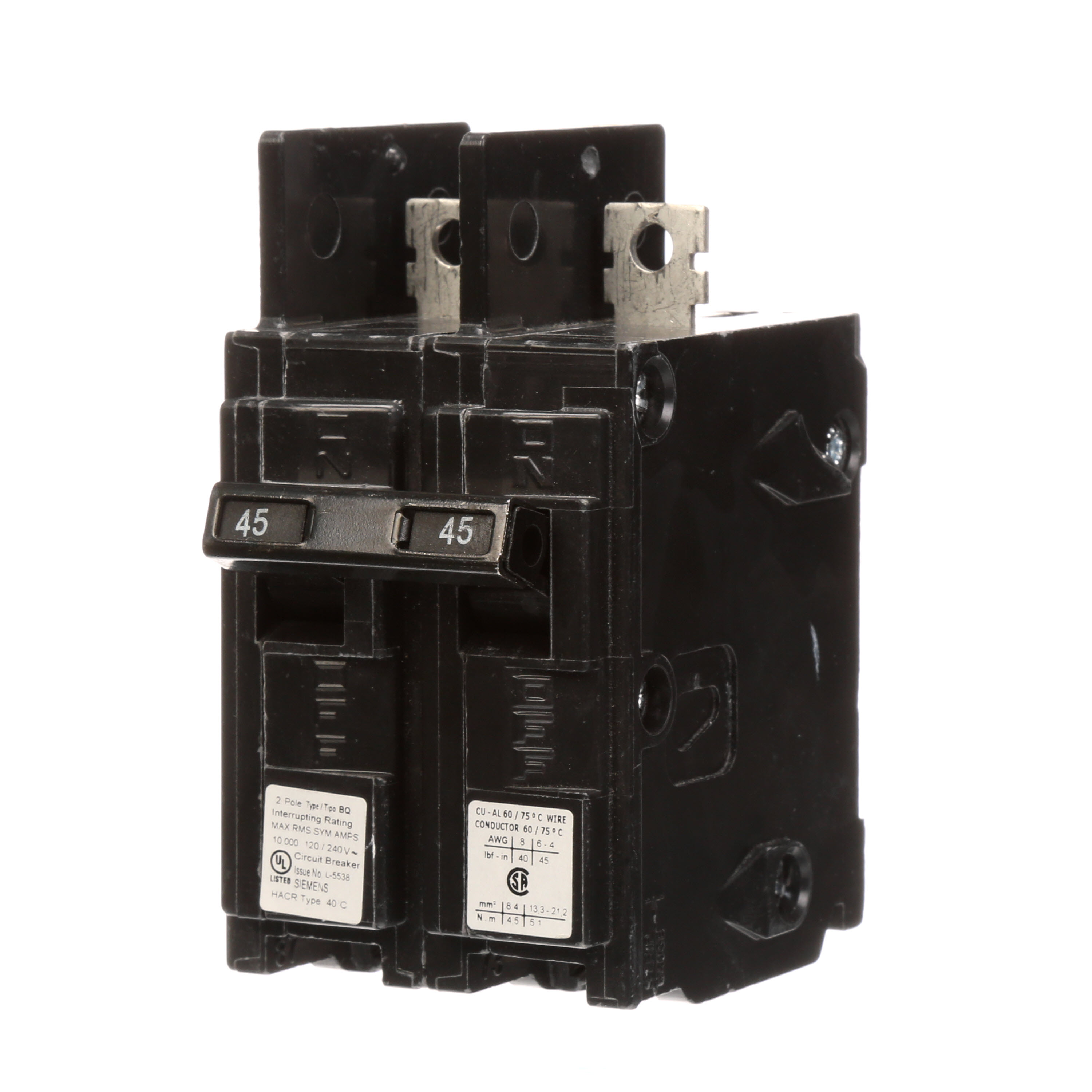

Siemens Speedfax™ BQ2B045 Molded Case Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ BQ2B045 Molded Case Circuit Breaker, 120/240 VAC, 45 A, 10 kA Interrupt, 2 Poles
SKU92946
MFGR #BQ2B045
Your Cost: $166.03/ea
List: Siemens BQ2B045 2P 45A 120/240V CB
Siemens BQ2B045 2P 45A 120/240V CB
Actuator N/A Actuator Type Toggle Alternate Catalog Number US2:BQ2B045 Application Electrical Distribution ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number BQ2B045 Color Black Connection Bolt-on Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 4 in L x 3 in W x 2 in H Enclosure N/A Environmental Conditions N/A EU RoHS Indicator C Frame N/A Frequency Rating 50/60 Hz Gross Volume Per Pack 21.00 Gross Volume UOM in Gross Weight Per Pack 0.6500 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 2.9500 in Height [Metric] 7.4930 cm Length 1.9500 in Length [Metric] 4.9530 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 2 Operating Temperature N/A Phase 1 pH Returnable N Standard UL 489 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Sub Brand N/A Temperature Rating 40 °C Trip Range Thermal Magnetic Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364316121 UPC 12 783643161214 Width 3.6500 in Width [Metric] 9.2710 cm Wire Size 8 to 6 AWG, 8 to 4 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 45 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC Electrical Distribution N/A Sense when an over current occurs Measure the amount of over current ACT by tripping quickly enough to prevent damage to itself and associated conductors Lug in/lug out with insta-wire 8 to 6 AWG copper, 8 to 4 AWG aluminum wire 8 - 6 AWG copper, 8 - 4 AWG aluminum
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | N/A |
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ2B045 |
| Application | Electrical Distribution |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | BQ2B045 |
| Color | Black |
| Connection | Bolt-on |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 3 in W x 2 in H |
| Enclosure | N/A |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | N/A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 21.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6500 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 2.9500 in |
| Height [Metric] | 7.4930 cm |
| Length | 1.9500 in |
| Length [Metric] | 4.9530 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Operating Temperature | N/A |
| Phase | 1 pH |
| Returnable | N |
| Standard | UL 489 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Sub Brand | N/A |
| Temperature Rating | 40 °C |
| Trip Range | Thermal Magnetic |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364316121 |
| UPC 12 | 783643161214 |
| Width | 3.6500 in |
| Width [Metric] | 9.2710 cm |
| Wire Size | 8 to 6 AWG, 8 to 4 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 45 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Electrical Distribution |
| N/A |
| Sense when an over current occurs |
| Measure the amount of over current |
| ACT by tripping quickly enough to prevent damage to itself and associated conductors |
| Lug in/lug out with insta-wire |
| 8 to 6 AWG copper, 8 to 4 AWG aluminum wire |
| 8 - 6 AWG copper, 8 - 4 AWG aluminum |
