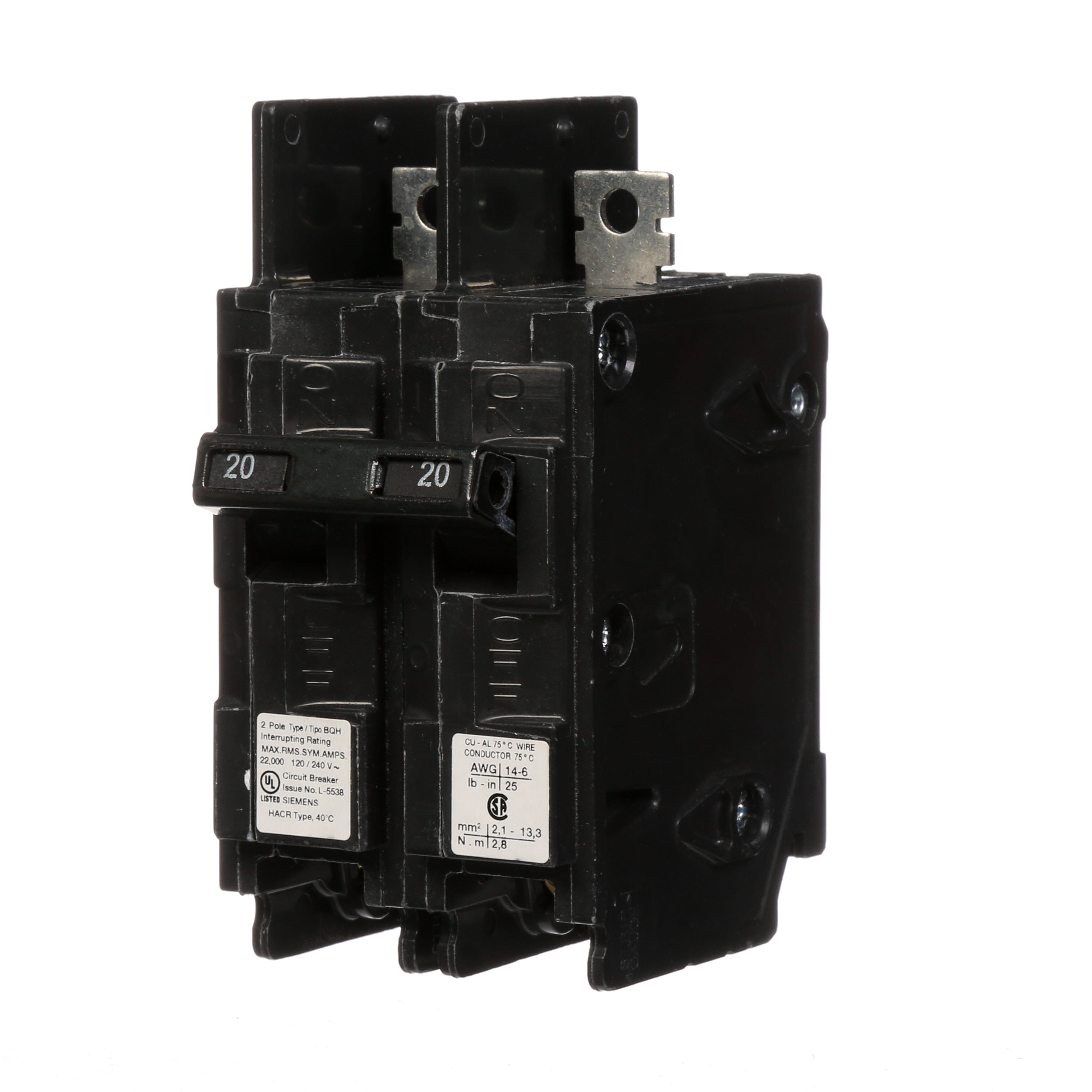

Siemens Speedfax™ BQ2B020H Molded Case Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 2 Poles
Custom_Product_Images_Illustration
Siemens Speedfax™ BQ2B020H Molded Case Circuit Breaker, 120/240 VAC, 20 A, 22 kA Interrupt, 2 Poles
SKU575914
MFGR #BQ2B020H
Your Cost: $308.33/ea
List: Siemens BQ2B020H 2P 20A 120/240V CB
Siemens BQ2B020H 2P 20A 120/240V CB
Actuator N/A Actuator Type Toggle Alternate Catalog Number US2:BQ2B020H Application Electrical Distribution ARRA Compliant C Auxiliary Contacts N/A Buy American Compliant C Catalog Number BQ2B020H Color Black Connection Bolt-on Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 3 in L x 2 in W x 4 in H Enclosure N/A Environmental Conditions N/A EU RoHS Indicator C Frame N/A Frequency Rating 50/60 Hz Gross Volume Per Pack 22.72 Gross Volume UOM in Gross Weight Per Pack 0.6800 lb Gross Weight per Pack Metric 0.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.1240 in Height [Metric] 7.4930 cm Length 2.5620 in Length [Metric] 10.0330 cm Load Rating N/A Material N/A Mounting Type Panel Number Of Poles 2 Operating Temperature N/A Phase 1 pH Returnable Y Standard UL 489 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Sub Brand N/A Temperature Rating 40 °C Trip Range Thermal Magnetic Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364316158 UPC 12 783643161580 Width 2.0000 in Width [Metric] 4.9530 cm Wire Size 14 to 10 AWG, 12 to 10 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC Electrical Distribution N/A Lug in/lug out with insta-wire 14 to 10 AWG copper, 12 to 10 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | N/A |
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ2B020H |
| Application | Electrical Distribution |
| ARRA Compliant | C |
| Auxiliary Contacts | N/A |
| Buy American Compliant | C |
| Catalog Number | BQ2B020H |
| Color | Black |
| Connection | Bolt-on |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 2 in W x 4 in H |
| Enclosure | N/A |
| Environmental Conditions | N/A |
| EU RoHS Indicator | C |
| Frame | N/A |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 22.72 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6800 lb |
| Gross Weight per Pack Metric | 0.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1240 in |
| Height [Metric] | 7.4930 cm |
| Length | 2.5620 in |
| Length [Metric] | 10.0330 cm |
| Load Rating | N/A |
| Material | N/A |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Operating Temperature | N/A |
| Phase | 1 pH |
| Returnable | Y |
| Standard | UL 489 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Sub Brand | N/A |
| Temperature Rating | 40 °C |
| Trip Range | Thermal Magnetic |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364316158 |
| UPC 12 | 783643161580 |
| Width | 2.0000 in |
| Width [Metric] | 4.9530 cm |
| Wire Size | 14 to 10 AWG, 12 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| Electrical Distribution |
| N/A |
| Lug in/lug out with insta-wire |
| 14 to 10 AWG copper, 12 to 10 AWG aluminum wire |
