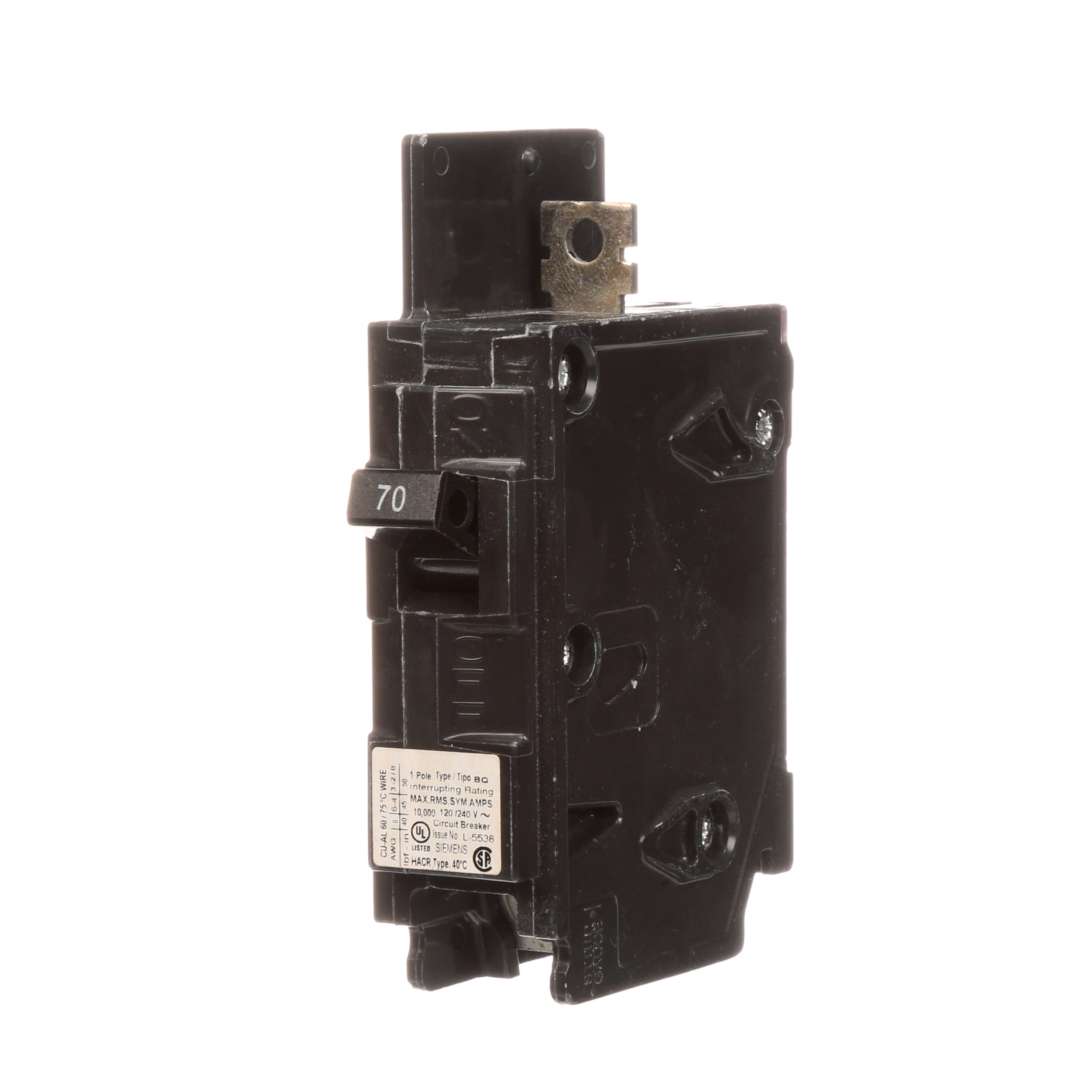

Siemens Speedfax™ BQ1B070 Molded Case Circuit Breaker, 120 VAC, 70 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ BQ1B070 Molded Case Circuit Breaker, 120 VAC, 70 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU505646
MFGR #BQ1B070
Your Cost: $73.67/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Actuator Type Toggle Alternate Catalog Number US2:BQ1B070 ARRA Compliant C Buy American Compliant C Catalog Number BQ1B070 Color Black Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 3 in L x 1 in W x 4 in H EU RoHS Indicator C Gross Volume Per Pack 10.88 Gross Volume UOM in Gross Weight Per Pack 0.3100 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 2.9000 in Height [Metric] 7.3660 cm Length 3.9500 in Length [Metric] 10.0330 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable Y Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 Temperature Rating 40 °C Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364316118 UPC 12 783643161184 Width 0.9500 in Width [Metric] 2.4130 cm Wire Size 8 to 4 AWG, 8 to 2 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 70 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120 VAC Auxiliary Switch 24V Lug in/lug out with insta-wire 8 to 4 AWG copper, 8 to 2 AWG aluminum wire 24 VAC auxiliary switch
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ1B070 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQ1B070 |
| Color | Black |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 1 in W x 4 in H |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 10.88 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3100 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 2.9000 in |
| Height [Metric] | 7.3660 cm |
| Length | 3.9500 in |
| Length [Metric] | 10.0330 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 |
| Temperature Rating | 40 °C |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364316118 |
| UPC 12 | 783643161184 |
| Width | 0.9500 in |
| Width [Metric] | 2.4130 cm |
| Wire Size | 8 to 4 AWG, 8 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 70 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120 VAC |
| Auxiliary Switch 24V |
| Lug in/lug out with insta-wire |
| 8 to 4 AWG copper, 8 to 2 AWG aluminum wire |
| 24 VAC auxiliary switch |
