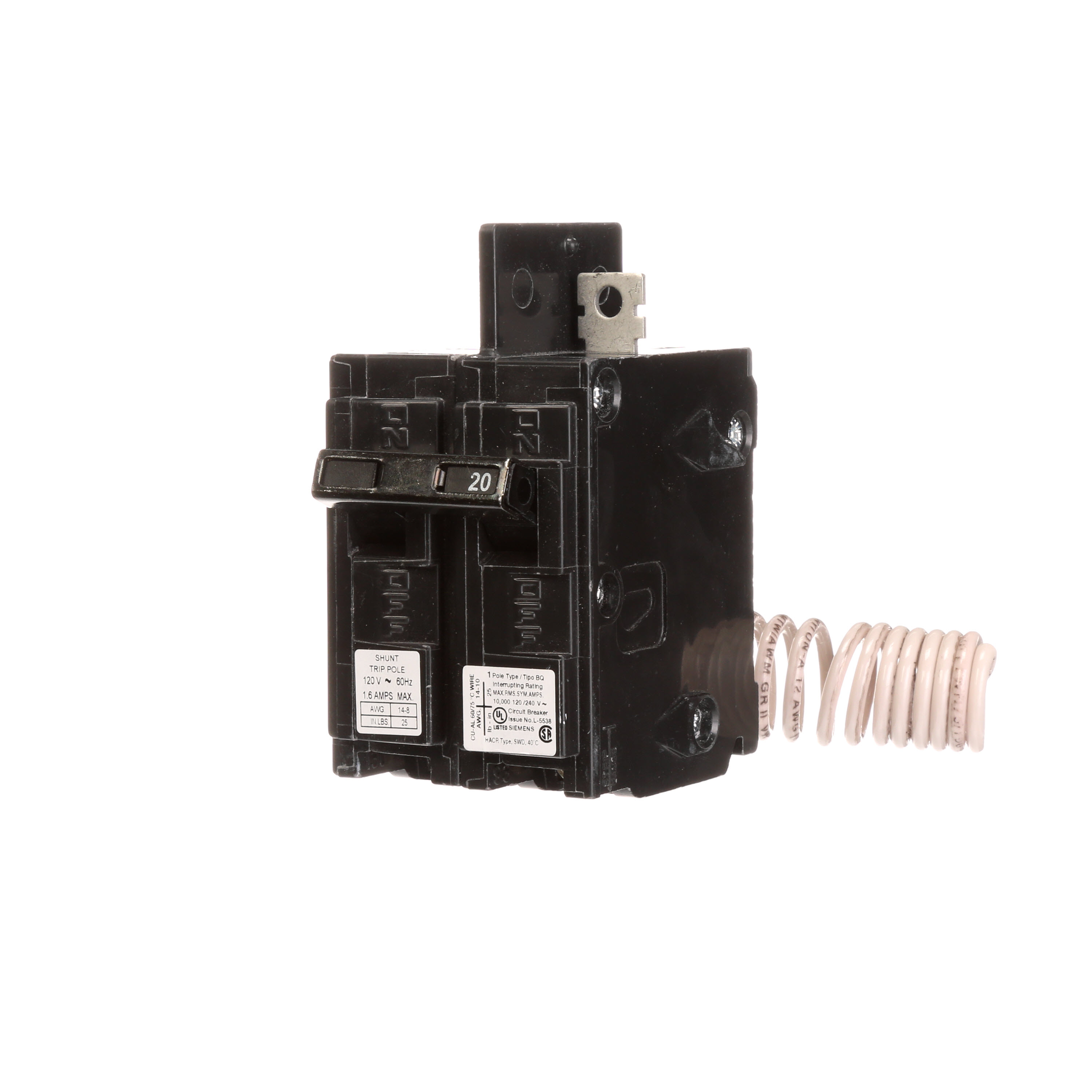

Siemens Speedfax™ BQ1B02000S01 Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Siemens Speedfax™ BQ1B02000S01 Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole
SKU93150
MFGR #BQ1B02000S01
Your Cost: $396.74/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breaker's operating handle restores the circuit.
Actuator Type Toggle Alternate Catalog Number US2:BQ1B02000S01 ARRA Compliant C Buy American Compliant C Catalog Number BQ1B02000S01 Color Black Connection Type Bolt-On/Lug-In/Lug-Out Country of Origin MX Currency USD Dimensions 6 in L x 4 in W x 4 in H EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 96.00 Gross Volume UOM in Gross Weight Per Pack 0.8500 lb Gross Weight per Pack Metric 0.39 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 4.0000 in Height [Metric] 10.1600 cm Length 6.0000 in Length [Metric] 15.2400 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable N Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 Temperature Rating 40 °C Type Type BQ Low Voltage UNSPSC 39121601 UPC 11 78364323770 UPC 12 783643237704 Width 4.0000 in Width [Metric] 10.1600 cm Wire Size 14 to 10 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 10 kA Trip Type Shunt/Thermal Magnetic Voltage Rating 120 VAC Shunt Trip 120V Lug in/lug out with insta-wire 120 VAC shunt trip
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:BQ1B02000S01 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | BQ1B02000S01 |
| Color | Black |
| Connection Type | Bolt-On/Lug-In/Lug-Out |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6 in L x 4 in W x 4 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 96.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.8500 lb |
| Gross Weight per Pack Metric | 0.39 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 4.0000 in |
| Height [Metric] | 10.1600 cm |
| Length | 6.0000 in |
| Length [Metric] | 15.2400 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | N |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 |
| Temperature Rating | 40 °C |
| Type | Type BQ Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364323770 |
| UPC 12 | 783643237704 |
| Width | 4.0000 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 14 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 10 kA |
| Trip Type | Shunt/Thermal Magnetic |
| Voltage Rating | 120 VAC |
| Shunt Trip 120V |
| Lug in/lug out with insta-wire |
| 120 VAC shunt trip |
