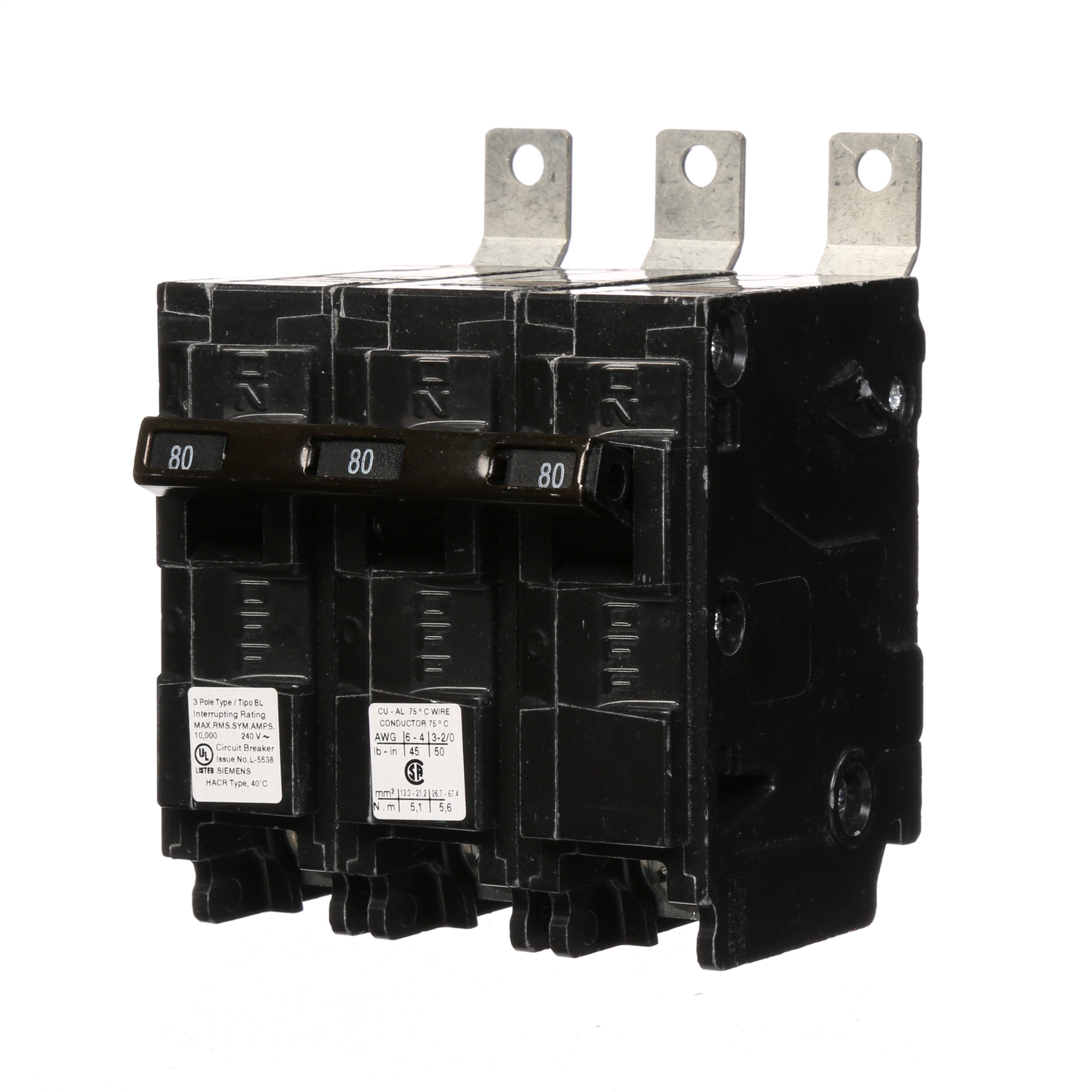

Siemens Speedfax™ B380 Molded Case Circuit Breaker, 240 VAC, 80 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ B380 Molded Case Circuit Breaker, 240 VAC, 80 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU27777
MFGR #B380
Your Cost: $369.54/ea
List: SIEMENS B380 3P 80A CKT BRKR
SIEMENS B380 3P 80A CKT BRKR
Actuator Type Toggle Alternate Catalog Number US2:B380 ARRA Compliant C Buy American Compliant C Catalog Number B380 Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 3 in L x 3 in W x 3 in H EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 56.00 Gross Volume UOM in Gross Weight Per Pack 1.0300 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.5000 in Height [Metric] 8.8900 cm Length 4.0000 in Length [Metric] 10.1600 cm Mounting Type Panel Number Of Poles 3 Phase 3 pH Returnable Y Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type BL Low Voltage UNSPSC 39121601 UPC 11 78364326378 UPC 12 783643263789 Width 4.0000 in Width [Metric] 10.1600 cm Wire Size 4 to 1/0 AWG, 2 to 1/0 AWG Stock Status NORMALLY STOCKED Brand Siemens Manufacturer Siemens Amperage Rating 80 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 240 VAC N/A Sense when an over current occurs Measure the amount of over current Act by tripping quickly enough to prevent damage to itself and associated conductors Mounting with insta-wire 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:B380 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B380 |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 3 in W x 3 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 56.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0300 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.5000 in |
| Height [Metric] | 8.8900 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Mounting Type | Panel |
| Number Of Poles | 3 |
| Phase | 3 pH |
| Returnable | Y |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type BL Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364326378 |
| UPC 12 | 783643263789 |
| Width | 4.0000 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 4 to 1/0 AWG, 2 to 1/0 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 80 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 VAC |
| N/A |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 4 to 1/0 AWG copper, 2 to 1/0 AWG aluminum wire |
