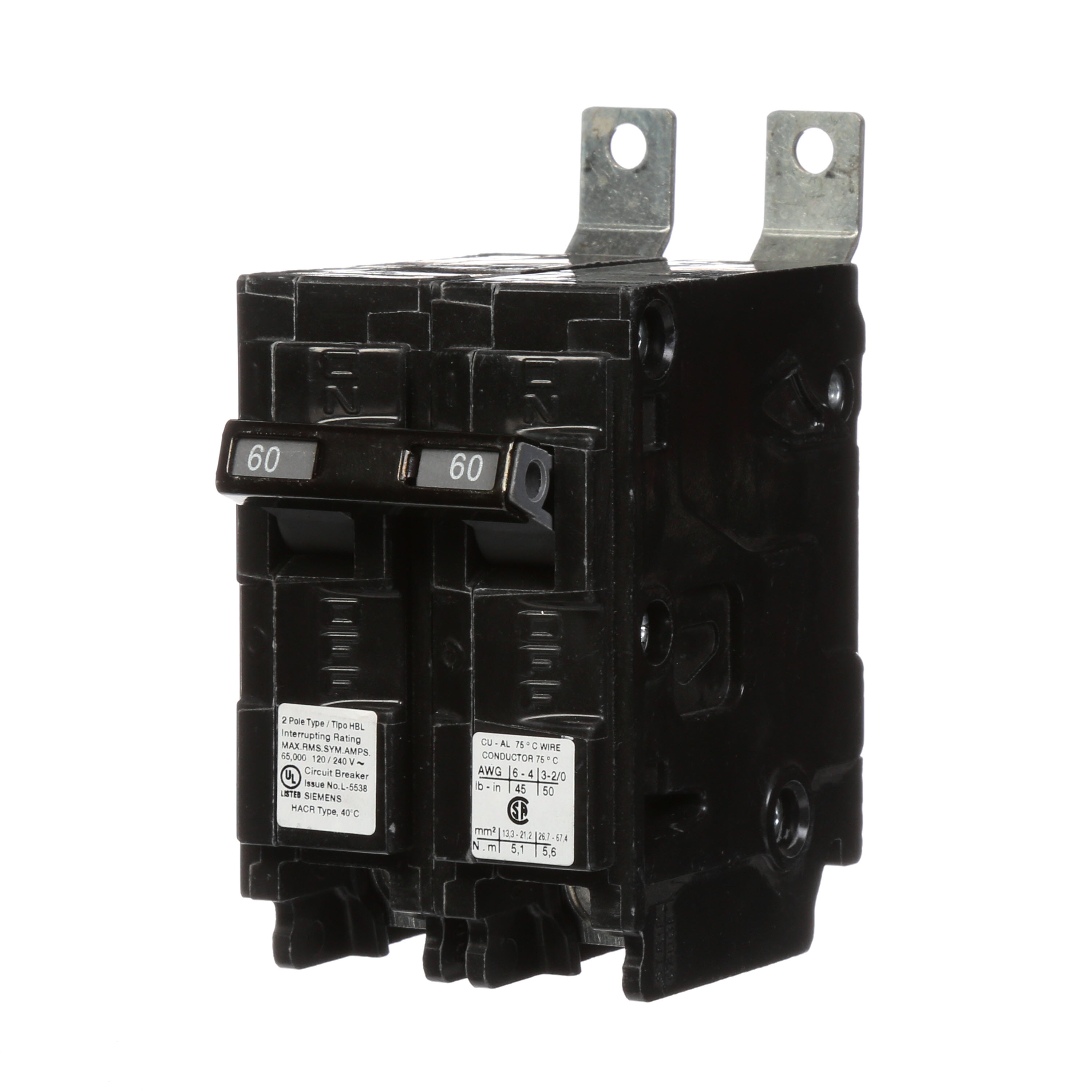

Siemens Speedfax™ B260HH Molded Case Circuit Breaker, 120/240 VAC, 60 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ B260HH Molded Case Circuit Breaker, 120/240 VAC, 60 A, 65 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU290916
MFGR #B260HH
Your Cost: $332.59/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Actuator Type Toggle Alternate Catalog Number US2:B260HH ARRA Compliant C Buy American Compliant C Catalog Number B260HH Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 3 in L x 2 in W x 4 in H EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 35.00 Gross Volume UOM in Gross Weight Per Pack 0.6700 lb Gross Weight per Pack Metric 0.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.5000 in Height [Metric] 8.8900 cm Length 2.5000 in Length [Metric] 6.3500 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable Y Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type HBL Low Voltage UNSPSC 39121601 UPC 11 78364326418 UPC 12 783643264182 Width 4.0000 in Width [Metric] 10.1600 cm Wire Size 8 to 4 AWG, 8 to 2 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 60 A Interrupt Rating 65 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC N/A Sense when an over current occurs Measure the amount of over current Act by tripping quickly enough to prevent damage to itself and associated conductors Mounting with insta-wire 8 to 4 AWG copper, 8 to 2 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:B260HH |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B260HH |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 2 in W x 4 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 35.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.6700 lb |
| Gross Weight per Pack Metric | 0.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.5000 in |
| Height [Metric] | 8.8900 cm |
| Length | 2.5000 in |
| Length [Metric] | 6.3500 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | Y |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type HBL Low Voltage |
| UNSPSC | 39121601 |
| UPC 11 | 78364326418 |
| UPC 12 | 783643264182 |
| Width | 4.0000 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 8 to 4 AWG, 8 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 60 A |
| Interrupt Rating | 65 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| N/A |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 8 to 4 AWG copper, 8 to 2 AWG aluminum wire |
