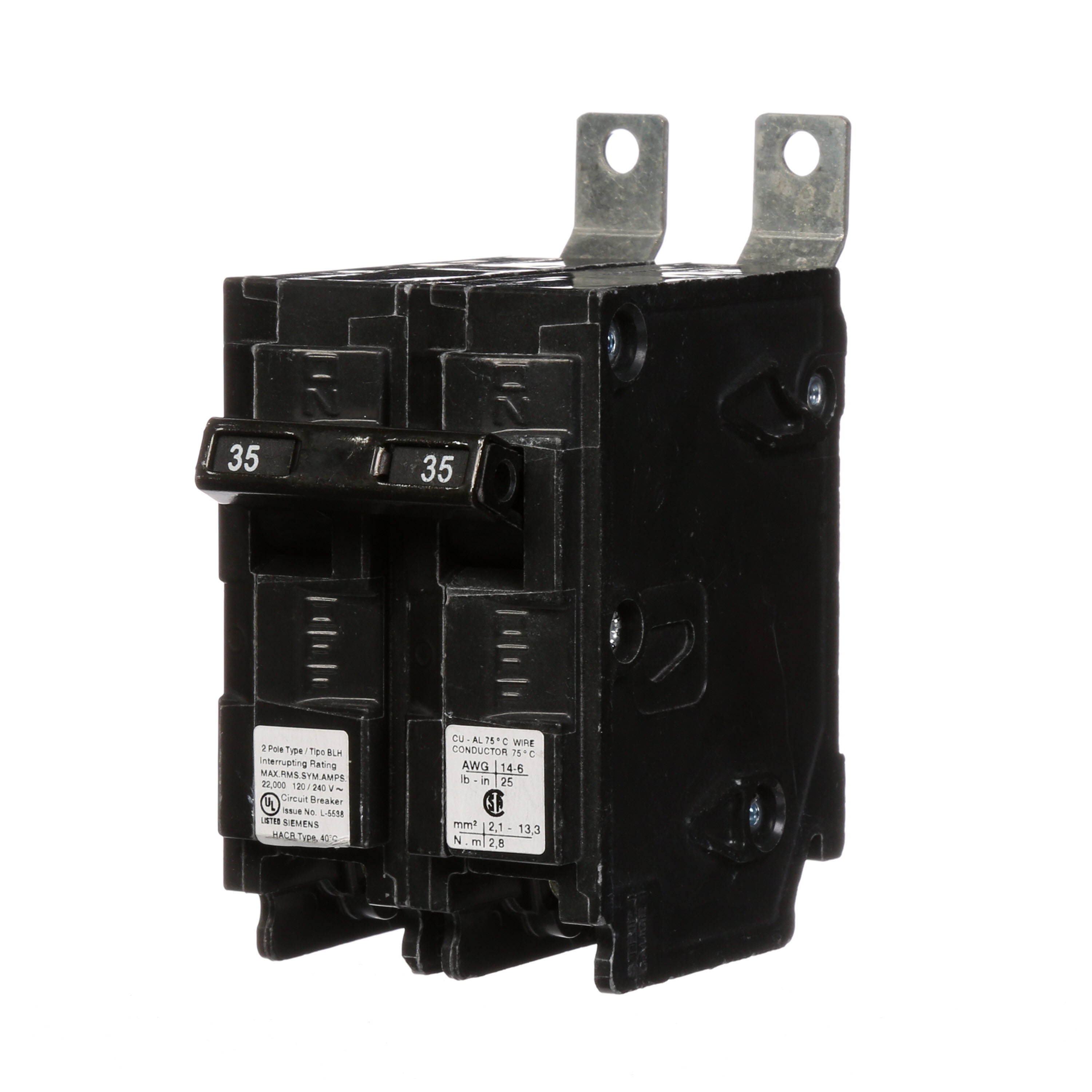

Siemens Speedfax™ B235H Molded Case Circuit Breaker, 120/240 VAC, 35 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ B235H Molded Case Circuit Breaker, 120/240 VAC, 35 A, 22 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU742817
MFGR #B235H
Your Cost: $149.37/ea
List: SIEMENS B235H 2P 35A 120/240V CB
SIEMENS B235H 2P 35A 120/240V CB
Actuator Type Toggle Alternate Catalog Number US2:B235H ARRA Compliant C Buy American Compliant C Catalog Number B235H Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 4 in L x 3 in W x 2 in H EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 35.00 Gross Volume UOM in Gross Weight Per Pack 0.7300 lb Gross Weight per Pack Metric 0.33 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.1240 in Height [Metric] 8.8900 cm Length 2.5620 in Length [Metric] 6.3500 cm Mounting Type Panel Number Of Poles 2 Phase 1 pH Returnable N Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type BLH UNSPSC 39121601 UPC 11 78364308908 UPC 12 783643089082 Width 2.0000 in Width [Metric] 10.1600 cm Wire Size 14 to 6 AWG, 12 to 6 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 35 A Interrupt Rating 22 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC N/A Sense when an over current occurs Measure the amount of over current Act by tripping quickly enough to prevent damage to itself and associated conductors Mounting with insta-wire 14 to 6 AWG copper, 12 to 6 AWG aluminum wire
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:B235H |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B235H |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 4 in L x 3 in W x 2 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 35.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.7300 lb |
| Gross Weight per Pack Metric | 0.33 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.1240 in |
| Height [Metric] | 8.8900 cm |
| Length | 2.5620 in |
| Length [Metric] | 6.3500 cm |
| Mounting Type | Panel |
| Number Of Poles | 2 |
| Phase | 1 pH |
| Returnable | N |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type BLH |
| UNSPSC | 39121601 |
| UPC 11 | 78364308908 |
| UPC 12 | 783643089082 |
| Width | 2.0000 in |
| Width [Metric] | 10.1600 cm |
| Wire Size | 14 to 6 AWG, 12 to 6 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 35 A |
| Interrupt Rating | 22 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| N/A |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 14 to 6 AWG copper, 12 to 6 AWG aluminum wire |
