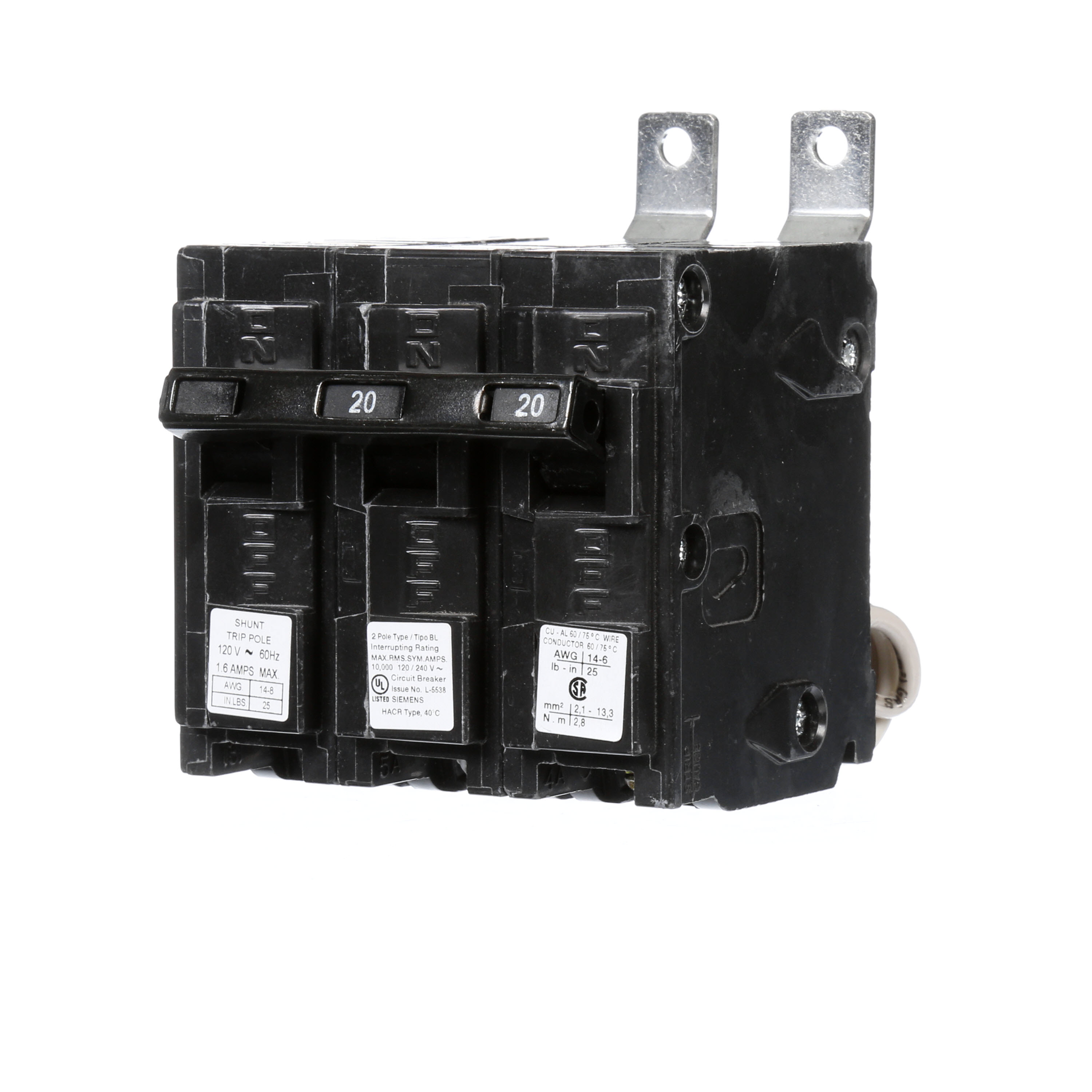

Siemens Speedfax™ B22000S01 Molded Case Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles
Molded Case Circuit Breakers
125317
MFG #: B22000S01
Siemens
247.70000
/ ea
SIEMENS B22000S01 2P 20A CKT BRKR
- Catalog URL - IDW_DOCUMENT_1537663746854.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet 1 URL - ID-SPE-v2-SF17-07-029.pdf(Spec Sheet 1 URL)
- Wiring Diagram URL - SIE_WD_QP-BQ-BL_111128AR10.pdf(Wiring Diagram URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:B22000S01&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| Shunt Trip 120V |
| Sense when an over current occurs |
| Measure the amount of over current |
| Act by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 14 to 10 AWG copper, 12 to 10 AWG aluminum wire |
| 120 VAC shunt trip |
