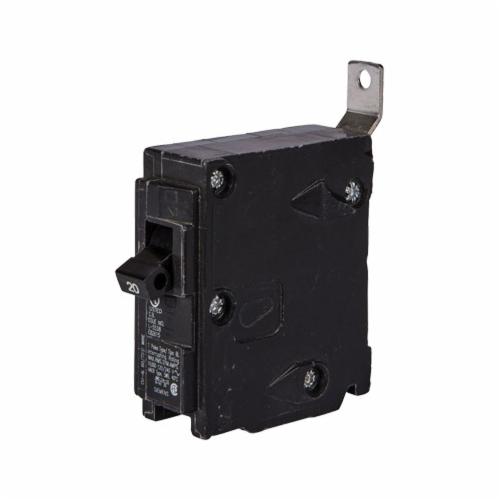

Siemens Speedfax™ B120F Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Siemens Speedfax™ B120F Molded Case Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
SKU448744
MFGR #B120F
Your Cost: $45.84/ea
List: Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Circuit breakers provide a manual means of energizing and de-energizing a circuit. In addition, circuit breakers provide automatic over current protection of a circuit. A circuit breaker allows a circuit to be reactivated quickly after a short circuit or overload is cleared. Unlike fuses, which must be replaced when they open, a simple flip of the breakers operating handle restores the circuit.
Actuator Type Toggle Alternate Catalog Number US2:B120F ARRA Compliant C Buy American Compliant C Catalog Number B120F Connection Type Bolt-On Country of Origin MX Currency USD Dimensions 3 in L x 3 in W x 1 in H EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 12.00 Gross Volume UOM in Gross Weight Per Pack 0.3600 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200020 Height 3.0000 in Height [Metric] 7.6200 cm Length 4.0000 in Length [Metric] 10.1600 cm Mounting Type Panel Number Of Poles 1 Phase 1 pH Returnable N Standard ULLISTED/CSA/NOMCERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated Temperature Rating 40 °C Type Type BL UNSPSC 39121601 UPC 11 78364352887 UPC 12 783643528871 Width 1.0000 in Width [Metric] 2.5400 cm Wire Size 14 to 10 AWG, 12 to 10 AWG Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 20 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120 VAC N/A Sense when an over current occurs Measure the amount of over current ACT by tripping quickly enough to prevent damage to itself and associated conductors Mounting with insta-wire 14 to 10 AWG copper, 12 to 10 AWG aluminum wire Fungus-proof
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Actuator Type | Toggle |
| Alternate Catalog Number | US2:B120F |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | B120F |
| Connection Type | Bolt-On |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 3 in L x 3 in W x 1 in H |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 12.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 0.3600 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200020 |
| Height | 3.0000 in |
| Height [Metric] | 7.6200 cm |
| Length | 4.0000 in |
| Length [Metric] | 10.1600 cm |
| Mounting Type | Panel |
| Number Of Poles | 1 |
| Phase | 1 pH |
| Returnable | N |
| Standard | ULLISTED/CSA/NOMCERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489HACR Rated |
| Temperature Rating | 40 °C |
| Type | Type BL |
| UNSPSC | 39121601 |
| UPC 11 | 78364352887 |
| UPC 12 | 783643528871 |
| Width | 1.0000 in |
| Width [Metric] | 2.5400 cm |
| Wire Size | 14 to 10 AWG, 12 to 10 AWG |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 20 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120 VAC |
| N/A |
| Sense when an over current occurs |
| Measure the amount of over current |
| ACT by tripping quickly enough to prevent damage to itself and associated conductors |
| Mounting with insta-wire |
| 14 to 10 AWG copper, 12 to 10 AWG aluminum wire |
| Fungus-proof |
