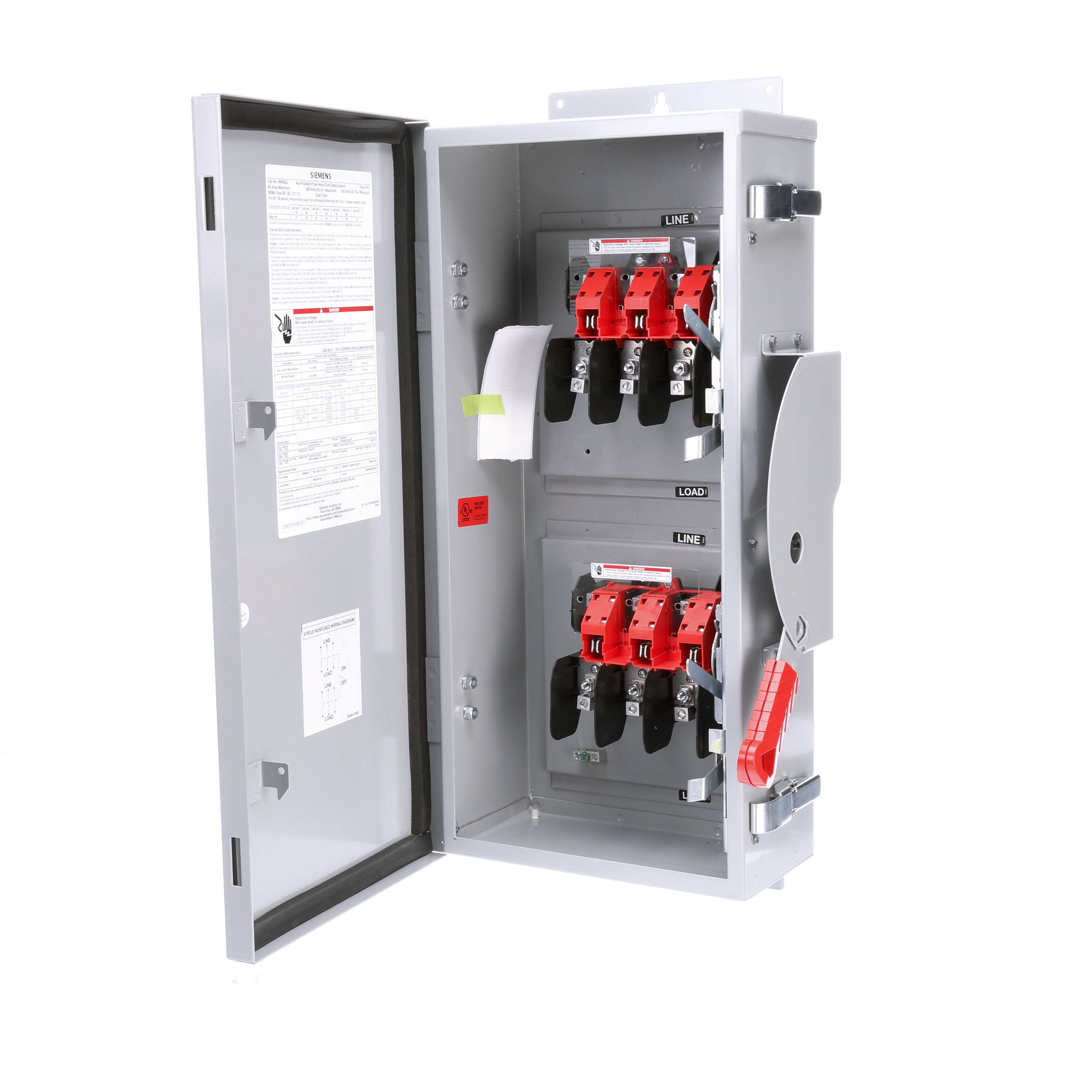

Siemens SpeedFax™ HNF662J Low Voltage Non-Fusible Heavy Duty Safety Switch With Insulation, 600 VAC/VDC, 60 A, 10/60 hp
Custom_Product_Images_Illustration
Siemens SpeedFax™ HNF662J Low Voltage Non-Fusible Heavy Duty Safety Switch With Insulation, 600 VAC/VDC, 60 A, 10/60 hp
SKU206530
MFGR #HNF662J
Your Cost: $3,169.34/ea
List: Siemens SpeedFax™ Heavy Duty Safety Switch, Enclosed Low Voltage Non-Fusible, 600 VAC/VDC, 60 A, 10/60 hp, 3 Phase, 60 Hz, 6 Poles, 6 Wires, 200 kA Short Circuit, 6PST, Lever Actuator, NEMA 3R/12, Surface Mount, Lug Terminal, -20 to 120 deg F, 16.26 in H x 10.43 in W x 10.17 in D, 304 Stainless Steel
Siemens SpeedFax™ Heavy Duty Safety Switch, Enclosed Low Voltage Non-Fusible, 600 VAC/VDC, 60 A, 10/60 hp, 3 Phase, 60 Hz, 6 Poles, 6 Wires, 200 kA Short Circuit, 6PST, Lever Actuator, NEMA 3R/12, Surface Mount, Lug Terminal, -20 to 120 deg F, 16.26 in H x 10.43 in W x 10.17 in D, 304 Stainless Steel
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HNF662J Application DISCONNECTINGMEANFORTWO-SPEED/TWO-WINDINGMOTORS ARRA Compliant C Buy American Compliant C Catalog Number HNF662J Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 16.26 in H x 10.43 in W x 10.17 in D Enclosure NEMA12 Enclosure Type NEMA 12 EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 2456.14 Gross Volume UOM in Gross Weight Per Pack 45.0000 lb Gross Weight per Pack Metric 20.41 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509045 Height 6.4800 in Height [Metric] 16.4592 cm Insulation Type Insulated Length 27.8700 in Length [Metric] 70.7898 cm Material 304 Stainless Steel Mounting Surface Mounting Type Surface Number Of Poles 6 Number of Wires 6 Operating Temperature -29 °C Phase 3 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantcUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Low Voltage Non-Fused UNSPSC 39122205 UPC 11 78364348857 UPC 12 783643488571 Width 13.6000 in Width [Metric] 34.5440 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 60 A Contact Form 6PST Horsepower 10 hp, 60 hp Voltage Rating 600/250 VAC//VDC DISCONNECTINGMEANFORTWO-SPEED/TWO-WINDINGMOTORS Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow ON padlocking Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HNF662J |
| Application | DISCONNECTINGMEANFORTWO-SPEED/TWO-WINDINGMOTORS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HNF662J |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 16.26 in H x 10.43 in W x 10.17 in D |
| Enclosure | NEMA12 |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 2456.14 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 45.0000 lb |
| Gross Weight per Pack Metric | 20.41 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509045 |
| Height | 6.4800 in |
| Height [Metric] | 16.4592 cm |
| Insulation Type | Insulated |
| Length | 27.8700 in |
| Length [Metric] | 70.7898 cm |
| Material | 304 Stainless Steel |
| Mounting | Surface |
| Mounting Type | Surface |
| Number Of Poles | 6 |
| Number of Wires | 6 |
| Operating Temperature | -29 °C |
| Phase | 3 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantcUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Low Voltage Non-Fused |
| UNSPSC | 39122205 |
| UPC 11 | 78364348857 |
| UPC 12 | 783643488571 |
| Width | 13.6000 in |
| Width [Metric] | 34.5440 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 60 A |
| Contact Form | 6PST |
| Horsepower | 10 hp, 60 hp |
| Voltage Rating | 600/250 VAC//VDC |
| DISCONNECTINGMEANFORTWO-SPEED/TWO-WINDINGMOTORS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow ON padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
