Siemens

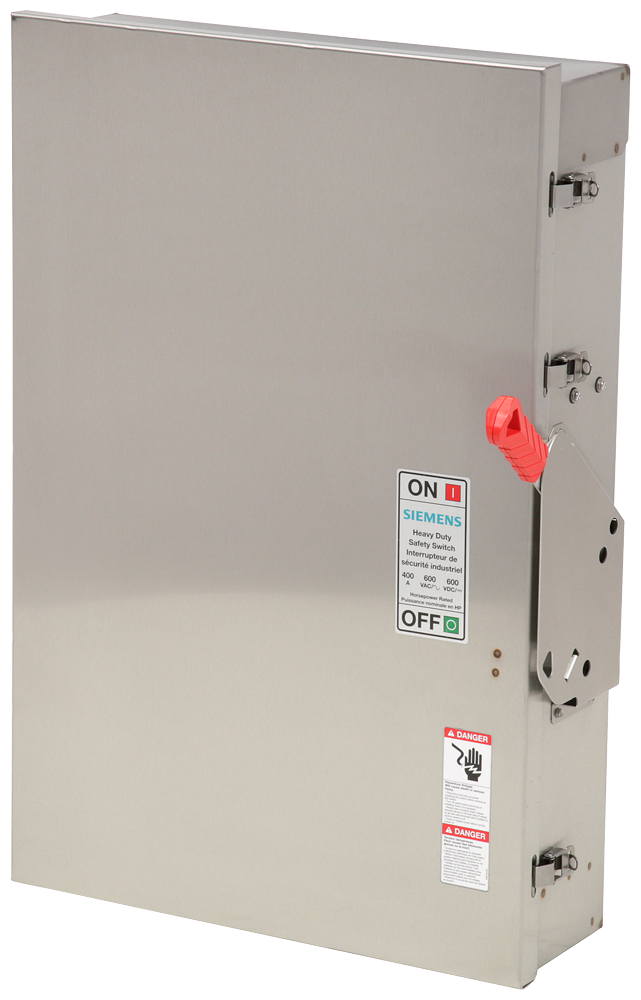

Siemens SpeedFax™ HNF365SA Low Voltage Non-Fusible Heavy Duty Safety Switch, 600 VAC, 400 A, 50 hp, 3 Poles
Custom_Product_Images_Illustration
Siemens
Siemens SpeedFax™ HNF365SA Low Voltage Non-Fusible Heavy Duty Safety Switch, 600 VAC, 400 A, 50 hp, 3 Poles
SKU918130
MFGR #HNF365SA
Your Cost: $7,942.10/ea
List: Siemens SpeedFax™ Heavy Duty Safety Switch, Low Voltage Non-Fusible, 600 VAC, 400 A, 50 hp, 60 Hz, 3 Poles, NEMA 4X, Hole Mount, -20 to 120 deg F, 47.68 in H x 24.82 in W x 14.64 in D, 304 Stainless Steel
Siemens SpeedFax™ Heavy Duty Safety Switch, Low Voltage Non-Fusible, 600 VAC, 400 A, 50 hp, 60 Hz, 3 Poles, NEMA 4X, Hole Mount, -20 to 120 deg F, 47.68 in H x 24.82 in W x 14.64 in D, 304 Stainless Steel
Actuator SINGLETHROW Alternate Catalog Number US2:HNF365SA Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HNF365SA Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 47.68 in H x 24.82 in W x 14.64 in D Enclosure NEMA4X Enclosure Type NEMA 4X EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 5503.02 Gross Volume UOM in Gross Weight Per Pack 75.1550 lb Gross Weight per Pack Metric 34.09 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 33.4700 in Height [Metric] 85.0138 cm Length 7.3400 in Length [Metric] 18.6436 cm Material 304 Stainless Steel Mounting Surface Mounting Type Hole Number Of Poles 3 Operating Cycles 6000 Operating Temperature -29 °C Returnable Y Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 4-04 Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Type Low Voltage Non-Fused UNSPSC 39122205 UPC 11 88762187269 UPC 12 887621872694 Width 22.4000 in Width [Metric] 56.8960 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 400 A Horsepower 50 hp Voltage Rating 600 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Heavy Duty Safety Switches 200 - 1200 amp Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow ON padlocking Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | SINGLETHROW |
| Alternate Catalog Number | US2:HNF365SA |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HNF365SA |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 47.68 in H x 24.82 in W x 14.64 in D |
| Enclosure | NEMA4X |
| Enclosure Type | NEMA 4X |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 5503.02 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 75.1550 lb |
| Gross Weight per Pack Metric | 34.09 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 33.4700 in |
| Height [Metric] | 85.0138 cm |
| Length | 7.3400 in |
| Length [Metric] | 18.6436 cm |
| Material | 304 Stainless Steel |
| Mounting | Surface |
| Mounting Type | Hole |
| Number Of Poles | 3 |
| Operating Cycles | 6000 |
| Operating Temperature | -29 °C |
| Returnable | Y |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCSA C22.2 No. 4-04 |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Type | Low Voltage Non-Fused |
| UNSPSC | 39122205 |
| UPC 11 | 88762187269 |
| UPC 12 | 887621872694 |
| Width | 22.4000 in |
| Width [Metric] | 56.8960 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 400 A |
| Horsepower | 50 hp |
| Voltage Rating | 600 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Heavy Duty Safety Switches 200 - 1200 amp |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow ON padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
