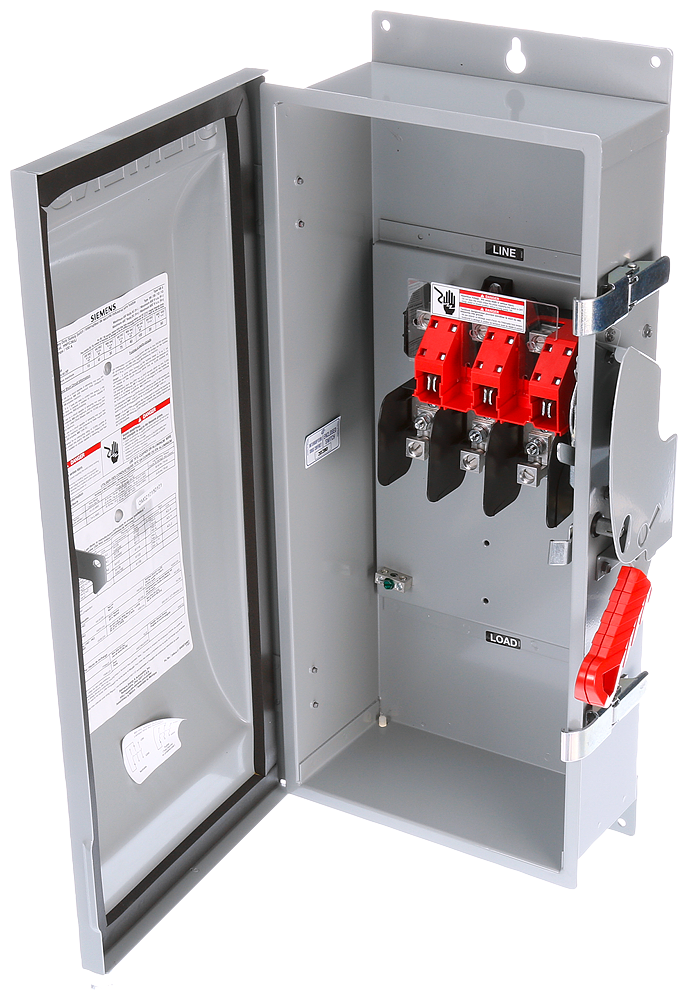

Siemens SpeedFax™ HNF363J Low Voltage Non-Fusible Heavy Duty Safety Switch With Insulation, 600 VAC, 100 A, 100 hp
Custom_Product_Images_Illustration
Siemens SpeedFax™ HNF363J Low Voltage Non-Fusible Heavy Duty Safety Switch With Insulation, 600 VAC, 100 A, 100 hp
SKU571700
MFGR #HNF363J
Your Cost: $704.26/ea
List: SIEMENS HNF363J 3P 600V 100A SFTY SW
SIEMENS HNF363J 3P 600V 100A SFTY SW
Actuator SINGLETHROW Actuator Type Lever Operated Alternate Catalog Number US2:HNF363J Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HNF363J Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 25 in H x 10.43 in W x 10.46 in D Enclosure NEMA12 Enclosure Type NEMA 12 EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 3360.01 Gross Volume UOM in Gross Weight Per Pack 25.0000 lb Gross Weight per Pack Metric 11.34 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 8.4000 in Height [Metric] 21.3360 cm Insulation Type Insulated Length 28.1000 in Length [Metric] 71.3740 cm Material Steel Mounting Surface Mounting Type 2/3-Point Hole Number Of Poles 3 Number of Wires 3 Operating Temperature -29 °C Phase 3 Returnable Y Short Circuit Current Rating 200 kA Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed Sub Brand VBII Switch Type SINGLETHROW Temperature Rating -20 to 120 °F Terminal Type Lug Type Enclosed Heavy Duty Low Voltage Non-Fused UNSPSC 39122205 UPC 11 78364315192 UPC 12 783643151925 Width 14.7000 in Width [Metric] 37.3380 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 100 A Contact Form TPST Horsepower 100 hp Voltage Rating 600 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow on padlocking Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | SINGLETHROW |
| Actuator Type | Lever Operated |
| Alternate Catalog Number | US2:HNF363J |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HNF363J |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 25 in H x 10.43 in W x 10.46 in D |
| Enclosure | NEMA12 |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 3360.01 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 25.0000 lb |
| Gross Weight per Pack Metric | 11.34 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 8.4000 in |
| Height [Metric] | 21.3360 cm |
| Insulation Type | Insulated |
| Length | 28.1000 in |
| Length [Metric] | 71.3740 cm |
| Material | Steel |
| Mounting | Surface |
| Mounting Type | 2/3-Point Hole |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Operating Temperature | -29 °C |
| Phase | 3 |
| Returnable | Y |
| Short Circuit Current Rating | 200 kA |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL Listed |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Temperature Rating | -20 to 120 °F |
| Terminal Type | Lug |
| Type | Enclosed Heavy Duty Low Voltage Non-Fused |
| UNSPSC | 39122205 |
| UPC 11 | 78364315192 |
| UPC 12 | 783643151925 |
| Width | 14.7000 in |
| Width [Metric] | 37.3380 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 100 A |
| Contact Form | TPST |
| Horsepower | 100 hp |
| Voltage Rating | 600 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
