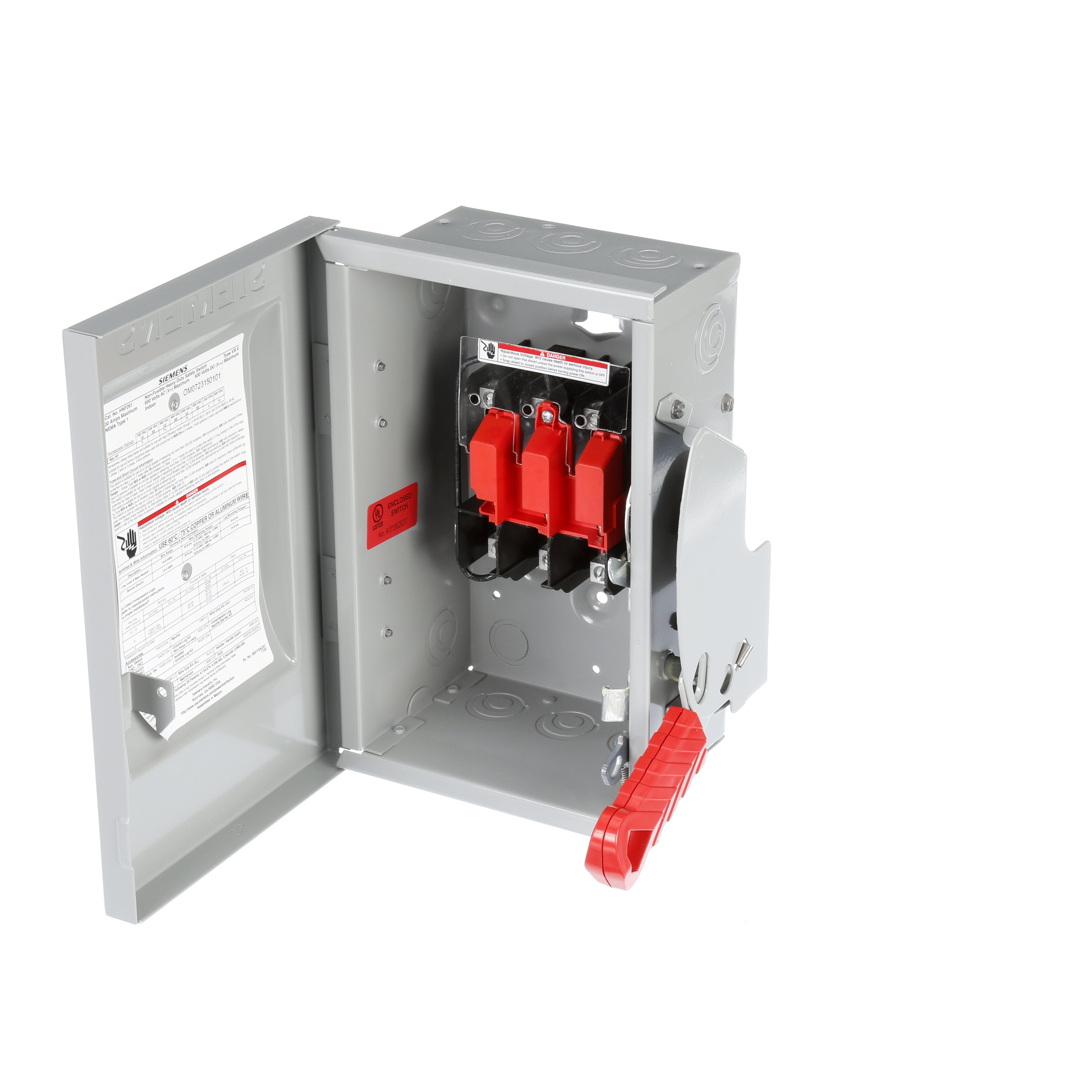

Siemens SpeedFax™ HNF261 Low Voltage Non-Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 30 A, 10 hp, 2 Poles, DPST
Heavy Duty Safety Switches
813711
MFG #: HNF261
Siemens
125.43000
/ ea
SIEMENS HNF261 30A 2P 600V 2W NON-FUSED HD TYPE 1
- Application GDE URL - Siemens_HNF361_Application_Guide.pdf(Application GDE URL)
- Catalog 1 URL - Siemens_HNF364RPVPG_Catalog_1.pdf(Catalog 1 URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Catalog 2 URL - Siemens_HNF361_Application_Guide.pdf(Catalog 2 URL)
- Owners Manual URL - SIE_IM_SwitchMaintenance.pdf(Owners Manual URL)
- Catalog URL - Siemens_HNF363SS_Catalog.pdf(Catalog URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=US2:HNF261&language=en(Spec Sheet URL)
- Spec Sheet 1 URL - Siemens_HNF261_Specification_Sheet.pdf(Spec Sheet 1 URL)
- User Manual URL - man(User Manual URL)
- Applications
- Features
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Visible blade, double break switching action |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow on padlocking |
| Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC® wire bending space requirements |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens past 180 deg for easier wiring |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Front removable mechanical lugs that are suitable for copper aluminum 60 or 75 deg C conductors |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
| Without insulation |
