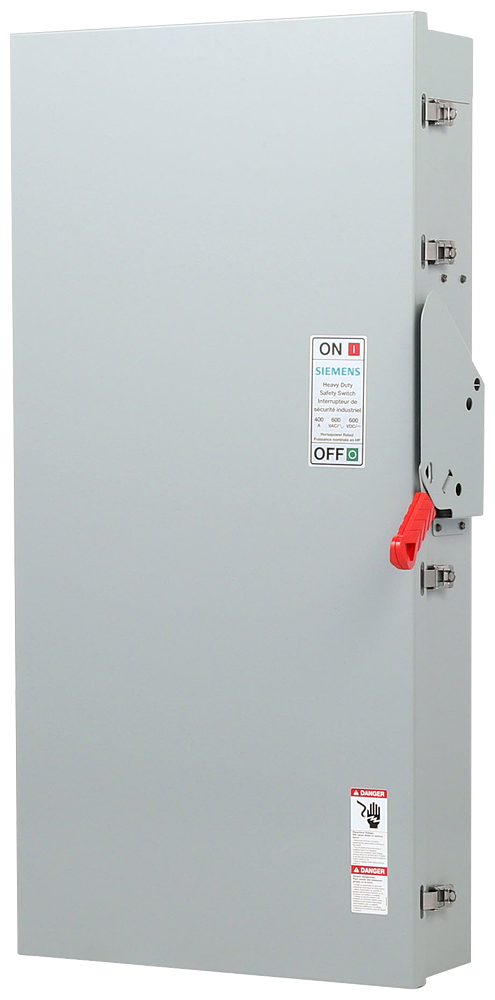

Siemens SpeedFax™ HF365JA Fusible Low Voltage Heavy Duty Safety Switch, 600 VAC, 400 A, 125 hp, 3 Poles
Custom_Product_Images_Illustration
Siemens SpeedFax™ HF365JA Fusible Low Voltage Heavy Duty Safety Switch, 600 VAC, 400 A, 125 hp, 3 Poles
SKU986010
MFGR #HF365JA
Your Cost: $3,065.61/ea
List: Siemens SpeedFax™ Heavy Duty Safety Switch, Fusible Low Voltage, 600 VAC, 400 A, 125 hp, 60 Hz, 3 Poles, NEMA 3R/12, Hole Mount, 56.07 in H x 26 in W x 14.68 in D, Steel
Siemens SpeedFax™ Heavy Duty Safety Switch, Fusible Low Voltage, 600 VAC, 400 A, 125 hp, 60 Hz, 3 Poles, NEMA 3R/12, Hole Mount, 56.07 in H x 26 in W x 14.68 in D, Steel
Actuator SINGLETHROW Alternate Catalog Number US2:HF365JA Application DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS ARRA Compliant C Buy American Compliant C Catalog Number HF365JA Connection MECHANICALLUGS Country of Origin MX Currency USD Dimensions 56.07 in H x 26 in W x 14.68 in D Enclosure NEMA12 Enclosure Type NEMA 12 EU RoHS Indicator C Frequency Rating 60 Hz Gross Volume Per Pack 7075.75 Gross Volume UOM in Gross Weight Per Pack 99.8030 lb Gross Weight per Pack Metric 45.27 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8537109170 Height 45.3200 in Height [Metric] 115.1128 cm Length 6.9700 in Length [Metric] 17.7038 cm Material Steel Mounting Surface Mounting Type Hole Number Of Poles 3 Operating Cycles 6000 Operating Temperature -29 °C Returnable Y Standard UL98 Standards ARRA CompliantBuy American Act CompliantRoHS Compliant Sub Brand VBII Switch Type SINGLETHROW Type Fused Low Voltage UNSPSC 39122205 UPC 11 88762187260 UPC 12 887621872601 Width 22.4000 in Width [Metric] 56.8960 cm Stock Status NONSTOCK Brand Siemens Manufacturer Siemens Amperage Rating 400 A Horsepower 125 hp Voltage Rating 600 VAC DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS Heavy Duty Safety Switches 200 - 1200 amp Quick-make, quick-break operating mechanism that ensures positive operation Visible blade, double break switching action Arc chutes dissipate heat and prolong switch life Highly visible red handle grip designed for hook stick operation Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking Center punch provided for field drilling to allow ON padlocking Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements Informative door labeling which includes replacement parts list Tangential knockouts through 600 A for easy conduit lineup Side hinged door that opens 180 deg for easier wiring Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands Spring reinforced fuse clips that assure reliable contact for cool operation Door latch securely holds door closed and allows cover padlocking Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors Lugs are field convertible to copper body and to a wide variety of compression connectors Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication Drawn cover for increased rigidity and resistance to abuse Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Actuator | SINGLETHROW |
| Alternate Catalog Number | US2:HF365JA |
| Application | DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HF365JA |
| Connection | MECHANICALLUGS |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 56.07 in H x 26 in W x 14.68 in D |
| Enclosure | NEMA12 |
| Enclosure Type | NEMA 12 |
| EU RoHS Indicator | C |
| Frequency Rating | 60 Hz |
| Gross Volume Per Pack | 7075.75 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 99.8030 lb |
| Gross Weight per Pack Metric | 45.27 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8537109170 |
| Height | 45.3200 in |
| Height [Metric] | 115.1128 cm |
| Length | 6.9700 in |
| Length [Metric] | 17.7038 cm |
| Material | Steel |
| Mounting | Surface |
| Mounting Type | Hole |
| Number Of Poles | 3 |
| Operating Cycles | 6000 |
| Operating Temperature | -29 °C |
| Returnable | Y |
| Standard | UL98 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS Compliant |
| Sub Brand | VBII |
| Switch Type | SINGLETHROW |
| Type | Fused Low Voltage |
| UNSPSC | 39122205 |
| UPC 11 | 88762187260 |
| UPC 12 | 887621872601 |
| Width | 22.4000 in |
| Width [Metric] | 56.8960 cm |
| Stock Status | NONSTOCK |
| Brand | Siemens |
| Manufacturer | Siemens |
| Amperage Rating | 400 A |
| Horsepower | 125 hp |
| Voltage Rating | 600 VAC |
| DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS |
| Heavy Duty Safety Switches 200 - 1200 amp |
| Quick-make, quick-break operating mechanism that ensures positive operation |
| Visible blade, double break switching action |
| Arc chutes dissipate heat and prolong switch life |
| Highly visible red handle grip designed for hook stick operation |
| Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking |
| Center punch provided for field drilling to allow ON padlocking |
| Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps |
| Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements |
| Informative door labeling which includes replacement parts list |
| Tangential knockouts through 600 A for easy conduit lineup |
| Side hinged door that opens 180 deg for easier wiring |
| Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands |
| Spring reinforced fuse clips that assure reliable contact for cool operation |
| Door latch securely holds door closed and allows cover padlocking |
| Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors |
| Lugs are field convertible to copper body and to a wide variety of compression connectors |
| Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals |
| Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication |
| Drawn cover for increased rigidity and resistance to abuse |
| Top key hole and bottom mounting holes provide easy 2 or 3-point mounting |
